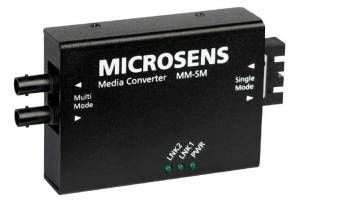

MICROSENS media converter multimode / single-mode transparent, MS

MS410590, media converter multimode / single-mode transparent max. 1:25 Gb / s, including power supply, multi-mode. SC 850nm, single-mode: SC 1310nm Laser min. The MSP 800 Managed Fast Ethernet Bridge Module is an ideal solution for modern network infrastructures relying on fiber optic technology. As demand for bandwidth and flexibility increases, this module addresses the need to convert Twisted Pair connections to fiber optics. Fully integrated into the MSP800 platform, this bridge module is designed for modular 48,3 cm ( 19 inch ) rack systems and offers a wide range of functionalities for LAN, WAN, telecommunications, and industrial applications.

The bridge module is remotely manageable and allows parameter settings either mechanically via DIP switches or through centralized management with the MSP800 management module. It provides high flexibility for multimode or single-mode fiber and supports 10/100Base-TX and 100Base-FX connections. Its robust and efficient design makes it ideal for demanding network environments where reliability and ease of management are essential.

Technical Specifications:

General Features:

• Type: Managed Fast Ethernet Bridge Module
• Supported Standards: 10/100Base-TX (RJ-45), 100Base-FX (duplex, depending on variant)
• Supported Fiber Types:
- Multimode: 50/125 μm or 62.5/125 μm
- Single Mode: 9/125 μm


Networking Functions:

• Management: Requires MSP800 management module (MS416020-B), firmware V2.1Rev0055 or newer
• Configuration: Mechanical (DIP switches) or via network management
• Link Fault Pass Through (LFPT): Activatable via DIP switch

LED Indicators:

• TX (RJ-45): Connection intact / Data transfer (blinking)
• FX (Fiber): Connection intact / Data transfer (blinking)

Power Supply:

• Via MSP800 backplane with integrated fuse

Environmental Conditions:

• Operating temperature: 0 to 55 °C
• Storage temperature: -20 to 80 °C
• Humidity: 5 to 80%, non-condensing

Mechanical Properties:

• Dimensions: 1-slot module for MSP800 chassis

DIP Switch Configuration:

• Speed: 10 or 100 Mbps
• Duplex Mode: Half duplex or full duplex
• LFPT: Link Fault Pass Through activatable
• Management Mode: Manual or software-controlled

Maximum Segment Length:

• Half-Duplex: Reduced by approx. 50 m for fiber connections (signal delay: 50 bit times)
• Full-Duplex: No restrictions on segment length

Ordering Information:

• Multimode (1310 nm, SC duplex): MS416107M-V2
• Single Mode (15 km, SC duplex): MS416206M-V2
• Single Mode (40 km, SC duplex): MS416208M-V2
• Additional variants: ST connectors, simplex or WDM available

Key Features:

• Flexible integration into the MSP800 platform
• Supports industrial and commercial applications
• Ideal for networks with high reliability and scalability requirements
