Microsens media converter multimode / monomode up to 155 MBit/s, protocol transparent, MS410566

Microsens media converter multimode / monomode up to 155 Mbit/s, protocol transparent, MS410566

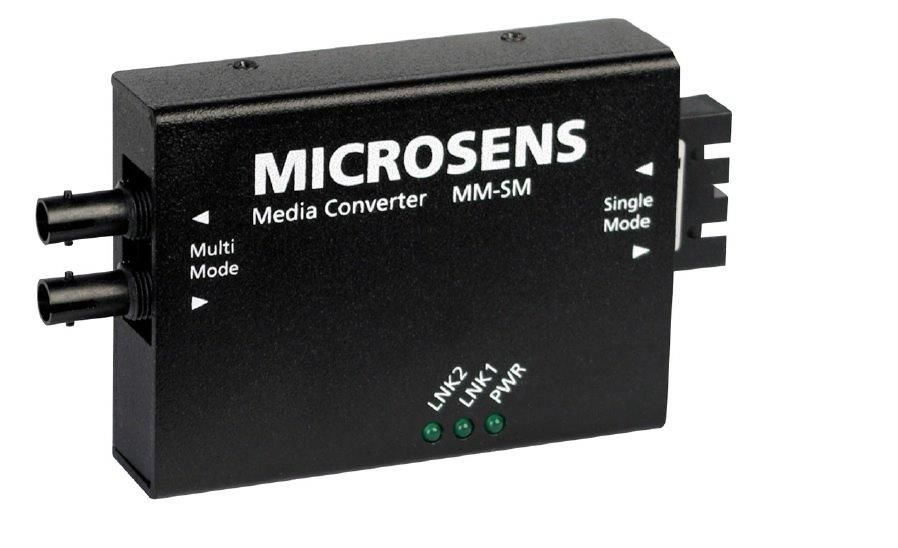

Microsens media converter multimode / monomode up to 155 Mbit/s, protocol transparent, multimode: ST 1310nm <-> monomode: SC 1310nm Optimum utilization of the bandwidth through direct transmission. Bidirectional coupling of multimode and single-mode fibers. Compatible with all common protocol versions with adapted optical budget up to 125 km.MICROSENS' protocol-transparent Multimode (MM) / Singlemode (SM) media converters enable active conversion between Multimode and Monomode cables, regardless of the protocol in use. With a maximum transmission rate of up to 1.25 GBit/s, these converters provide a reliable and versatile solution for various network types, including Ethernet, Fast Ethernet, Gigabit Ethernet, FDDI, MADI, ESCON, as well as STM-1 and STM-4.

The transparent coupling allows direct transmission without protocol conversion, maximizing the bandwidth of the fiber optic link. Monomode fiber is ideal for demanding information services due to its high range and bitrate capabilities. Integrated link transparency ensures that the link status of one segment is passed to the other side (Link Through), enabling reliable communication.

Power is supplied via an external power adapter, which is included in the package. The robust, powder-coated steel housing ensures durability and protection.

Technical Specifications:

• Product Type: Protocol-transparent Multimode/Monomode Converter
• Fiber Types:
- Multimode: 62.5/125 µm or 50/125 µm
- Monomode: 9/125 µm, duplex (depending on variant)

• Data Rates:
- Max. 40 MBit/s (Model: MS410504)
- Max. 155 MBit/s (Models: MS41056x)
- Max. 1.25 GBit/s (Models: MS41059x)

• Cable Type: Shielded Twisted Pair, 100 Ohm, Category 5e
• LED Indicators:
- PWR: Power status
- LNK1: Link status fiber port 1
- LNK2: Link status fiber port 2

• Power Supply: External power adapter (5 V DC, 100–240 V AC, 50/60 Hz)
• Operating Temperature: 0 to 55 °C
• Storage Temperature: -20 to 80 °C
• Humidity: 5% to 80%, non-condensing
• Dimensions: 60 x 23 x 83 mm (W x H x D)
• Optical Parameters:
- Multimode: Wavelength 850 nm, range up to 1.25 GBit/s
- Monomode: Wavelength 1310/1550 nm, range up to 70 km

• Housing Material: Powder-coated steel

Ordering Information:

• Converter, max. 40 MBit/s:
- MM 850 nm ST / SM 1310 nm ST, range 15 km, Part No.: MS410504

• Converter, max. 155 MBit/s:
- Various models with ST/SC connectors, range 15 km, Part Nos.: MS410561 to MS410568

• Converter, max. 1.25 GBit/s:
- MM 850 nm SC / SM 1310 nm SC, range 10–70 km, Part Nos.: MS410590 to MS410595


Applications:


Perfectly suited for networks with diverse fiber optic interfaces and protocols that require a transparent connection between Multimode and Monomode cables, especially for applications involving high data rates over long distances.
