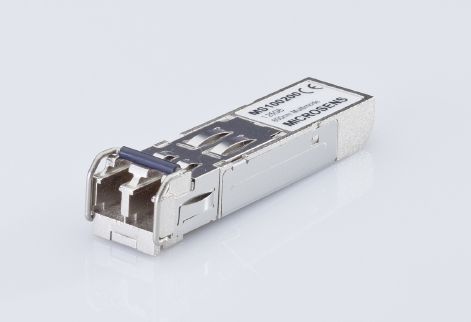

Microsens mini-GBIC, 1000Mbps, SX / LC, MS100200D

The Small Form Factor Pluggable (SFP) transceiver module is a modern and flexible solution for networking applications, providing the highest density per line card. It is specifically designed for 1G-enabled networking devices with SFP slots, offering maximum flexibility in network configurations. With its hot-swap functionality, these modules can be installed or replaced during operation without disrupting the network.

The Low Power SFP models (LPC SFP) deliver the same transmission performance as standard SFPs while consuming only 70% of the electrical power, thanks to optimized circuitry. This results in lower energy consumption and reduced heat generation, making them ideal for energy-efficient network infrastructures. The modules comply with MSA and SFF-8472 standards, ensuring standardized design and compatibility with digital diagnostic functions.

Technical Specifications:

Transceiver Types:

• MS100200DX-V2
• MS100210DX-V2
• MS100221DXA-V2
• MS100221DXB-V2

Connector:

• LC plug (duplex or simplex, depending on the model)

Supported Cable Media:

• Multimode
• Singlemode
• Singlemode simplex

Range:

• 300 m to 20 km (depending on the model)

Power Consumption:

• Max. 0.6 W

Operating Temperature:

• -40 °C to +85 °C

Bandwidth:

• 1.063 Gbps to 1.25 Gbps

Wavelength Range:

• TX: 830–1570 nm (depending on the model)
• RX: 830–1330 nm (depending on the model)

Power Budget:

• 7.5 dB to 15 dB (depending on the model)

Laser Type:

• VCSEL (850 nm)
• FP Laser (1310 nm)
• DFB Laser (1550 nm)

Protocol Support:

• Gigabit Ethernet
• Gigabit Fibre Channel

Features:

• Hot-swappable
• Energy-efficient design (Low Power)
• Digital diagnostic interface (DDM)
• Laser Class 1

Safety Notes:

• Never look directly into optical ports, as visible and invisible light from laser components can cause eye damage.
• Cover unused ports with protective caps.
• Ensure all connections are completed before activating the transmission line.

Ordering Information:

• MS100200DX-V2: LPC SFP GbE Transceiver 1.25G SX, Multimode, 850nm, DDM, LC, -40..+85°C
• MS100210DX-V2: LPC SFP GbE Transceiver 1.25G LX, SingleMode, 1310nm, 10km, DDM, LC, -40..+85°C
• MS100221DXA-V2: LPC SFP GbE WDM Transceiver 1.25G BX, SingleMode TX1310nm / RX1550nm, 20km, DDM, LC simplex, -40..+85°C
• MS100221DXB-V2: LPC SFP GbE WDM Transceiver 1.25G BX, SingleMode TX1550nm / RX1310nm, 20km, DDM, LC simplex, -40..+85°C
