Miboxer UW4-09A-XL LED DMX512 underwater light 9W RGB+WW content_copy

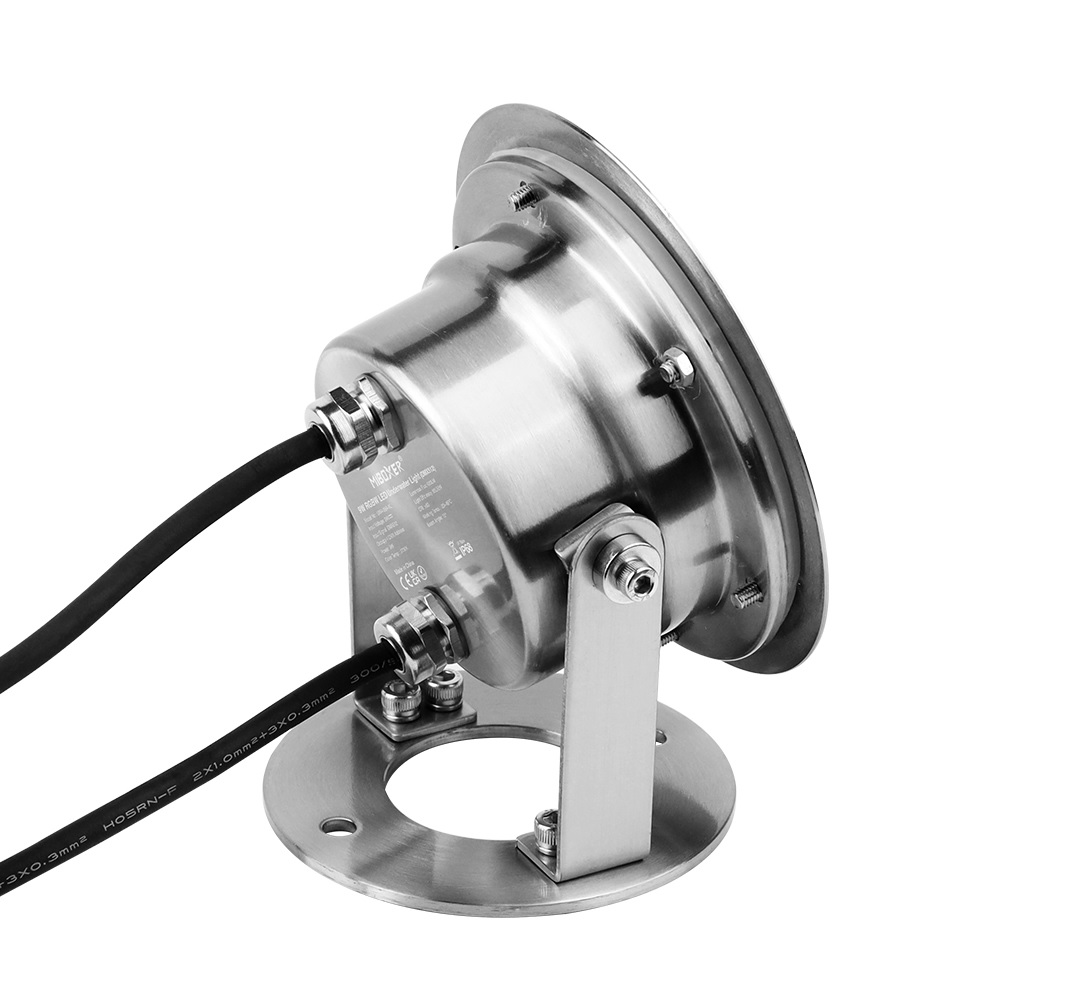

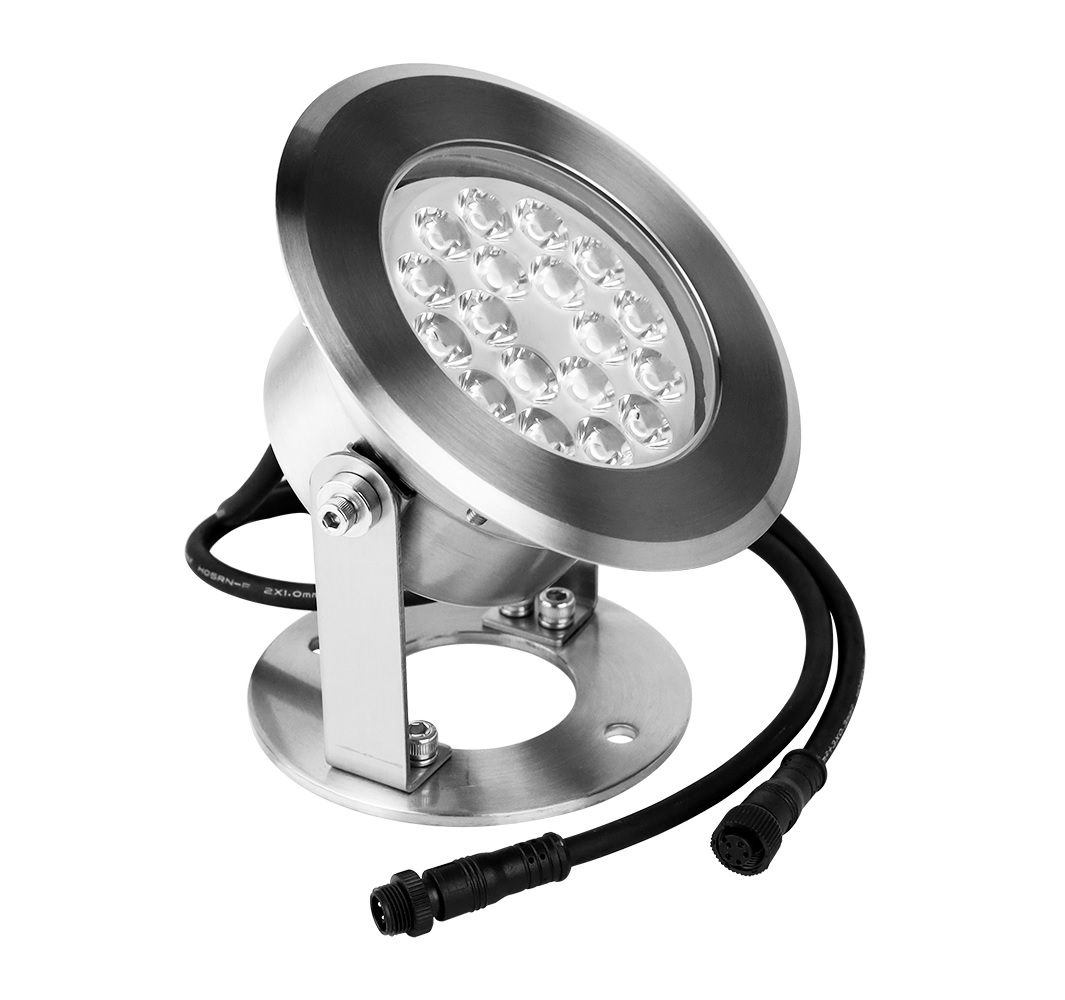

The Miboxer UW4-09A-XL is a 9-watt LED underwater light specifically designed for underwater use and featuring DMX512 control. The device is suitable for decorative lighting in swimming pools, water basins, fountains, or other water installations where a robust, waterproof, and color-variable light source is required. The enclosure is made of stainless steel 304, a high-quality, corrosion-resistant material suitable for use in damp and wet environments. The light produces illumination in the colors red, green, blue, and warm white (2700 K), offering a wide range of color options for creative lighting concepts.

Applications

The UW4-09A-XL is designed for use in water installations where high mechanical and chemical resistance is required. It is particularly suitable for use in private or public swimming pools, water features, garden ponds, fountains, or architectural water installations. The IP68 protection rating ensures the light is dust- and waterproof, even during continuous underwater operation. The operating temperature range of −20 to +45 °C allows use in various climatic conditions, including cooler regions or areas with seasonal temperature fluctuations.

Features and Specifications in Detail

The light has a power consumption of 9 watts and produces a luminous flux of 680 lumens. The color rendering index (CRI) is over 80, meaning colors in the illuminated area appear realistic and natural. The light color includes red, green, blue, and warm white (2700 K) channels, enabling a wide variety of color mixtures and moods. The beam angle is 15°, providing focused, directional light output—ideal for accent lighting or highlighting specific areas in the water.

Technology Explained Simply

Control is achieved via the DMX512 protocol, a standard in professional lighting technology that allows precise and flexible control of lighting effects. Using a DMX controller system, color changes, brightness adjustment, blinking, or fading effects can be programmed. The input voltage is 24 V DC, ensuring safe and efficient power supply. The use of LED technology ensures long service life and low heat generation, enhancing safety and reliability during underwater operation.

Compatibility and Accessories

The light is compatible with DMX512 control devices commonly used in professional lighting. For installation, additional components such as DMX extension cables, 24 V DC power supplies, or underwater connectors are required and are available separately. The use of appropriate cables and connectors is essential to maintain waterproofing and functionality.

Installation and Mounting

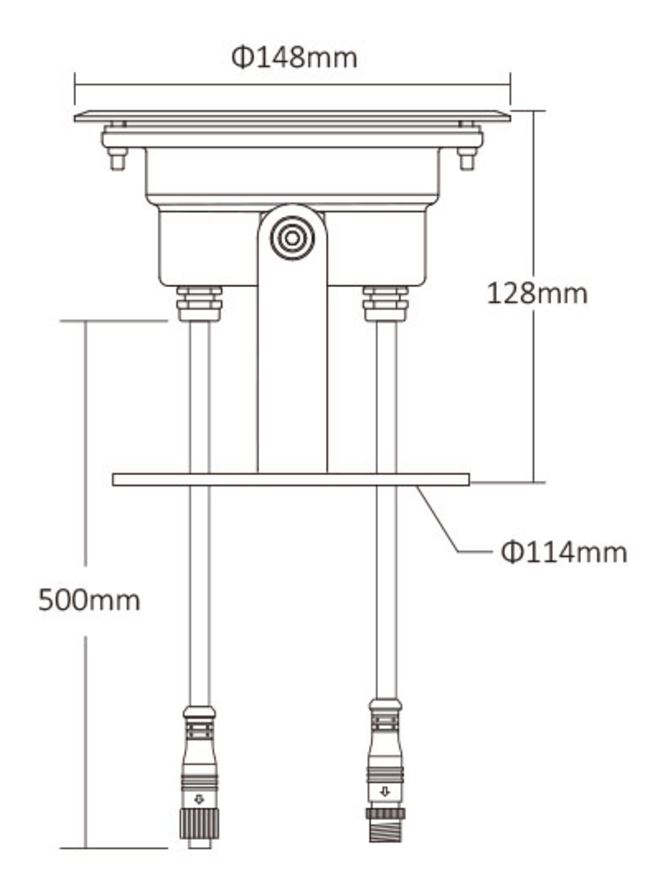

Mounting is typically done directly in the water, for example, in the pool floor or on the wall of a water basin. The stainless steel enclosure allows for robust mounting, with the exact mounting method depending on the specific installation situation. It is important that all connections are waterproof and that power supply is provided via a suitable, waterproof cable. Installation should be carried out by qualified personnel to ensure safety and functionality.

Operational Advantages

The UW4-09A-XL offers high light output with low energy consumption. The combination of DMX512 control and RGBW color mode enables individual lighting design. The IP68 protection rating and stainless steel enclosure ensure high durability and resistance to corrosion and mechanical stress. The operating temperature range of −20 to +45 °C expands the application range to various regions and seasons.
