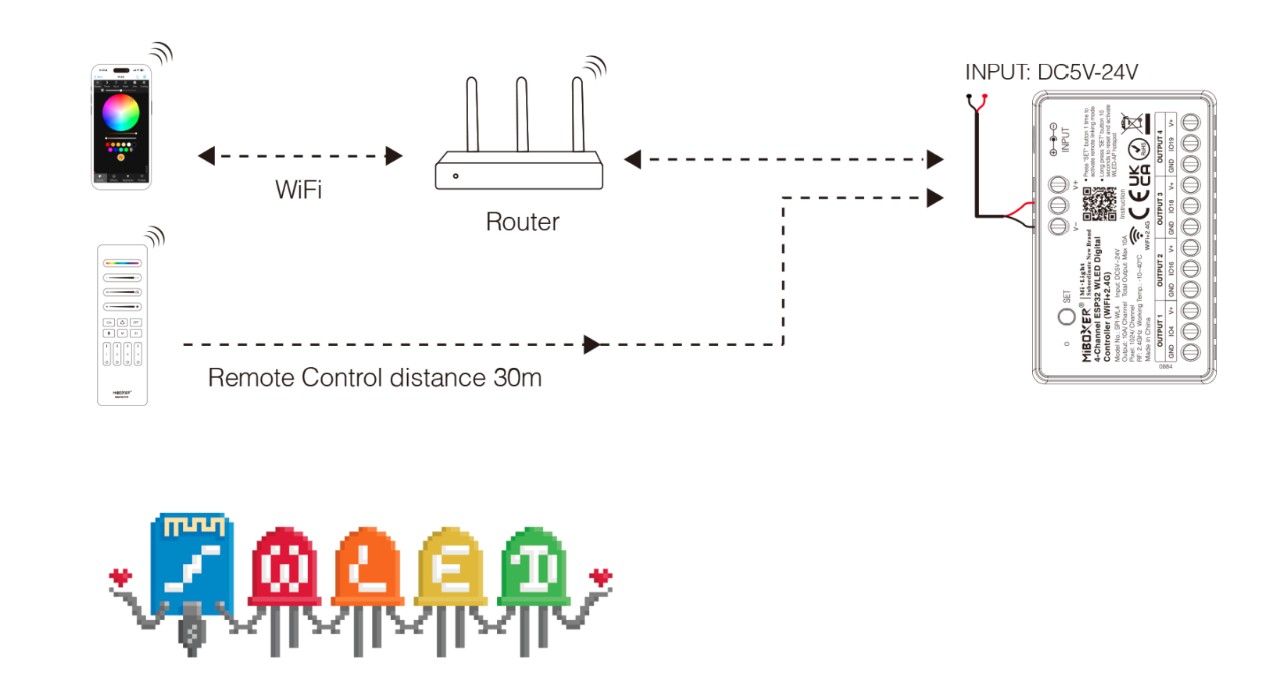

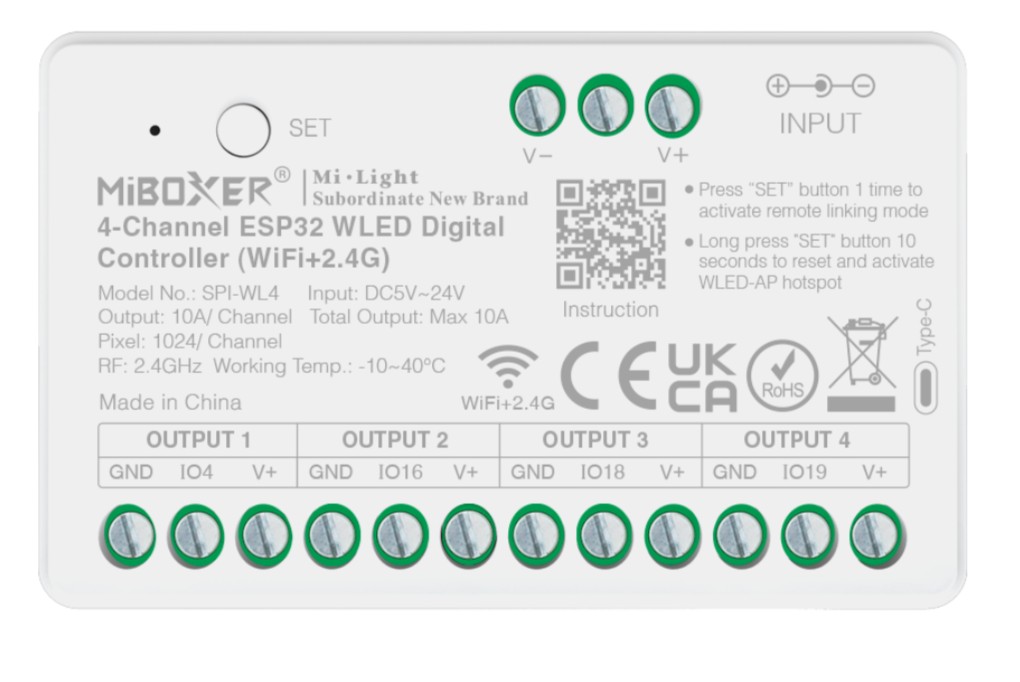

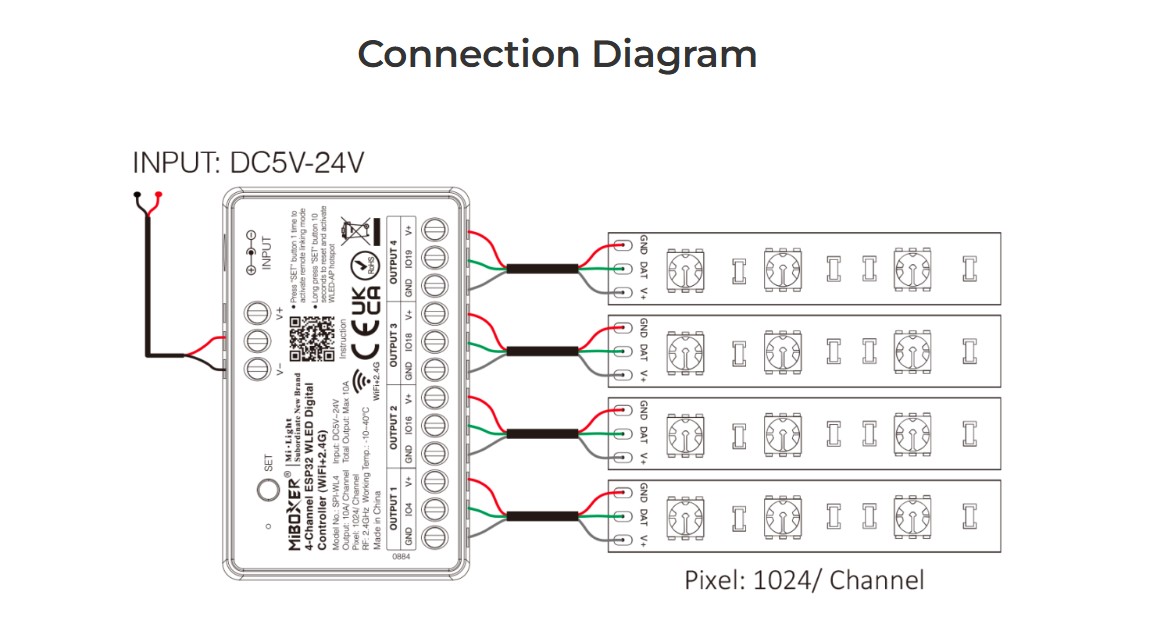

SPI-WL4 4-Channel ESP32 WLED Digital Controller (WiFi+2.4G) • 4-Channel SPI Controller • Support WiFi+2.4G wireless transmitting technology • Built in SPI protocol • Adjust different modes, color, brightness and change dynamic illumination Features SPI-WL4 4-Channel ESP32 WLED Digital Controller (WiFi+2.4G) , compatible with DC5-24V input, specially designed for SPI LED srtrip, support WiFi+2.4GHz wireless technology, It can change dynmaic color, brightness, select dynamic mode and have music function. 4 individual output and control 4 zone SPI led strip independently Pixel Dots: Max 1024/ Channel Output Signal :SPI(TTL) 800Kbs Compatible with single color/CCT/ RGB/ RGBW/ RGB+CCT SPI LED strip light Color, pixel dots, speed, static and dynamic mode, music mode are adjustable Dynamic mode : 28 kinds of white color, 80 kinds of colorful modes, Support to change color, brightness, deepth, speed of all modes 4 kinds of music mode, built in internal microphone and smart phone microphone catch signal Freely switch dynamic or static or music mode Setting boot animation via Tuya Smart App Have DND mode and usual used in power failure area to save power. Compatible chips WS281X, SK6812/WS2814(RGBW), TM1814, 400kHz,TM1829, USC8903, APA106/P L9823, TM1914, FW1906(GRBCW), USC8904(RGBW), SW2805(RGBCW), SM16825(RGBCW), SW2811(White), WS281X(WWA), APA102, LPD8806, LPD6803, PP9813 Parameters Product Name: 4-Channel ESP32 WLED Digital Controller Model No.: SPI-WL4 Input Voltage: DC5V~24V Output Current: Max 10A Pixel: 1024 Pixel/ Channel Standby Power: 0.7W Protocol: WiFi + 2.4GHz RF Control Distance: RF: 30m IP Rate:

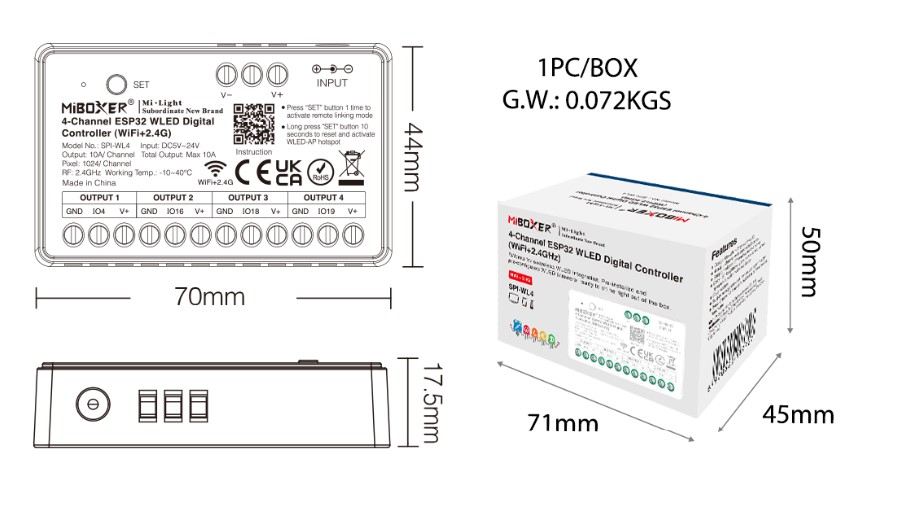

IP20 Working Temperature: -10~40°C Dimension: 70*44*17.5mm EMC Standard (EMC): ETSI EN 301 489-1 V2.2.3 ETSI EN 301 489-17 V3.2.4 Safety Standard (LVD): EN 62368-1 2020+A112020 Radio Equipment (RED): ETSI EN 300 440 V2.2.1 Certification: CE, EMC, LVD, RED Warranty: 5 Years
Questions & answers
What is the delivery time of Miboxer SPI-WL4 LED Pixel LED Controller SPI-Series WLED 2.4 GHz WLAN 4 channels?
The article Miboxer SPI-WL4 LED Pixel LED Controller SPI-Series WLED 2.4 GHz WLAN 4 channels is currently
in stock
According to our experience the article is ready for dispatch within 4 working days.
The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time.
Just send us an inquiry about the desired quantity of Miboxer SPI-WL4 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Miboxer SPI-WL4 LED Pixel LED Controller SPI-Series WLED 2.4 GHz WLAN 4 channels always at the best possible price. We can give you a discount of 2% on
Miboxer SPI-WL4 LED Pixel LED Controller SPI-Series WLED 2.4 GHz WLAN 4 channels if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
