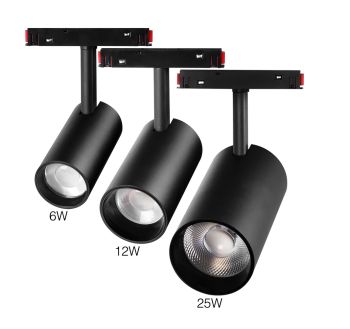

Miboxer MS2-12B-RF LED 48V Track Magnetic Spotlight CCT 2.4G 12W content_copy

The Miboxer MS2-12B-RF is an LED spotlight for 48-volt track lighting systems, specifically designed for use with Powergear 48V tracks. The device features a magnetic mounting system, enabling quick and secure installation on the track without additional brackets or tools. The spotlight is designed for indoor use and offers variable light colour in the range of 2700 to 6500 Kelvin, referred to as CCT (Correlated Color Temperature). The light colour can be individually adjusted via 2.4-GHz wireless control, compatible with Mi-Light / MiBoxer series. Control is wireless with a range of up to 30 metres, allowing flexible and central control of multiple spotlights.

Applications
This spotlight is suitable for use in residential and commercial lighting, particularly in spaces requiring flexible lighting design with variable colour temperature and brightness. The magnetic mounting allows for easy positioning and tilt adjustment, making it ideal for accent lighting, shelf lighting, or as a spotlight in retail environments. The operating temperature range of -10 to +40 degrees Celsius makes it suitable for use in climate-controlled indoor spaces; however, it is not waterproof and therefore not intended for outdoor use or humid areas such as bathrooms.

Functions and Features in Detail
The MS2-12B-RF has a power rating of 12 watts and produces a luminous flux of 1100 lumens, equating to a luminous efficacy of 93 lumens per watt. The beam angle is 60 degrees, providing a focused yet sufficiently wide light distribution. The colour rendering index (CRI) is over 80, ensuring natural and realistic colour representation. The light colour is dimmable, allowing individual adjustment of both brightness and colour temperature.

Technology Explained Simply
The spotlight uses LED technology with an aluminium housing, ensuring efficient heat dissipation and extending the lifespan of the LEDs. The magnetic mounting provides a stable connection to the track, with power supplied through the track. The 2.4-GHz wireless control enables wireless adjustment of light colour and brightness, with a range of up to 30 metres.

Compatibility and Accessories
The spotlight is specifically designed for 48-volt tracks, such as Powergear 48V tracks (e.g., part numbers 233792/233791). Compatible tracks are available in various lengths (1, 2, 3 metres) and types (surface-mounted and recessed tracks, deep) in white and black. The tracks serve as both power supply and mounting element. The wireless control is compatible with Mi-Light / MiBoxer 2.4GHz series, enabling central control of multiple spotlights.

Installation and Mounting
Installation is performed by simply placing the spotlight onto the track, where the magnetic mounting ensures a secure connection. The position and tilt of the spotlight can be individually adjusted during installation.

Operational Advantages
The operation of the spotlight is energy-efficient, achieving a luminous efficacy of 93 lumens per watt at 12 watts. The dimmable light colour and brightness allow for individual lighting design. The magnetic mounting simplifies installation and adjustment, making the spotlight highly flexible. Compatibility with 2.4-GHz wireless controls enables central management of multiple spotlights, simplifying operation. The operating temperature range of -10 to +40 degrees Celsius makes it suitable for use in climate-controlled indoor spaces; however, it is not intended for outdoor use.

Technical data
CRI	&gt80 CRI
Beam angle	60 degrees
LED - housing material	Aluminium
Watt	12 W
Lumens	1100 LM
Light colour in Kelvin	2700~6500 K
Volt	48 Volt
Operation temperature	-10 to +40 °C
Colour housing	Black
Light colour name	CCT
Ampere (CC)	0,25 A
Size	180*63 mm
Dimmable

---
