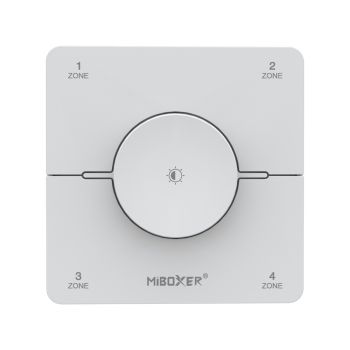

Miboxer KOS-W LED remote control 2.4GHz dual white (CCT) 4 zones rotatable panel (w) content_copy

The Miboxer LED remote control model KOS-W is a 4-zone control device for LED lighting systems, operating wirelessly in the 2.4-GHz band. The device features a rotatable control panel in white and enables stepless control of brightness and color temperature (CCT) in up to four independent lighting zones. It is specifically designed for use in smart home and professional lighting systems, where flexible and intuitive operation is required. The magnetic mounting facilitates installation on various surfaces, allowing for flexible placement within the room.

Applications
This remote control is suitable for a wide range of applications, including living spaces, office and conference areas, retail spaces, hospitality businesses, as well as exhibitions, events, and presentation areas. In these environments, it enables precise adjustment of lighting to match the specific usage scenario, whether for a cozy atmosphere or focused task lighting. The ability to control up to four zones simultaneously or individually offers flexibility in room design and lighting planning.

Functions and Features in Detail
The device includes a rotatable control panel that allows stepless adjustment of brightness and color temperature. The color temperature can be varied between warm white and cool white to create different lighting moods. The remote control supports control of up to four lighting zones, each of which can be controlled individually or collectively. The magnetic mounting allows for easy and flexible installation on metallic surfaces, enabling installation without drilling or gluing.

Technology Explained Simply
Wireless transmission occurs in the 2.4-GHz band with a transmit power of 6 dBm, enabling a range of up to 30 meters. The GFSK (Gaussian Frequency-Shift Keying) modulation method ensures reliable data transmission with low susceptibility to interference. The standby current consumption is only 6 µA, indicating very low energy consumption in standby mode and extending battery life. The operating voltage is 3 volts, supplied by two AAA batteries (not included). The operating temperature ranges from −10 °C to 40 °C, ensuring use in indoor environments under normal conditions.

Compatibility and Accessories
The remote control is compatible with all controllers in the MiBoxer/Mi-Light 2.4 GHz series. Multiple remotes can be assigned and controlled simultaneously, enabling use in larger installations or with multiple users. As an accessory, an LED cable with 2 conductors, 2×1.0 mm, with integrated steel wire, available in pre-terminated form, is available. This cable is suitable for connecting LED modules or strips. Combining it with the remote control can be helpful during LED lighting system installation, especially when mechanical stability and a secure connection are required.

Installation and Mounting
Installation is done via magnetic mounting, allowing quick and residue-free attachment to metallic surfaces. No drilling or gluing is required, making the installation particularly simple and flexible. The remote control can be positioned at various locations in the room to optimize usability.

Operational Advantages
The low standby current consumption of 6 µA ensures long battery life, reducing maintenance needs. The stepless control of brightness and color temperature allows precise adjustment of lighting to match the specific situation. The range of up to 30 meters and compatibility with the entire MiBoxer/Mi-Light 2.4 GHz series expand usage possibilities. The magnetic mounting and rotatable panel increase flexibility in installation and operation.

Certifications
The device complies with CE, EMC, LVD, and RED certifications, confirming conformity with European safety and electromagnetic compatibility directives. These certifications ensure safe and reliable use in both residential and commercial environments.

Package Contents
The remote control is delivered without batteries. The required two AAA batteries must be purchased separately. The device dimensions are 143 mm × 57 mm × 44 mm.
