Miboxer C10-B LED Pixel LED remote control SPI Pixel 2.4GHz RGB/RGB-W/RGB+CCT 4 zones 4 scenes (b)
|
7,96 EUR |
|||||||||||
|
( 9,47 EUR incl. VAT ) ≈ £6.65 | ≈ $8.80 plus delivery charges: 55,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 4 workdaysinfo_outline | |||||||||||
| In Stock: >50 pieces | |||||||||||
| Lieske Part No.: | 823065 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | C10-B | ||||||||||
| UPC/EAN: | 4038816252203 | ||||||||||
| Weight: | 0.075 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Miboxer C10-B:
Applications
The C10-B is suitable for controlling LED lighting systems operated via SPI controllers, particularly in applications with multiple lighting zones. It is ideal for creative lighting installations requiring color changes, brightness control, and dynamic effects. The remote control can be used indoors and in protected outdoor areas, as it is designed for operating temperatures from -10 to +40 degrees Celsius.
Functions and Features in Detail

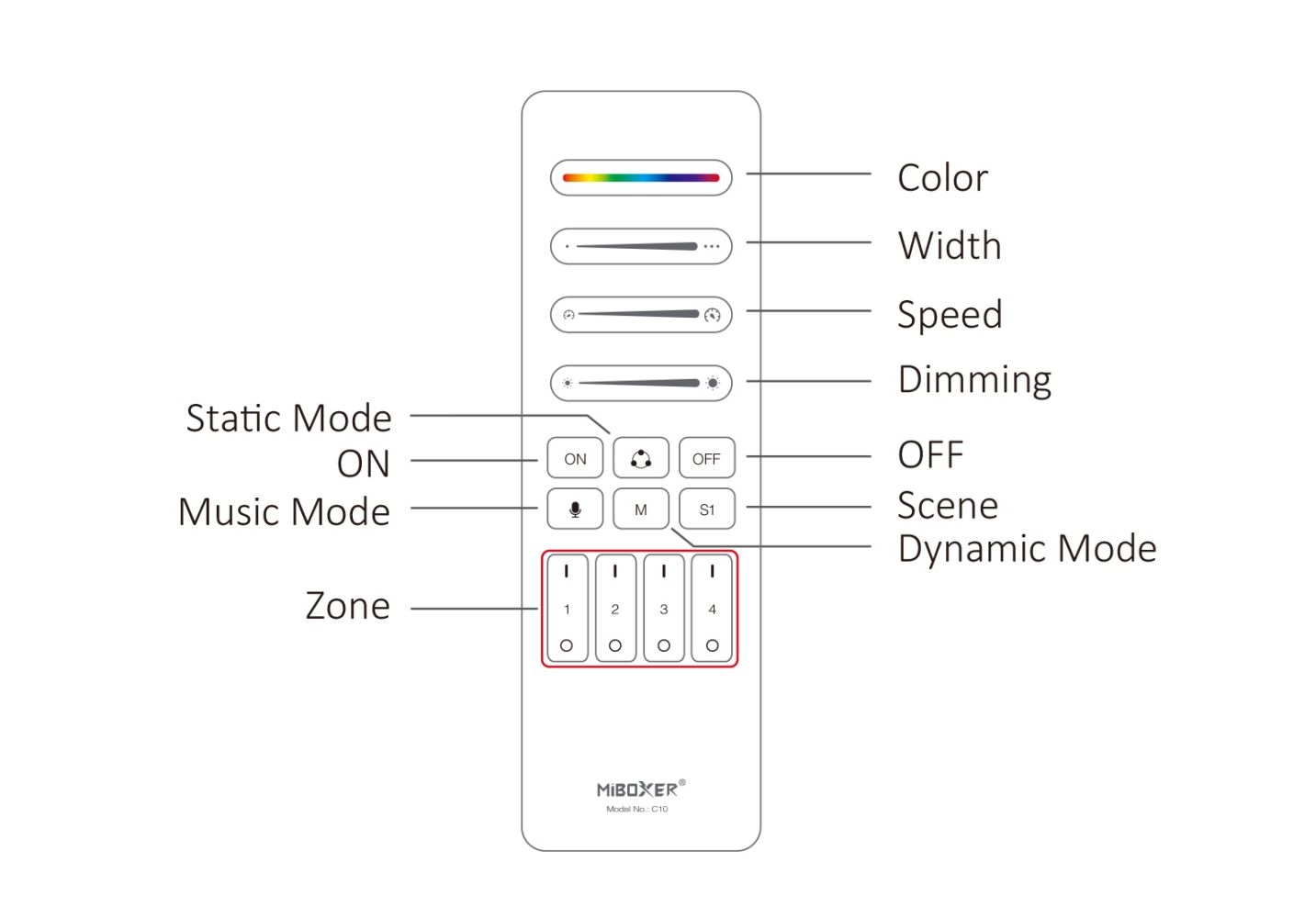

The remote control enables simultaneous control of up to four independent lighting zones. Color, brightness, pixel count, and speed of lighting effects can be individually adjusted. Dynamic, static, and music modes are available to create different lighting moods. Up to four individual scenes can be saved to quickly restore favorite lighting configurations. The magnetic mounting facilitates placement on metallic surfaces, such as devices or wall brackets.
Technology Explained Simply
The C10-B operates using 2.4GHz RF wireless technology, offering high interference resistance and a range of up to 30 meters. Modulation is performed using the GFSK method, ensuring reliable data transmission. The operating voltage is 3 volts, supplied by two AAA batteries. The standby current consumption is 15 µA, indicating an energy-efficient design. The transmission power is 6 dBm, sufficient for adequate range in typical indoor and outdoor environments.
Compatibility and Accessories
The remote control is designed for SPI-LED controllers supporting RGB, RGB-W, or RGB+CCT functions. It is specifically designed for systems requiring control of 4 independent zones. Compatibility is limited to devices using the SPI protocol.
Mounting and Installation

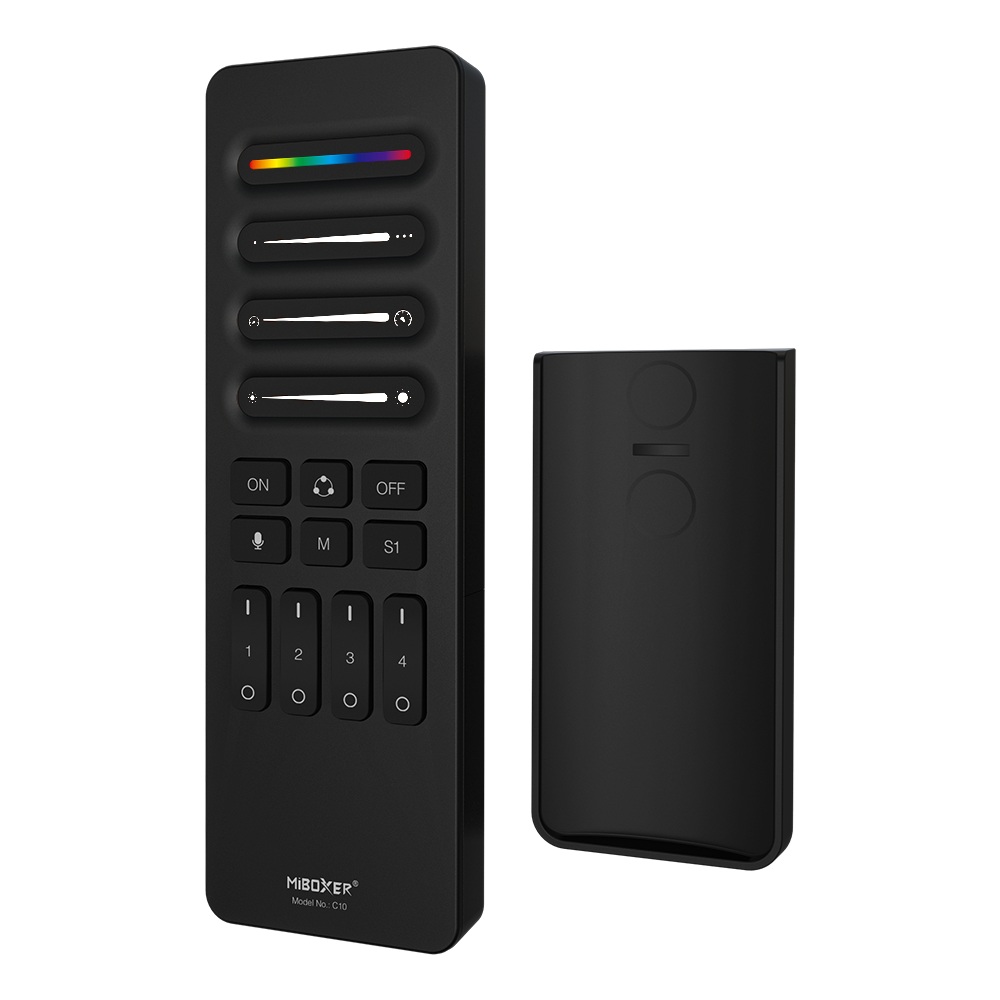

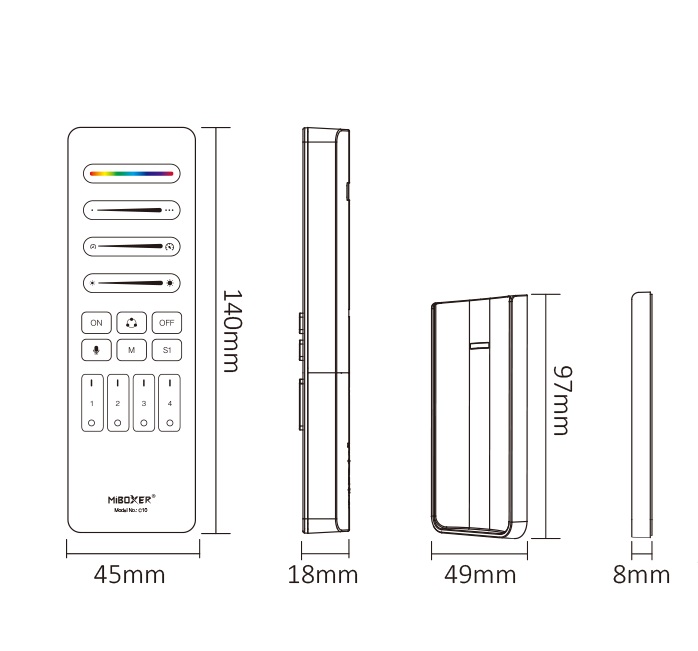

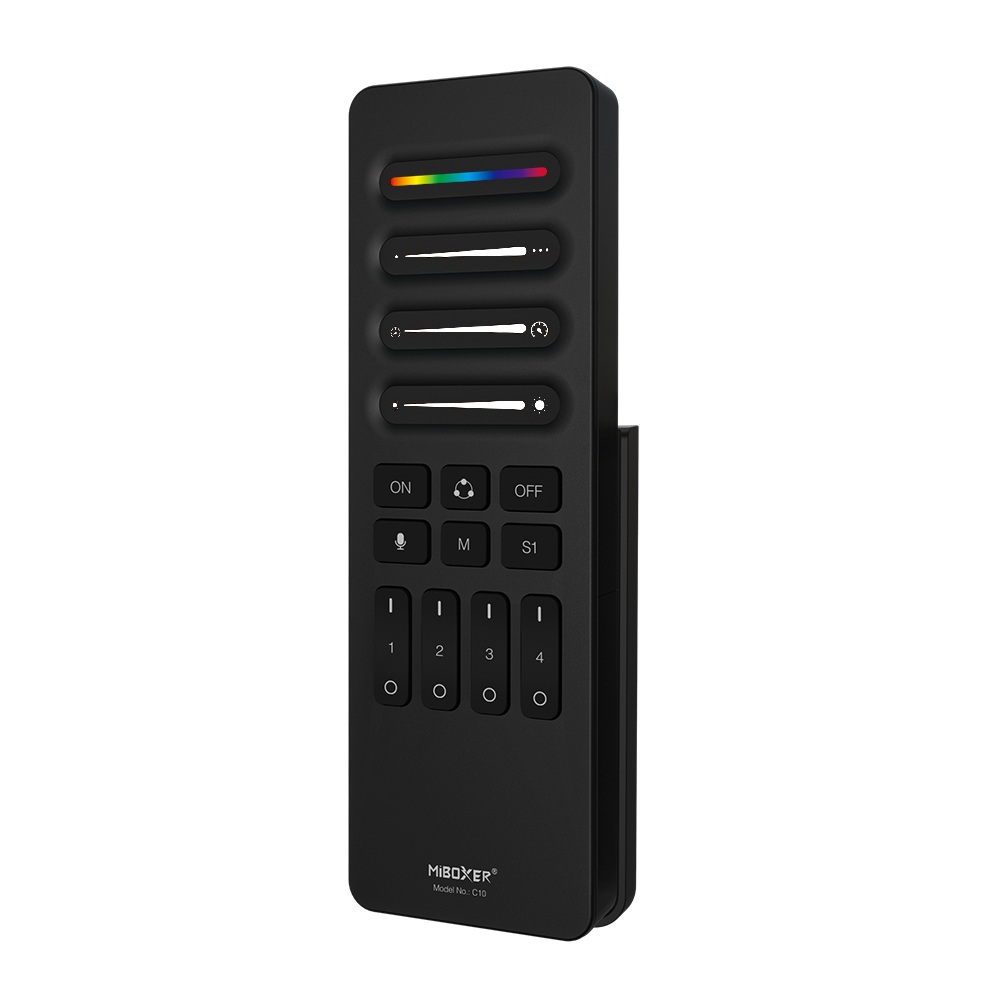

The magnetic mounting allows for easy and flexible attachment to metallic surfaces. The remote control is compact, with dimensions of 140 × 45 × 18 mm, enabling space-saving installation. Installation is tool-free and does not require additional mounting accessories.
Advantages in Operation
The C10-B offers intuitive operation with comprehensive control options for lighting effects. The ability to save up to four scenes enables quick recall of lighting configurations. The 2.4GHz wireless technology ensures reliable signal transmission over a range of up to 30 meters. The energy-efficient design with low standby current consumption ensures long battery life. The magnetic mounting simplifies positioning and adjustment of the remote control at various locations.
Batteries are not included in the delivery scope.
| Technical data | |
| Volt | 3 V |
| Colour housing | Black |
| Battery type | 2*AAA |
| Operation temperature | -10 to +40 °C |
| Size | 140*45*18 mm |
| Battery included | |
