Miboxer AM-DM-12DT5B LED DMX T-connection cable content_copy

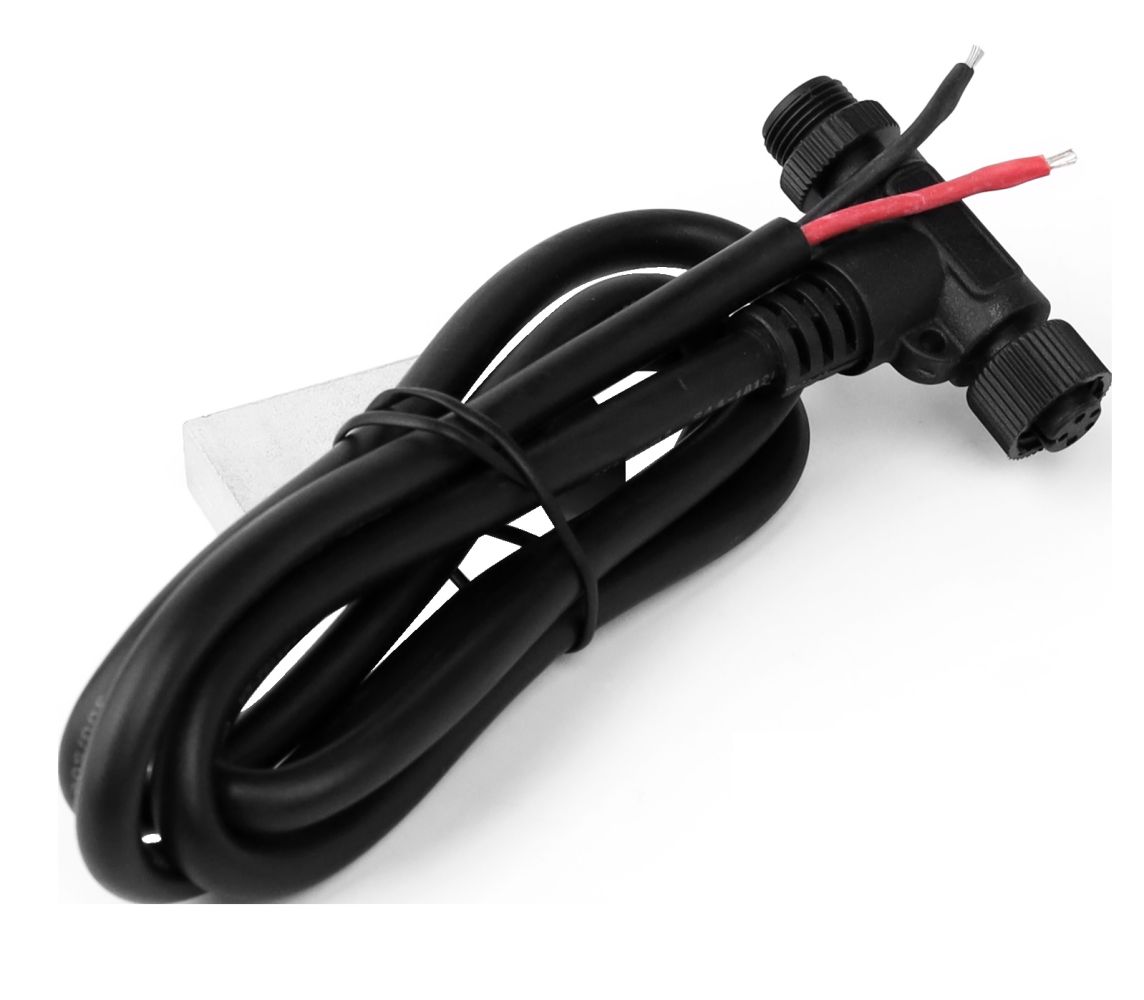

The Miboxer AM-DM-12DT5B is a T-connector cable for LED-DMX lighting systems. It is used to branch DMX signals in professional lighting installations, enabling multiple light sources to be operated on a single cable run. The cable is designed for use in indoor and outdoor environments, with IP67 protection class ensuring high resistance against dust and water. The construction from rubber and nylon materials provides mechanical robustness and long-term durability under load.

Applications
This T-connector cable is used in professional lighting installations, particularly in event technology, stage construction, or architectural lighting. It enables the parallel supply of multiple LED light sources with DMX signals, allowing complex lighting scenarios to be realized. The IP67 protection class also makes it suitable for outdoor use, for example in exterior lighting, garden installations, or temporary outdoor events.

Functions and Equipment in Detail
The cable has a length of 1 meter and is equipped with a robust nylon connector, ensuring a secure mechanical connection. The connection is made via a T-connector, which allows a main cable to be connected to a branch cable, distributing the signal transmission in two directions. The materials – rubber for the cable and nylon for the connector – offer high mechanical strength and resistance to environmental influences.

Technology Explained Simply
The IP67 protection class means the cable is dust-tight and can be submerged in water for a short time without damage. This makes it suitable for use in damp or wet environments. DMX technology enables precise control of LED light sources over a digital network. The cable transmits the DMX signal, which controls the brightness, color, and movement of the lights. The maximum load capacity of the cable is 25 pieces of 3-Watt lights, 15 pieces of 5-Watt lights, 12 pieces of 9-Watt lights, or 6 pieces of 24-Watt lights. These values refer to the electrical load capacity of the cable and signal integrity when controlling the lights.

Compatibility and Accessories
The T-connector cable is designed for use with LED-DMX light sources that connect via a standardized DMX connector. It is compatible with other cables and connectors of the same standard, allowing integration into existing DMX networks. Use with other manufacturers is possible, provided the connectors are mechanically and electrically compatible.

Installation and Mounting
Installation is done by simply plugging the T-connector cable into the existing DMX cable. The connector is designed to ensure a secure connection. Cable connections should be made in a dry, draft-free location to extend service life. For outdoor installations, ensure that connection points are not permanently submerged in water, although the IP67 protection class allows for short-term submersion.

Operational Advantages
The cable enables flexible expansion of DMX networks without requiring additional control devices or complex cabling. The robust construction and IP67 protection class ensure high reliability even under demanding conditions. The clear indication of maximum load capacity helps in planning the lighting setup to avoid overloading. The use of nylon and rubber materials ensures long service life and low maintenance requirements.

Technical data
Protection class	IP67

---
