Metz Connect 1528S974061E CM 6xLC-Duplex OS2 OpDAT
|
131,49 EUR |
|
|
( 156,47 EUR incl. VAT ) ≈ £109.93 | ≈ $145.69 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline | |
| In Stock: 3 pieces | |
| Lieske Part No.: | 343911 |
|---|---|
| Mfg Part No: | 1528S974061E |
| UPC/EAN: | 4250184181392 |
| Weight: | 0.426 kg |
| Type: | 1528S974061E |
Further Fiber and Components from Metz ConnectFurther products in category Fiber and Components
All products of Metz Connect
Product information for Metz Connect 1528S974061E:

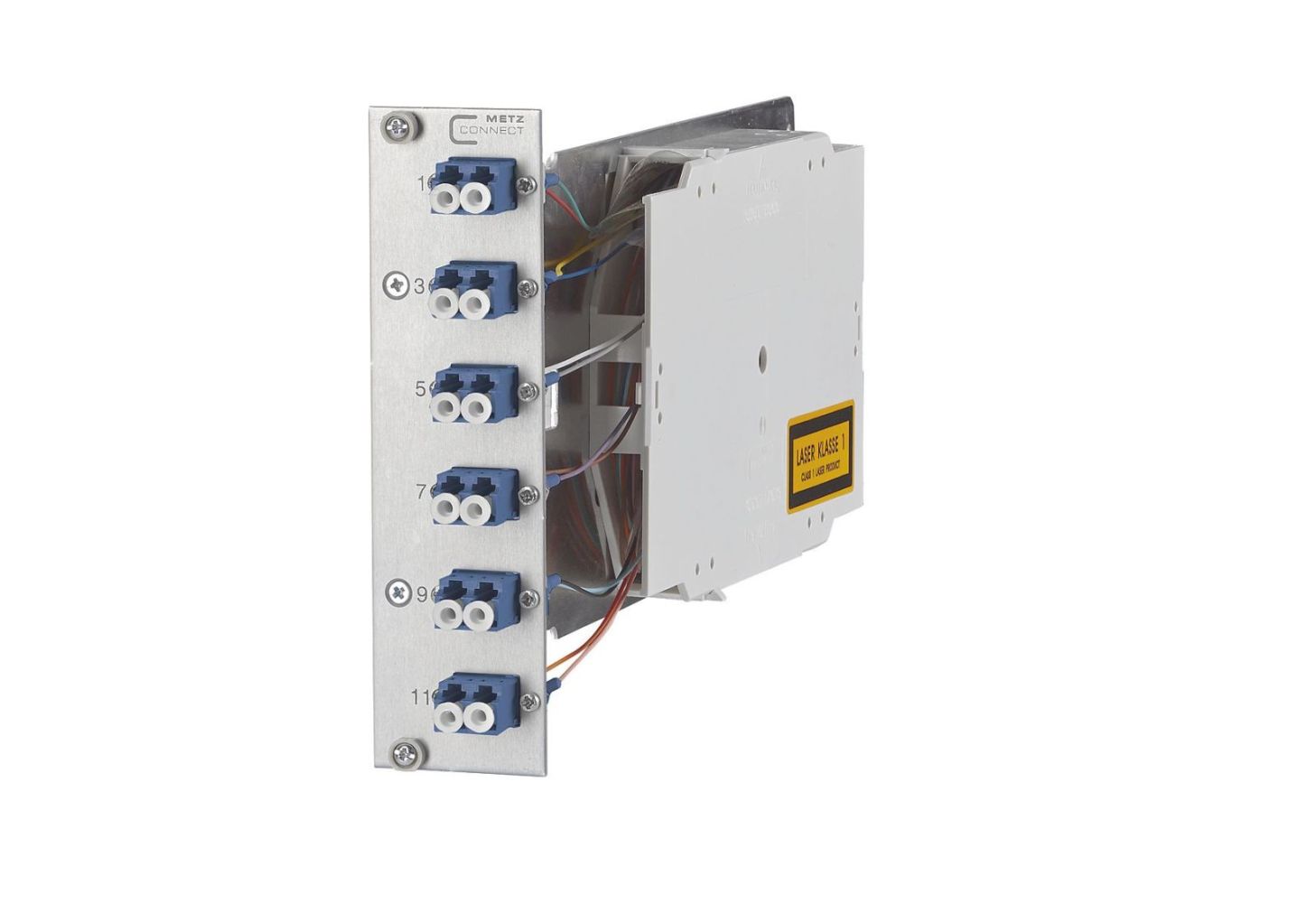

The compact module OpDAT CM 6xLC-D 3HE/TE from Metz Connect is a pre-assembled network module for use in structured cabling systems. It is specifically designed for use in 19-inch racks and offers a compact, fully equipped solution for connecting fiber optic cables. The module is equipped with six LC-duplex connectors, each marked with a specific color code to facilitate assignment to particular fiber optic standards. The connectors are integrated into a front plate made of silver anodized aluminum, providing a robust and visually appealing surface. The connector positions are numbered to enable unique identification and assignment.
Applications
The module is suitable for use in data centers, server rooms, and other environments with high requirements for reliability and structure in fiber optic cabling. It serves as a central connection unit between fiber optic cables and network devices, with the pre-assembled pigtails enabling quick and error-free installation. Use in 19-inch racks ensures compatibility with standardized mounting units and allows for efficient space utilization.
Functions and Equipment in Detail
The module is fully equipped with twelve LC pigtails, each with a length of 2.0 m. The pigtails are fitted with compact fibers with a diameter of 0.9 mm, ensuring a flexible yet stable connection. The pigtails are installed in a standard splice cassette with crimp splice holders and terminated, ensuring a proper and secure connection of the fiber optic cables. The pigtails were cleaned before installation and are already inserted into the LC-D connectors, accelerating installation and reducing error sources. The connectors are available in various colors to enable assignment to specific fiber optic standards such as OS2, OM3, OM4, or OM5. The front plate made of anodized aluminum offers high mechanical stability and a professional appearance.
Technology Explained Simply
The use of LC-duplex connectors enables bidirectional data transmission over a single fiber optic cable, with each duplex connection linking two individual cables (transmit and receive). The pigtails with a length of 2.0 m provide sufficient slack for connecting to network devices without requiring additional extensions. The compact fiber with a diameter of 0.9 mm is particularly flexible and suitable for tight bending radii, which is advantageous during installation in narrow racks or cable ducts. The use of crimp splice holders in the splice cassette ensures a mechanically stable and long-lasting connection of the fiber optic cables.
Compatibility and Accessories
The module is designed for use in component carriers, specifically for the 1528SBGT19-E CM 19z 3HE component carrier OpDAT. Mounting is done using non-removable screws, ensuring secure installation in the rack. The carrier plate of the module is made of steel and is equipped with a splice cassette and an over-length cassette, each with a cover, to protect the cable connections from dust and mechanical damage. The combination with the specified component carrier enables modular expansion of the cabling infrastructure.
Installation and Mounting
Installation is carried out by inserting the module into the corresponding component carrier in the 19-inch rack. The non-removable screws ensure the module is securely fixed. The pre-assembled pigtails are already inserted into the connectors, so no additional splicing work is required. The numbered connector positions facilitate assignment and documentation of connections. The front plate made of anodized aluminum is easy to clean and provides a professional finish.
Operational Advantages
The pre-assembled design reduces installation time and minimizes error sources, as no additional splicing work is required. The use of compact fibers and crimp splice holders ensures high mechanical stability and long service life of the connections. The color coding of the connectors enables quick identification of the fiber optic standards used, simplifying maintenance and troubleshooting. The integrated splice and over-length cassette provides a protected area for cable connections, increasing the reliability of the cabling.
Applications
The module is suitable for use in data centers, server rooms, and other environments with high requirements for reliability and structure in fiber optic cabling. It serves as a central connection unit between fiber optic cables and network devices, with the pre-assembled pigtails enabling quick and error-free installation. Use in 19-inch racks ensures compatibility with standardized mounting units and allows for efficient space utilization.
Functions and Equipment in Detail
The module is fully equipped with twelve LC pigtails, each with a length of 2.0 m. The pigtails are fitted with compact fibers with a diameter of 0.9 mm, ensuring a flexible yet stable connection. The pigtails are installed in a standard splice cassette with crimp splice holders and terminated, ensuring a proper and secure connection of the fiber optic cables. The pigtails were cleaned before installation and are already inserted into the LC-D connectors, accelerating installation and reducing error sources. The connectors are available in various colors to enable assignment to specific fiber optic standards such as OS2, OM3, OM4, or OM5. The front plate made of anodized aluminum offers high mechanical stability and a professional appearance.
Technology Explained Simply
The use of LC-duplex connectors enables bidirectional data transmission over a single fiber optic cable, with each duplex connection linking two individual cables (transmit and receive). The pigtails with a length of 2.0 m provide sufficient slack for connecting to network devices without requiring additional extensions. The compact fiber with a diameter of 0.9 mm is particularly flexible and suitable for tight bending radii, which is advantageous during installation in narrow racks or cable ducts. The use of crimp splice holders in the splice cassette ensures a mechanically stable and long-lasting connection of the fiber optic cables.
Compatibility and Accessories
The module is designed for use in component carriers, specifically for the 1528SBGT19-E CM 19z 3HE component carrier OpDAT. Mounting is done using non-removable screws, ensuring secure installation in the rack. The carrier plate of the module is made of steel and is equipped with a splice cassette and an over-length cassette, each with a cover, to protect the cable connections from dust and mechanical damage. The combination with the specified component carrier enables modular expansion of the cabling infrastructure.
Installation and Mounting
Installation is carried out by inserting the module into the corresponding component carrier in the 19-inch rack. The non-removable screws ensure the module is securely fixed. The pre-assembled pigtails are already inserted into the connectors, so no additional splicing work is required. The numbered connector positions facilitate assignment and documentation of connections. The front plate made of anodized aluminum is easy to clean and provides a professional finish.
Operational Advantages
The pre-assembled design reduces installation time and minimizes error sources, as no additional splicing work is required. The use of compact fibers and crimp splice holders ensures high mechanical stability and long service life of the connections. The color coding of the connectors enables quick identification of the fiber optic standards used, simplifying maintenance and troubleshooting. The integrated splice and over-length cassette provides a protected area for cable connections, increasing the reliability of the cabling.
| General | |
| Module type | compact module OpDAT CM 6xLC-D 3HE/TE |
| Number of LC duplex couplers | 6 |
| Number of LC pigtails | 12 |
| Pigtail length | 2,0 m |
| Cable type | Semi tight |
| Cable diameter | 0,9 mm |
| Front plate | silver anodised aluminium |
| Coupling positions | numbered |
| Base plate | Steel |
| Splice cassette | standard splice cassette with crimp splice holder |
| Extended cassette | With cover |
| Mounting | non-removable screws |
| Coupler colours | blue (OS2), green (OS2 APC), lime green (OM5), purple (OM4), aqua (OM3) |
| Compatibility | 1528SBGT19-E CM 19z 3HE module carrier OpDAT |
Questions & answers
What is the delivery time of Metz Connect 1528S974061E CM 6xLC-Duplex OS2 OpDAT?
The article Metz Connect 1528S974061E CM 6xLC-Duplex OS2 OpDAT is currently in stock
According to our experience the article is ready for dispatch within 2 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Metz Connect 1528S974061E to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Metz Connect 1528S974061E CM 6xLC-Duplex OS2 OpDAT always at the best possible price. We can give you a discount of 2% on Metz Connect 1528S974061E CM 6xLC-Duplex OS2 OpDAT if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
