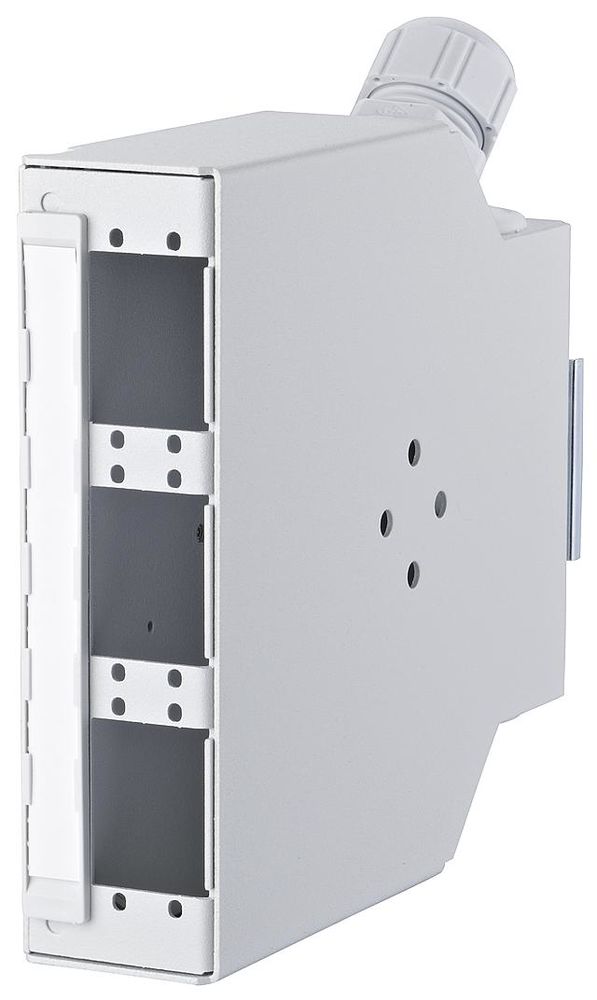

Metz Connect 150240000010E
BTR Fibre-optic splicing, OpDAT REG plus unequipped 34x125x132, 5mm content_copy

Splice distributor for mounting rail TH35, unequipped, with fiber reservoir, freely labelable labeling strip, various installation variants on the mounting rail possible, splice tray with crimp splice holder or shrink splice holder for up to 12 splices / front panel can be removed as a whole, cable feed from above or below, straight or angled, with M20 screw connection (up to 2 possible), 34 mm (2TE) wide, 125 mm high, 132.5 mm deep (from mounting rail, without couplings), can be equipped with couplings in SC-D design, introduction of pre-assembled cables possible, one M20 cable entry with strain relief included in the scope of delivery, fastening of the housing cover with just one captive screw, free coupling recesses can be equipped with special blanking covers, blanking cover 1-way (860088-01), 2-way (860088-02), Variants: with crimp splice holder, with shrink splice holder, Attention: When using pre-assembled cables with ST connectors, the unassembled version of the OpDAT REGplus must be used. The ST-D couplings required are available as accessories. Before installing the couplings in the housing, the pre-assembled ST connectors must be plugged onto the couplings for reasons of space.
Type: 150240000010E
