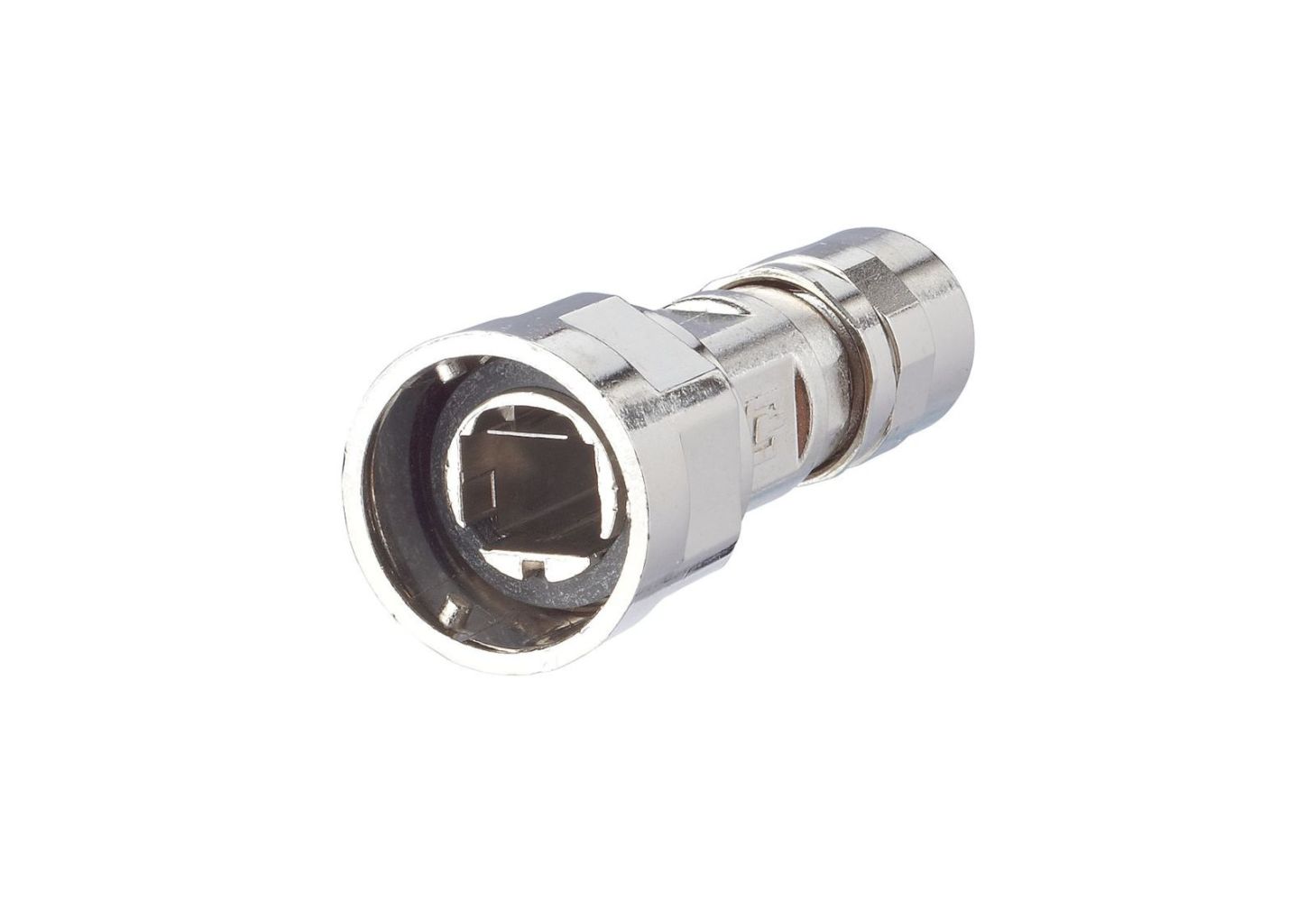

Metz Connect 1401015000ME IP67 V1 metallic plug enclosure with bayonet lock Industry content_copy

The Metz Connect Industry IP67 V1 1401015000ME is a robust metal connector enclosure for industrial networking applications, specifically designed for use in harsh environments with high requirements for mechanical strength, chemical resistance, and environmental resilience. The enclosure serves as a base for mounting compatible Industry connector inserts and provides a secure, waterproof, and dustproof connection according to protection class IP67. It is made of zinc die-cast and features a silver surface, which is both aesthetically appealing and functionally durable. The construction allows for easy and quick installation via a bayonet lock, ensuring a secure and smooth connection of connectors. The enclosure is designed for use in a temperature range of -40 °C to +70 °C, making it suitable for applications in extreme climatic conditions.

Applications
This connector enclosure is designed for industrial networking applications, particularly in environments with mechanical stress, moisture, dust, or chemical influences. It is suitable for use in manufacturing, machine building, automation technology, or logistics, where a reliable and long-lasting connection is required. Its high chemical resistance and resistance to welding spatter make it especially suitable for use in metalworking or assembly processes.

Features and Equipment in Detail
The enclosure features a bayonet lock, designed according to ISO/IEC 24702 and IEC 61076-3-106 Variant 1 standards. This lock ensures a secure and quick connection that remains stable even under vibration or mechanical stress. The IP67 protection rating means the enclosure is dust-tight and can withstand temporary submersion in water up to a depth of 1 m for up to 30 minutes, making it suitable for outdoor use or in damp indoor environments. The maximum cable jacket thickness is 10 mm, supporting a wide range of cable types. An integrated clip allows for easy color coding, and labeling options on the enclosure facilitate identification during operation.

Technology Explained Simply
The enclosure is made of zinc die-cast, a material offering high mechanical strength and corrosion resistance. The silver surface is not only visually appealing but also resistant to wear and environmental influences. The flammability class UL 94V-0 indicates that the material is difficult to ignite and does not propagate flames, enhancing operational safety. Chemical resistance protects the enclosure from aggressive substances commonly found in industrial processes. The temperature resistance from -40 °C to +70 °C enables use in climatically extreme environments, such as refrigeration units or high-temperature production halls.

Compatibility and Accessories
The connector enclosure is compatible with various Industry connector inserts, including the E-DAT Industry RJ45 Field Plug Insert, E-DAT Industry RJ45 Plug Insert, OpDAT Industry 2LC Plug Insert, and OpDAT Industry 2SC Plug Insert. These inserts allow adaptation to different networking requirements. Variants with strain relief are also available, providing additional mechanical protection. Cable entry is possible even with pre-mounted enclosures, simplifying installation and reducing mounting time.

Installation and Mounting
Mounting is done by inserting the desired connector insert into the enclosure and then securing it using the bayonet lock. Cable entry is performed before mounting the connector, with the cable being routed through the pre-mounted enclosure. Labeling options and the snap-on clip facilitate identification and color coding during operation. The robust construction allows for easy handling, even with frequent plugging and unplugging.

Operational Advantages
The enclosure offers high reliability due to its robust metal construction and IP67 protection rating. Chemical resistance and resistance to welding spatter increase service life and reduce maintenance needs. Easy mounting and color-coding options improve efficiency during installation and maintenance. Temperature resistance enables use in a wide range of industrial environments without performance degradation.

The item price shown refers to 10 pieces Metz Connect 1401015000ME
