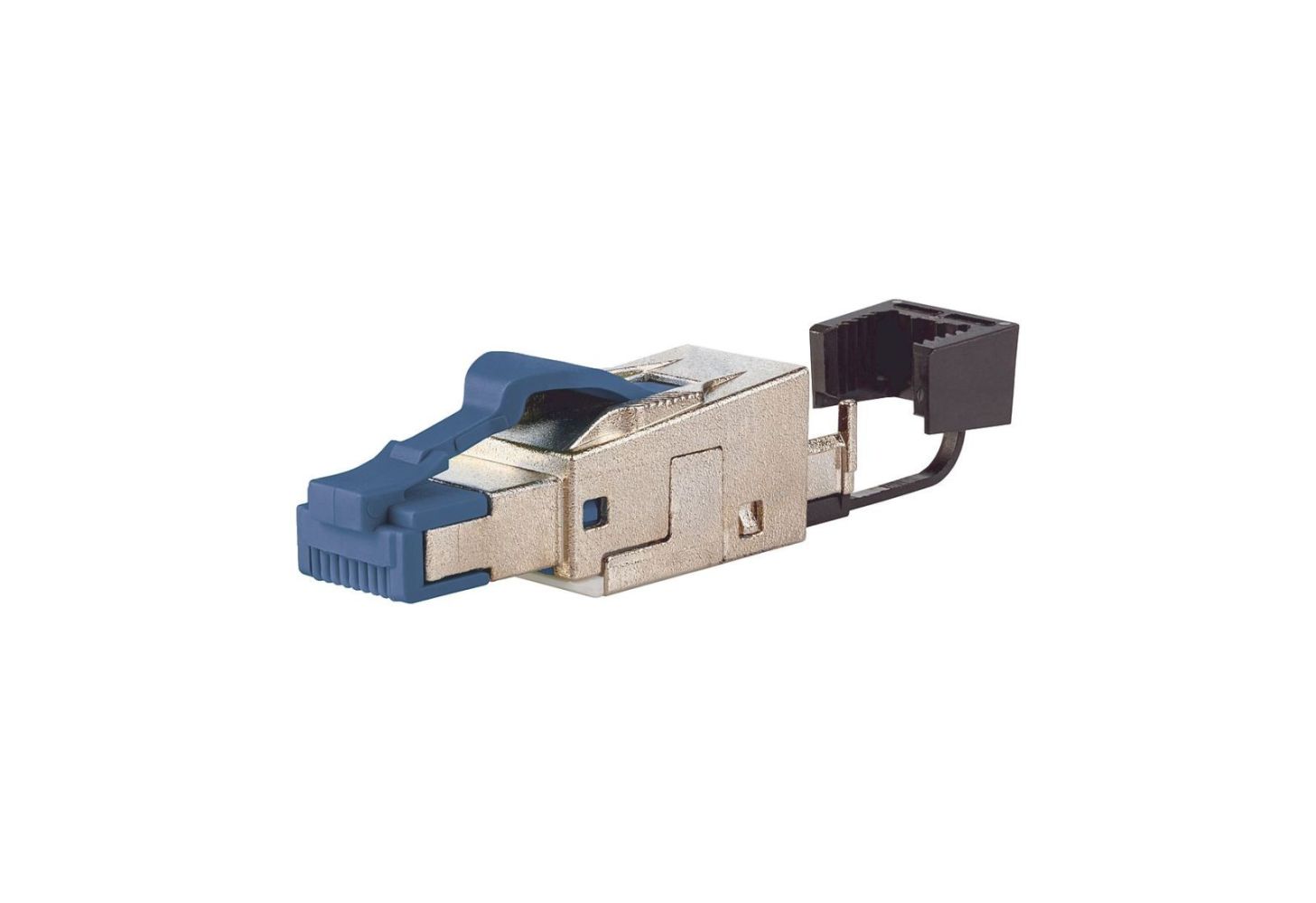

Metz Connect 130H405032-E 40 GBit RJ45 field connector 180° field configurable
|
-29% 12,31 EUR 17,32 EUR |
|
|
( 14,65 EUR incl. VAT ) ≈ £10.32 | ≈ $13.82 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline | |
| In Stock: 2 pieces | |
| Lieske Part No.: | 1003537 |
|---|---|
| Mfg Part No: | 130H405032-E |
| UPC/EAN: | 4251394614519 |
| Weight: | 0.26 kg |
| Type: | 130H405032-E |
Further Miscellaneous from Metz ConnectFurther products in category Miscellaneous
All products of Metz Connect
Product information for Metz Connect 130H405032-E:
40G RJ45 field plug pro
Field-assembled RJ45 plug Cat.8.1/Class I (up to 2000 MHz)
fully shielded and multi-port capable Straight
cable feed (180°)
Simplest assembly - can be connected without special tools
Wire connection Stranded conductor AWG 27/7 - 22/7, wire diameter 0.43 - 0.76 mm
core connection full core AWG 26/1 - 22/1, core diameter 0.4 - 0.64 mm
Transmission properties Cat.8.1 according to ISO/IEC 11801 Ed.3:2017 (up to 2000 MHz)
Compliance with Class I ISO/IEC 11801 Ed.3:2017, DIN EN 50173-1:2018
40GBASE-T suitable for 40 Gbit Ethernet (IEEE 802.3bq), remote powering (PoE, PoE plus, UPoE and 4PPoE) and HDBaseT
Protection class IP20
suitable for cable sheath diameter from 5.5 to 10.5 mm
2-part, industrial-grade housing made of die-cast zinc strain relief via snap clip protected locking hook can be reconnected
directly to the loading piece .
Field-assembled RJ45 plug Cat.8.1/Class I (up to 2000 MHz)
fully shielded and multi-port capable Straight
cable feed (180°)
Simplest assembly - can be connected without special tools
Wire connection Stranded conductor AWG 27/7 - 22/7, wire diameter 0.43 - 0.76 mm
core connection full core AWG 26/1 - 22/1, core diameter 0.4 - 0.64 mm
Transmission properties Cat.8.1 according to ISO/IEC 11801 Ed.3:2017 (up to 2000 MHz)
Compliance with Class I ISO/IEC 11801 Ed.3:2017, DIN EN 50173-1:2018
40GBASE-T suitable for 40 Gbit Ethernet (IEEE 802.3bq), remote powering (PoE, PoE plus, UPoE and 4PPoE) and HDBaseT
Protection class IP20
suitable for cable sheath diameter from 5.5 to 10.5 mm
2-part, industrial-grade housing made of die-cast zinc strain relief via snap clip protected locking hook can be reconnected
directly to the loading piece .
Questions & answers
What is the delivery time of Metz Connect 130H405032-E 40 GBit RJ45 field connector 180° field configurable?
The article Metz Connect 130H405032-E 40 GBit RJ45 field connector 180° field configurable is currently in stock
According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Metz Connect 130H405032-E to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Metz Connect 130H405032-E 40 GBit RJ45 field connector 180° field configurable always at the best possible price. We can give you a discount of 2% on Metz Connect 130H405032-E 40 GBit RJ45 field connector 180° field configurable if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
