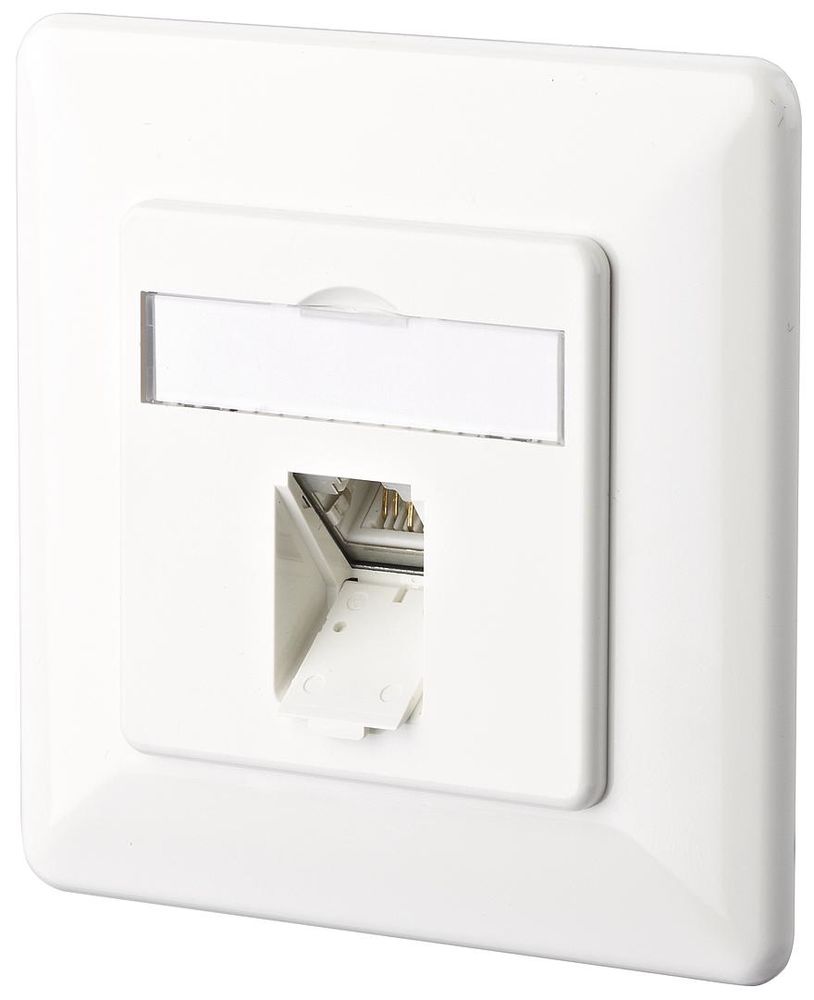

Metz Connect 130C371002-I BTR E-DAT C6A 8 (8) UP, flush port unit 1 Port Cat.6

E-DAT C6A 1 Port UP pure white • Flush-mounted power unit with one or two 8-pin RJ45 connectors • component testing for Category 6A ISO / IEC 11801 Ed.2.2 :2011-06 DIN EN 50173-1:2011-09, TIA/EIA-568-C.2 (2009-08) and IEC 60603-7-51 ed. 1 (12/2008), GHMT • compliance with the Class EA up to 500 MHz according to ISO / IEC 11801 Ed.2.2: 2011 -06, EN 50173-1:2011-09 • component testing up to 600 MHz, Link up to 800 MHz • for 10 GBit Ethernet (IEEE 802.3an) • Suitable for Power over Ethernet (PoE and PoE plus UPoE) • RF technically optimized and ergonomic LSA terminal block • Screw the strain relief cover and shield connectivity on the front • convenient cable feeding of 8 pages • Connection of data lines AWG 26/1 - 22/1 (solid) • Plug-in direction 45 ° downwards • With window for port identification labels • Label sheets 209 x 294 mm see accessories • Built-in dust protection covers (available in different colors) • Compatible with central design plates of switch lines • Suitable for installation in standard flush cups and cavity wall cups • faceplates pure white RAL 9010 or pearl white RAL 1013 • flush-connection unit with one or two 8-pin RJ45 connectors • component testing for Category 6A ISO / IEC 11801 Ed.2.2 :2011-06 DIN EN 50173-1:2011-09, TIA/EIA-568-C.2 (2009 - 08) and IEC 60603-7-51 ed. 1 (12/2008), GHMT • compliance with the Class EA up to 500 MHz according to ISO / IEC 11801 Ed.2.2 :2011-06 DIN EN 50173-1:2011-09 • component testing up to 600 MHz, Link up to 800 MHz • for 10 GBit Ethernet (IEEE 802.3an) • Suitable for Power over Ethernet (PoE and PoE plus UPoE) • RF-optimized and ergonomic LSA terminal block • Screw the strain relief cover and shield connectivity on the front • convenient cable feeding of 8 pages • wire diameters AWG 26/1 - 22/1 (solid) • Plug-in direction 45 ° downwards • With window for type: 130C371002-I Sales Unit: 1 ST.
