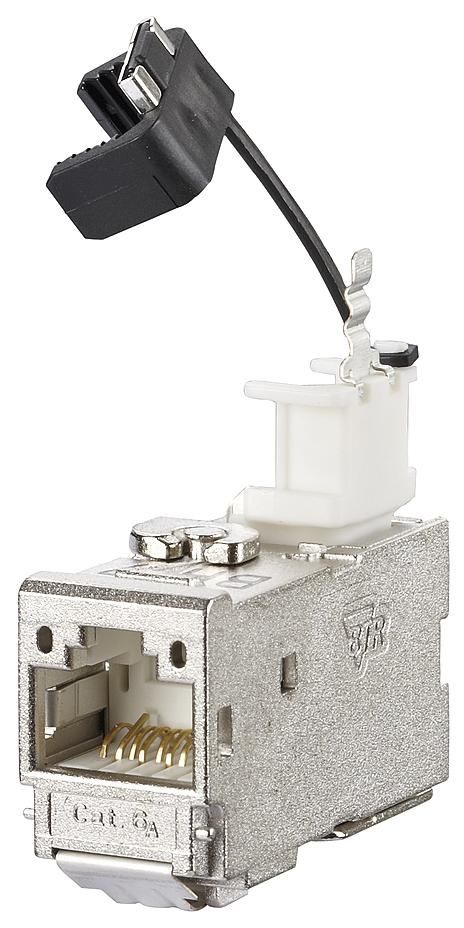

Metz Connect 130B13-E BTR C6Amodul 90 ° Jack, content_copy

Modular Cat.6, A connection unit RJ45Installation form: MC module, cable feed 90°, robust, one-piece and reusable module housing made of die-cast zinc, refined, assembly without special tools, strain relief via snap-in clip directly on the charging piece, special tool-free migration to 25G systems, easy-to-assemble connection of data cables AWG 26/1 - 22/1 (single-wire) and AWG 26/7 to 22/7 (multi-wire) to IDC insulation displacement terminals, intelligent cable management in the charging piece, also suitable for heavily twisted cables, marking of the wire assignment T568A and T568B directly on the charging piece, GHMT Cat.6, A re-embedded PVP certifiedCat.6, A component testing according to ISO/IEC 11801, DIN EN 50173-1, ANSI/TIA-568.2-D and IEC 60603-7-51, GHMT certifiedCompliance with Class E, A up to 500 MHz according to ISO/IEC 11801, DIN EN 50173-1Tested: Component up to 600 MHz, Link up to 800 MHz
