Metz Connect 130B12D31002-E module Cat.6A 3 port 270° M UP pure white connection outlet

Your rating:
Average rating
product review for Metz Connect 130B12D31002-E module Cat.6A 3 port 270° M UP pure white connection outlet
( 4.2 / 5 ) 6 ratings

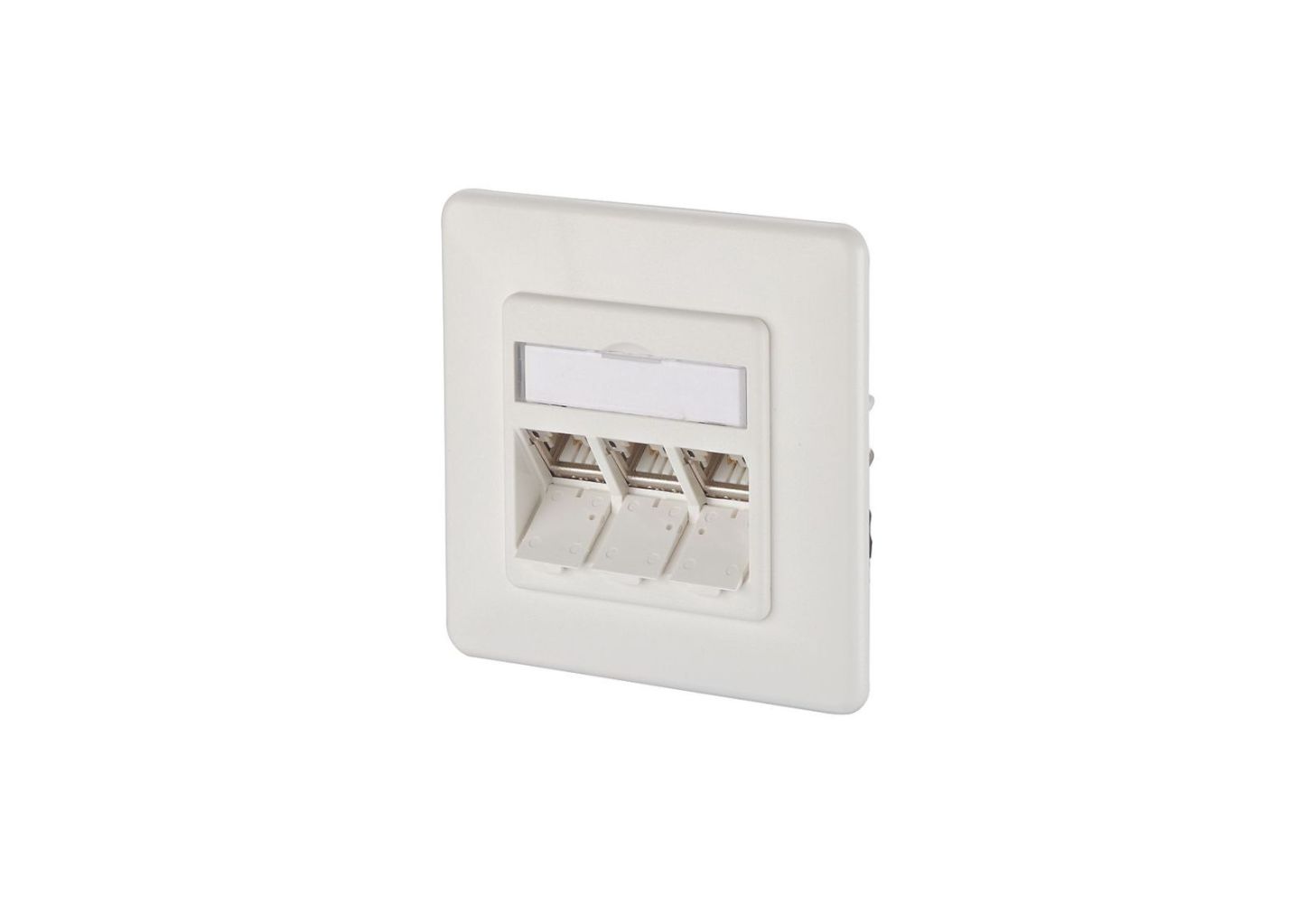

Metz Connect 130B12D31002-E
This image may differ from the desired article.
Metz Connect 130B12D31002-EMetz Connect 130B12D31002-E
26,14 EUR 26,14 EUR
( 31,11 EUR incl. VAT )
≈ £21.88  |  ≈ $28.73
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline
In Stock: 1 pieces
1x Metz Connect 130B12D31002-E module Cat.6A 3 port 270° M UP pure white connection outlet
Lieske Part No.:127481
Mfg Part No: 130B12D31002-E
UPC/EAN: 4250184131922
Weight:0.182 kg
Type:130B12D31002-E
Graduated prices net
From piecesPrice per pieces
1025,16 EUR
2524,18 EUR
5023,20 EUR
7522,22 EUR

Product information for Metz Connect 130B12D31002-E:

The Metz Connect connection socket type 130B12D31002-E is a modular Cat.6A component module for use in passive network infrastructures. It is designed for underfloor installation (UP) and features three connection ports with a 270° insertion direction, while the module is tilted 45° downward. The socket is designed for connecting telephone systems and data transmissions up to 10 Gbit/s and supports power supply via Power over Ethernet (PoE) with a power output of up to 90 watts. The construction made of nickel-plated zinc die-cast ensures high mechanical robustness and enables easy, error-free installation without special tools. The module consists of two parts and is delivered in standard cardboard packaging with 10 pieces each.

Applications
The connection socket is suitable for use in office buildings, industrial facilities, and other environments where a high-quality, reliable network infrastructure is required. It is intended for installation in standard underfloor and hollow wall boxes and can be integrated into existing switch programs. Compatibility with design center pieces from switch programs (e.g., 3-way center pieces from Jung) allows for a uniform design of the installation. The socket is designed for indoor use and meets the requirements for a stable, long-term connection.

Functions and equipment in detail
The module features integrated dust protection flaps that protect the connections from contamination. The cover parts are pure white (RAL 9010) and have a matte, structured surface. A viewing window allows the insertion of a labeling insert to facilitate identification of the connections. Cable strain relief is achieved via snap clips on the loading piece, ensuring secure cable fixation. The IDC cutting terminals allow connection of data cables with cross-sections of AWG 24/1 to 22/1 (single-strand) and AWG 26/7 to 22/7 (multi-strand).

Technology explained simply
The connection socket complies with Class EA according to ISO/IEC 11801 Ed.2.2 (2010) and is designed for frequencies up to 500 MHz. Component testing is carried out in accordance with ISO/IEC 11801 Ed.2.2 (2010), TIA/EIA-568-C.2 (2009-08), and IEC 60603-7-51 Ed.1 (12/2008). The modules are GHMT-certified and have been tested for quality in independent testing laboratories. The tested bandwidth reaches up to 600 MHz for the component and up to 800 MHz for the link, ensuring high data transmission performance and stability. PoE support enables power supply of end devices via the network cable, eliminating the need for additional power sources.

Compatibility and accessories
The connection socket is compatible with various mounting brackets, including T-nut mounting elements in 50 mm and 55 mm, as well as track mounting fixtures. Suitable mounting brackets are available, for example, the mounting bracket T-nut horizontal installation 50 mm without partition shell (item 1308895010-I) or with partition shell (item 1308895011-I). Surface mounting frames in size 85 x 85 x 43 mm (1-way, pure white) can also be used to install the socket in surface-mounted applications. The use of design center pieces from switch programs (e.g., Jung) is possible, although only 3-way center pieces are currently available.

Installation and mounting
Installation is carried out in standard underfloor and hollow wall boxes. The module is installed without special tools, with the robust zinc die-cast construction ensuring easy and secure fastening. The 270° insertion direction and the 45° tilt of the module facilitate cabling and access to the connections. The integrated snap clips ensure secure cable strain relief. Installation is completed in a single step, with the module parts simply assembled together.

Operational advantages
The connection socket offers high reliability and longevity due to the robust zinc die-cast construction and permanent quality control during manufacturing. PoE support up to 90W enables power supply for high-performance end devices such as IP cameras or access points. The clear labeling option and integrated dust protection flaps enhance user-friendliness and maintainability. Certification according to international standards ensures compatibility and performance in professional networks.

General
Categoryconnection socket -
Port count3 -
Angle of plug270° -
Mounting methodUnderfloor (UP) -
Module insertion direction45° downward angled -
Cable connectionIDC stripping terminals -
Cable cross-sectionAWG 24/1 - 22/1 (solid), AWG 26/7 - 22/7 (stranded) -
Current supplyPoE up to 90W -
ClassEA -
Frequency rangeup to 500 MHz -
Component testingISO/IEC 11801 Ed.2.2 (2010), TIA/EIA-568-C.2 (2009-08), IEC 60603-7-51 Ed.1 (12/2008) -
CertificationGHMT certified -
Cover partspure white RAL 9010, matt structured -
Tension relieflatching clip on charging unit -
Viewing windowfor label insert -
Dust protection flapsIntegrated -
Compatibilitydesign centre pieces from switch programmes (e.g. Jung) -
Mountingin standard recessed and hollow wall boxes -
MaterialNickel-plated zinc die-cast -
Modular designtwo parts -
PackagingCardboard packaging, 10 pieces -
