Metz Connect 130B12D11002-E module Cat.6A 1 port 270° M UP pure white connection outlet

Your rating:
Average rating
product review for Metz Connect 130B12D11002-E module Cat.6A 1 port 270° M UP pure white connection outlet
( 4.5 / 5 ) 8 ratings

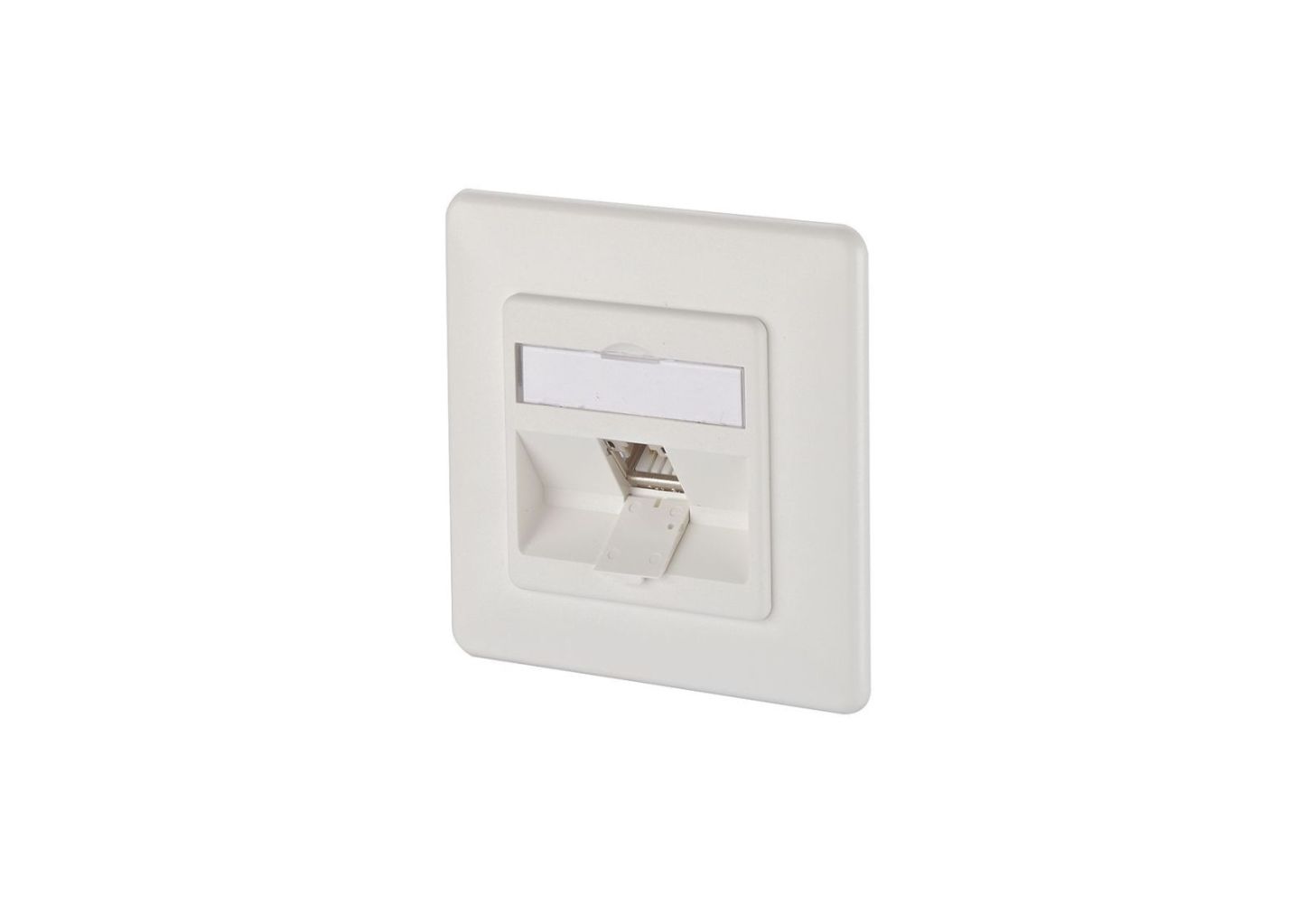

Metz Connect 130B12D11002-E
This image may differ from the desired article.
Metz Connect 130B12D11002-EMetz Connect 130B12D11002-E
19,90 EUR
( 23,68 EUR incl. VAT )
≈ £16.66  |  ≈ $21.87
plus delivery charges: 55,00 €
in stockinfo_outline
In Stock: >25 pieces
1x Metz Connect 130B12D11002-E module Cat.6A 1 port 270° M UP pure white connection outlet
Lieske Part No.:125595
Mfg Part No: 130B12D11002-E
UPC/EAN: 4250184131878
Weight:0.155 kg
Type:130B12D11002-E
Graduated prices net
From piecesPrice per pieces
1518,11 EUR
3016,32 EUR
7014,53 EUR
10012,74 EUR

Product information for Metz Connect 130B12D11002-E:

The Metz Connect connection socket type 130B12D11002-E is a modular in-wall connection unit for installation in standard in-wall and hollow wall boxes. It is designed for building a passive network infrastructure with high quality requirements and is intended for use in professional IT and telecommunications installations. The module features a single RJ45 port and is designed for connecting data lines as well as for power supply via Power over Ethernet (PoE). The connection socket is suitable for applications ranging from telephone systems to 10 Gbit/s networks and supports PoE technologies with a maximum power of 90 W, including PoE, PoE plus, UPoE and 4PPoE.

Applications
The connection socket is used in office buildings, administrative buildings, industrial facilities and other facilities where a reliable and high-quality network infrastructure is required. It is intended for in-wall installations and can be mounted in standard in-wall and hollow wall boxes. Compatibility with design centre pieces from switch programmes enables a uniform design of installation points.

Functions and equipment in detail
The module consists of two parts and is made of nickel-plated zinc die-cast, ensuring high mechanical robustness and longevity. The connection terminals are IDC cutting terminals, designed for connecting data lines with cross-sections AWG 24/1 to 22/1 (single-strand) and AWG 26/7 to 22/7 (multi-strand). The module's insertion direction is inclined 45 degrees downward, enabling ergonomic operation. Integrated dust protection flaps protect the connection from contamination, and a viewing window allows labelling of the connection socket with an included labelling insert. Strain relief is provided by a snap clip on the load piece, reducing mechanical stress on the cable.

Technology explained simply
The connection socket corresponds to Category Cat.6A and meets Class EA up to 500 MHz according to ISO/IEC 11801 Ed.2.2. Component testing is carried out according to ISO/IEC 11801 Ed.2.2 (2010), DIN EN 50173-1:2011-09, TIA/EIA-568-C.2 (2009-08) and IEC 60603-7-51 Ed.1 (12/2008). The modules are GHMT certified and have been tested: component up to 600 MHz, link up to 800 MHz. Certification and quality control by independent testing laboratories guarantee high performance and reliability. Power supply via PoE enables the supply of end devices such as IP phones, network switches or surveillance cameras via the network cable, eliminating the need for additional power supply lines.

Compatibility and accessories
The connection socket is compatible with various mounting brackets, including T-nut mounting elements in 50 mm and 55 mm, as well as track mounting fixtures. Suitable accessories include mounting brackets with and without partition shells, surface-mounted frames in 85 x 85 x 43 mm, and cover plates in pure white (RAL 9010). These components enable flexible and secure mounting in various installation scenarios. The cover parts are pure white (RAL 9010) and feature a matte, structured surface, enabling a uniform optical design of installations.

Installation and mounting
Mounting is carried out in standard in-wall and hollow wall boxes. The module can be connected quickly and error-free without special tools. The simple handling and robust construction facilitate installation for installers. Delivery is in trade-friendly, individually separable carton packaging with 10 pieces each.

Advantages in operation
The connection socket offers high mechanical stability, a reliable electrical connection and a long service life. Support for PoE technologies reduces the number of required power supply lines and simplifies installation. The integrated dust protection flaps and strain relief increase the safety and reliability of the connection. Certification according to international standards ensures compatibility with modern network standards and compliance with quality requirements.

General
CategoryCat.6A
ClassEA
Frequency range500 MHz
Component testingISO/IEC 11801 Ed.2.2 (2010), DIN EN 50173-1:2011-09, TIA/EIA-568-C.2 (2009-08), IEC 60603-7-51 Ed.1 (12/2008)
CertificationGHMT certified
Test frequency component600 MHz
Test frequency link800 MHz
PoE supportPoE, PoE plus, UPoE, 4PPoE
Maximum PoE power90 W
Terminal clampsIDC stripping terminals
Data line cross-sectionAWG 24/1 - 22/1 (solid), AWG 26/7 - 22/7 (stranded)
Angle of pluginclined 45 degrees downward
Tension relieflatching clip on charging unit
Dust protection flapsIntegrated
Viewing windowfor label insert
Cover partspure white RAL 9010, matt structured
Mounting methodFlush mounted (plaster)
CompatibilityDesign central units for switchgear programs
Materialzinc die-cast, nickel-plated
Module form factortwo parts
Port count1
Connection typeRJ45
Application rangeStandard recessed and hollow wall sockets
