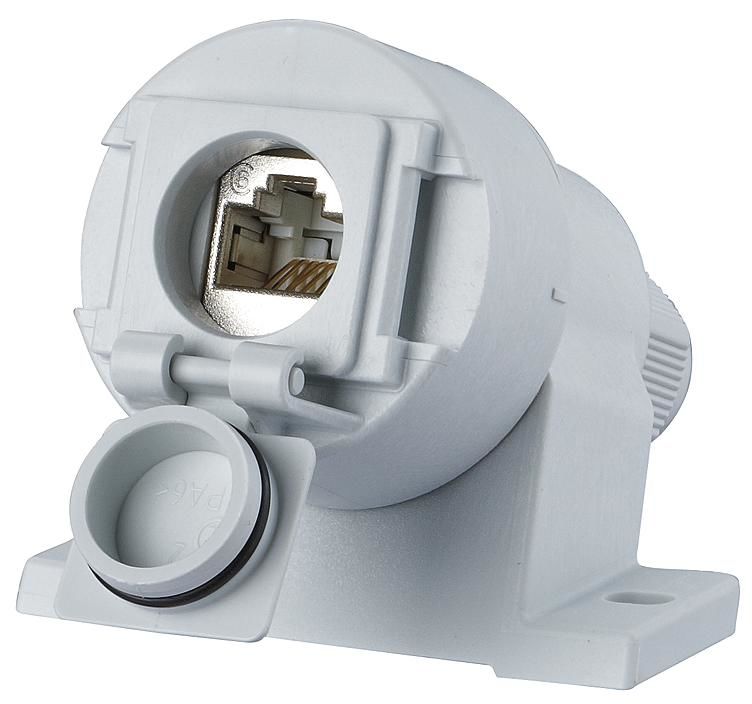

Metz Connect 1309510003-E BTR E-DAT Ind. IP67 V6 AP, 1P RJ45 connection unit flange content_copy

RJ45 connection unit C6, Amodul in flange housing according to ISO/IEC 24702 and IEC 61076-3-106 Var. 6GHMT Cat.6, A re-embedded PVP certifiedCat.6, A component testing according to ISO/IEC 11801, DIN EN 50173-1, ANSI/TIA-568.2-D and IEC 60603-7-51, GHMT certifiedCompliance with Class E, A according to ISO/IEC 11801, DIN EN 50173-1Tested: Component up to 600 MHz, link up to 800 MHz, suitable for 10 GBit Ethernet (IEEE 802.3an), remote powering (PoE, PoE plus, UPoE and 4PPoE) and HDBaseT, easy-to-install connection of data cables AWG 24/1 - 22/1 (single-wire) and AWG 26/7 to 22/7 (multi-wire) to IDC insulation displacement terminals, intelligent cable management in charging piece, also for heavily Suitable for twisted cables, marking of the wire assignment T568A and T568B directly on the charging unit, meets protection class IP67 when plugged in, connector face in accordance with IEC 61076-3-106 (variant 6), large-area 360° shield contact, connection of standard RJ45 plugs possible (no IP protection), installation without special tools, strain relief via snap-in clip directly on the charging unit of the module, color: light gray RAL 7035
Type: 1309510003-E
