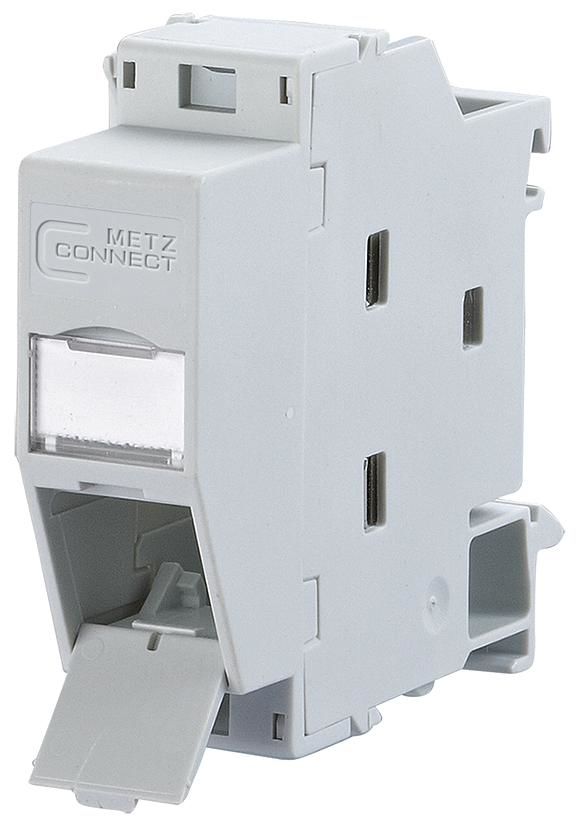

Metz Connect 1309427103-E BTR- REGplus IP20 M, unequipped

Connection unit without equipment for mounting on a TH35 mounting rail in accordance with DIN EN 60715, for a single module in modular design, cable access variable at 45° from above or below, plug-in direction inclined 45° downwards, the width of 1TE enables the installation of up to 12 REGs in standard electrical distribution boards, when installed as a device of protection class I, the potential equalization takes place via an integrated potential equalization plate directly above the mounting rail. The mounting rail must be integrated into the building potential equalization using appropriate measures. The device is protected from direct contact by a cover. When installed in protectively insulated distribution boards, protection class II is therefore maintained. For this, the equipotential bonding plate must be removed., integrated dust protection flap (also available in color), suitable modules for cable access 45° from above: C6, Amodul 180°, E-DAT module 8(8), E-DAT module coupling 180°, UAE module Cat.5e and Cat.6, OpDAT module LC-D and ST, coaxial modules and E2000 DC couplings, suitable modules for cable access 45° from below: C6, Amodul 270° and E-DAT module coupling 90°, not suitable for modules in Keystone design and C6, Amodul 90°!
