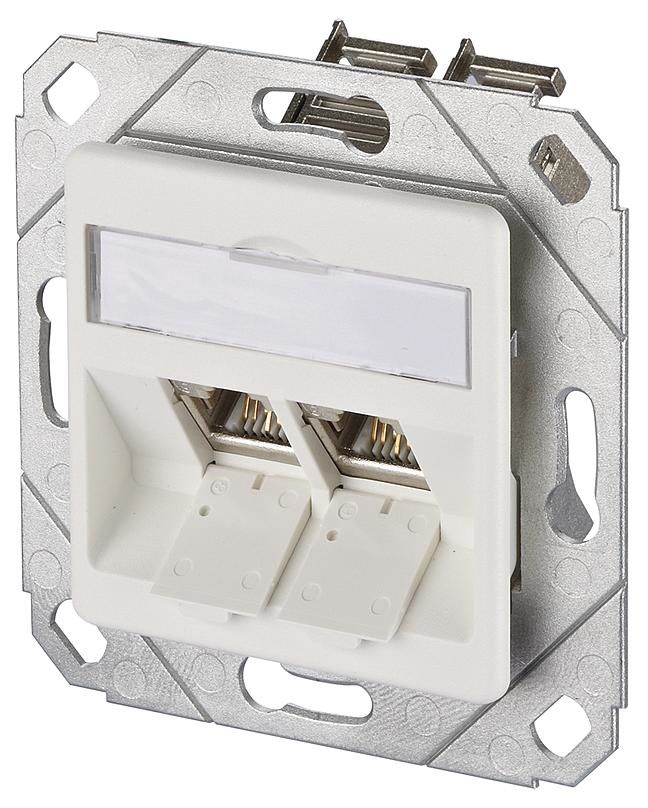

Metz Connect 1309121102-E BTR E-DAT module junction box 8/8 (8) Upk, Cat.6 data RAL 9010 130912 1102-E
|
17,71 EUR |
|||||||||||
|
( 21,07 EUR incl. VAT ) ≈ £15.05 | ≈ $19.89 plus delivery charges: 53,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline | |||||||||||
| In Stock: >100 pieces | |||||||||||
| Lieske Part No.: | 272484 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 1309121102-E | ||||||||||
| UPC/EAN: | 4250184105701 | ||||||||||
| Weight: | 0.1275 kg | ||||||||||
| Type: | 1309121102-E | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Metz Connect 1309121102-E:
E-DAT modul system
Outlets 8/8 (8)
- Connection unit with two 8-pin RJ45 jacks
Inclined towards the RJ45 plug connector 45 ° down -
- Installation-friendly connection of 2 - to 4-pair data cable AWG 22/24 to BTR-cutting clamps
- Wiring according to ISO / IEC 11801 50173-1
- Strain relief by cable ties at the module
- Contact spring for cable shield captive
- With window for port identification (labels included)
- Label sheet 209 x 294 mm see accessories
- Cat.6 / Class E Link Performance to ISO / IEC 11801: 9/2002 and EN50173-1: 2002
- Fully shielded modules
- EMC-safe according to EN 55022 B, EN 50082-1
- Suitable for DIN 49075 T2
- Integrated dust cover
- Color of the faceplates pearl white RAL RAL1013 or 9010, mat structured surface
- With central design plates of leading switch suitable, reference list and the Internet www.btr-itconnect.com
E-DAT modul 8/8 (8) UPk
Design: Cat. 6 Outlet
Color: pure white
Type: 1309121102 E-
Quantity: 1 unit.
Outlets 8/8 (8)
- Connection unit with two 8-pin RJ45 jacks
Inclined towards the RJ45 plug connector 45 ° down -
- Installation-friendly connection of 2 - to 4-pair data cable AWG 22/24 to BTR-cutting clamps
- Wiring according to ISO / IEC 11801 50173-1
- Strain relief by cable ties at the module
- Contact spring for cable shield captive
- With window for port identification (labels included)
- Label sheet 209 x 294 mm see accessories
- Cat.6 / Class E Link Performance to ISO / IEC 11801: 9/2002 and EN50173-1: 2002
- Fully shielded modules
- EMC-safe according to EN 55022 B, EN 50082-1
- Suitable for DIN 49075 T2
- Integrated dust cover
- Color of the faceplates pearl white RAL RAL1013 or 9010, mat structured surface
- With central design plates of leading switch suitable, reference list and the Internet www.btr-itconnect.com
E-DAT modul 8/8 (8) UPk
Design: Cat. 6 Outlet
Color: pure white
Type: 1309121102 E-
Quantity: 1 unit.
