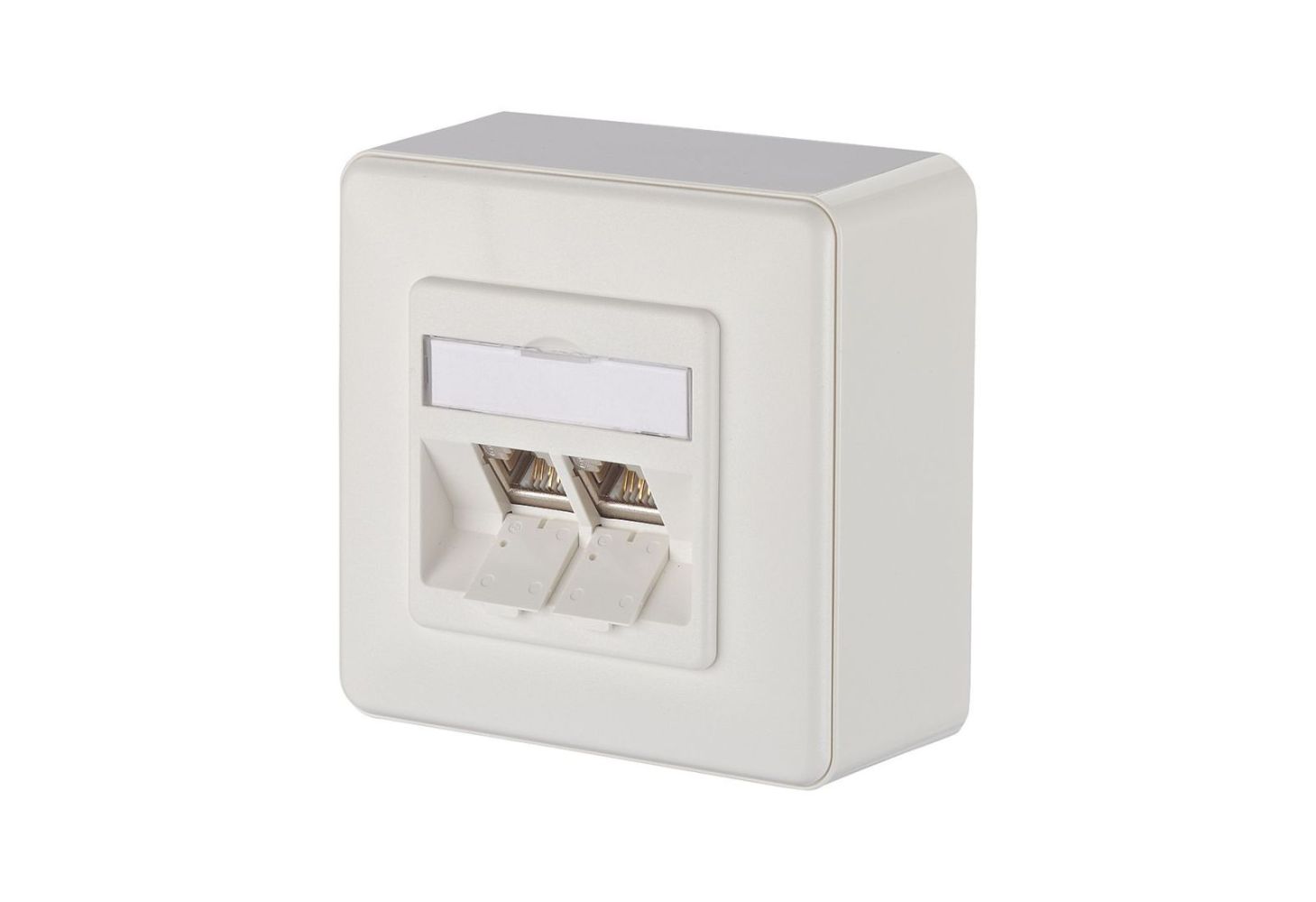

Metz Connect 1309120002-E BTR socket AP/2 pure white E-DAT module 2 ports Cat.6 Class E content_copy

The Metz Connect connection outlet type 1309120002-E is a modular network connection device of category Cat.6A, designed for use in passive network infrastructures with high quality requirements. The device serves as a connection point for data communication, including telephony, as well as for networks with bandwidths up to 10 Gbit/s. It also supports power supply over the network cable (PoE) with a maximum power of 90 watts, making it suitable for supplying IP cameras, access points, and other PoE-capable devices. The connection outlet is available in pure white finish and features two ports, with the mounting type AP (surface mount) specified.

Applications

The connection outlet is designed for use in office buildings, industrial facilities, schools, and other institutions where a reliable, high-quality network infrastructure is required. It is suitable for both standard network applications and demanding applications such as video surveillance, VoIP telephony, and wireless networks with PoE end devices. The robust construction and high quality of components make it particularly suitable for professional installations where long-term stability and low failure susceptibility are required.

Functions and equipment in detail

The module consists of two parts and is made of nickel-plated zinc die-cast, ensuring high mechanical stability and corrosion resistance. Installation can be carried out without special tools and can be quickly and error-free performed by installers. The BTR 8-way IDC stripping terminal technology enables a secure and reliable connection of network cables, where the cable ends are directly inserted into the terminals and fixed by pressure connection. This reduces the likelihood of errors during installation and ensures a stable electrical connection.

Technology explained simply

The connection outlet complies with the standards Cat.6/Class E up to 250 MHz, ensuring high data transfer rates and low signal interference. The standard ISO/IEC 11801:9/2002 is met, ensuring compatibility with modern network standards. The large-area 360-degree shielding connection provides effective shielding against electromagnetic interference (EMV), maintaining signal quality even in interference-prone environments. Compliance with standards EN 55022 and EN 50082-1 demonstrates conformity with the requirements of the EMV Act.

Compatibility and accessories

The connection outlet is compatible with various modules and accessories from the E-DAT system by Metz Connect. Compatible products include, for example, module 1309110002-E (1 port Cat.6A), module 1309150002-E (2 port unpopulated), module 130B11D20002-E (2 port 180° M AP), and connection outlet 130C380002-I (2 port Cat.6A). These modules can be combined according to requirements to create flexible and scalable network installations. The underfloor solution E-DAT subway is also available, enabling integration into floor cabling systems.

Mounting and installation

Installation is carried out in the surface mount variant (AP), where the module is directly mounted on the wall or another suitable substrate. The simple installation without special tools reduces installation time and minimizes the risk of errors. The robust construction from zinc die-cast ensures a long service life and high mechanical load capacity. The connection outlets are delivered in cardboard packaging with 10 pieces each, facilitating handling and storage in specialist trade.

Advantages in operation

The connection outlet offers high reliability due to its robust construction and high-quality materials. Continuous in-line quality control during production, as well as certification by independent testing laboratories, guarantees consistent product quality. Support for PoE up to 90 watts enables the supply of high-performance end devices without additional power supply. Simple installation and high fault resistance reduce installation costs and increase efficiency during network setup.

General
Category	Cat.6A
Port count	2
Mounting method	AP
Colour	Clear white
Material	zinc die-cast, nickel-plated
Technology	BTR 8-way IDC stripping clamp technology
Shield connection	360 degrees
PoE power	90 W
Data rate	10 Gbit/s
Frequency band	250 MHz
Norm	ISO/IEC 11801:9/2002
EMC standard	EN 55022, EN 50082-1

---
