Metz Connect 130863-01-E Cat.7 cable connector IP67

Your rating:
Average rating
product review for Metz Connect 130863-01-E Cat.7 cable connector IP67
( 4.7 / 5 ) 23 ratings

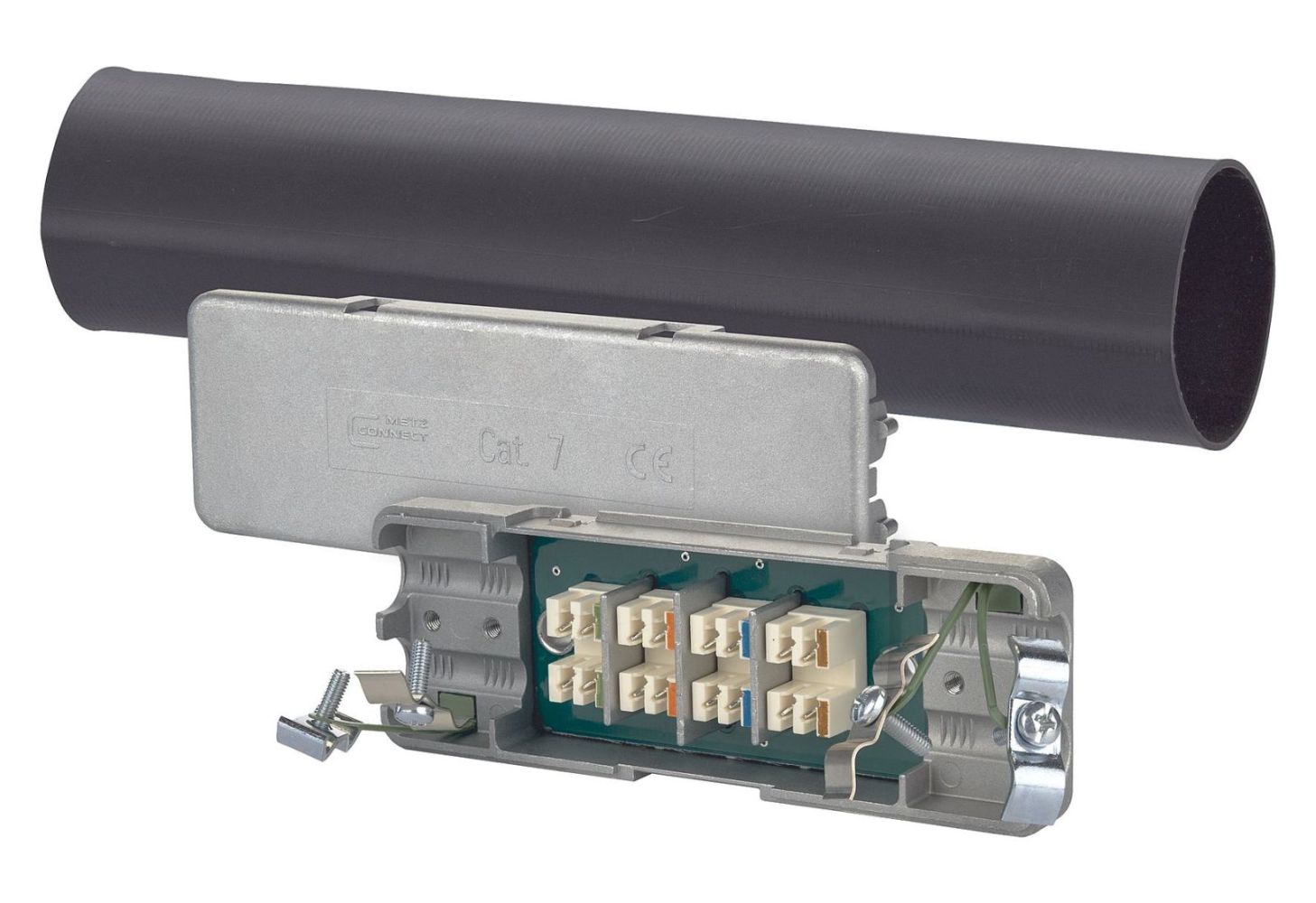

Metz Connect 130863-01-E
This image may differ from the desired article.
Metz Connect 130863-01-EMetz Connect 130863-01-E
32,42 EUR 32,42 EUR
( 38,58 EUR incl. VAT )
≈ £27.13  |  ≈ $35.63
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline
In Stock: >5 pieces
1x Metz Connect 130863-01-E Cat.7 cable connector IP67
Lieske Part No.:153072
Mfg Part No: 130863-01-E
UPC/EAN: 4250184113195
Weight:0.437 kg
Type:130863-01-E
Graduated prices net
From piecesPrice per pieces
1031,20 EUR
2529,99 EUR
5028,77 EUR
7527,56 EUR

Product information for Metz Connect 130863-01-E:

The cable connector 130863-01-E from Metz Connect is a fully shielded, metallic connection element for data lines up to Category 7. It is designed for connecting or extending network cables and is specifically intended for use in environments with high requirements for mechanical and electrical protection class. The device meets Class EA according to ISO/IEC 11801 when used in combination with cables of Categories Cat.6A to Cat.8 and Cat.6A connection technology. The IP67 protection rating is achieved through a special heat-shrink sleeve, which protects the device against dust and short-term water exposure, making it suitable for outdoor use or in damp indoor environments.

Applications

The cable connector is intended for connecting data lines in the range of cable categories Cat.6A to Cat.8. It is particularly used in installations where high mechanical load capacity and secure shielding are required, for example in industrial plants, outdoors, or in buildings with high electromagnetic interference. The IP67 protection rating allows use in damp or wet environments, with the special heat-shrink sleeve providing the necessary sealing.

Functions and Features in Detail

The connector allows connection of single-conductor data lines with a cross-section from AWG26/1 to AWG22/1. Cable entry is possible from one or both sides, enabling flexible installation in various scenarios. A special feature is Cable sharing, where an 8-conductor cable can be split into two 4-conductor cables. For this, a cable connector is required at both the input and output ends. The housing is fully shielded and made of metal, ensuring effective protection against electromagnetic interference. The strain relief is separated from the 360° shield connection to ensure a secure and durable connection. The shield connection is designed to be non-removable, ensuring a reliable electrical connection.

Technology Explained Simply

The IP67 protection rating means the device is dust-tight and can withstand short-term water exposure, such as splashing water or immersion up to 1 meter depth for a short time. This is achieved by the special heat-shrink sleeve, which contracts when heated to form a tight seal. The fully shielded metal construction ensures that electromagnetic interference from the environment or other lines cannot enter the cable system. The strain relief protects the cables from mechanical stress, especially during bending or pulling, and the separate 360° shield connection ensures a reliable electrical connection for the shield.

Compatibility and Accessories

The cable connector is compatible with data cables of categories Cat.6A to Cat.8. In combination with Cat.6A connection technology, Class EA according to ISO/IEC 11801 is achieved. As suitable accessories, the BTR connection module for Class F links is offered, which is suitable for connecting cables in Class F. These modules can be used additionally to adapt the connection solution to specific requirements.

Installation and Mounting

Installation is performed by inserting the cable connector into the line, with cables fed from one or both sides. The strain relief and shield connection must be correctly connected to ensure mechanical and electrical integrity. The special heat-shrink sleeve is heated after installation to create a tight seal. Installation requires no additional tools other than the heating device needed to shrink the sleeve.

Operational Advantages

The cable connector provides a reliable, durable connection with high mechanical and electrical stability. The IP67 protection rating enables use in demanding environments, while the fully shielded construction minimizes interference. The ability to split an 8-conductor cable into two 4-conductor cables increases flexibility in network installation. The non-removable strain relief and separate shield connection ensure a long-term stable connection that remains secure even under load.

General
Cable categoryup to Cat.7
Degree of protectionIP67
Connection cross sectionAWG26/1 - 22/1
Housingfully shielded metal
Shield connection360°, separate from strain relief
Sealingspecial shrink tube
CompatibilityCat.6A to Cat.8
ClassEA according to ISO/IEC 11801
Tension reliefYes
Cable sharingYes


Questions & answers

What is the delivery time of Metz Connect 130863-01-E Cat.7 cable connector IP67?

The article Metz Connect 130863-01-E Cat.7 cable connector IP67 is currently in stock

According to our experience the article is ready for dispatch within 7 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Metz Connect 130863-01-E to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Metz Connect 130863-01-E Cat.7 cable connector IP67 always at the best possible price. We can give you a discount of 2% on Metz Connect 130863-01-E Cat.7 cable connector IP67 if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 10 pieces of Metz Connect 130863-01-E Cat.7 cable connector IP67 we can offer you a price of 31,20 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
