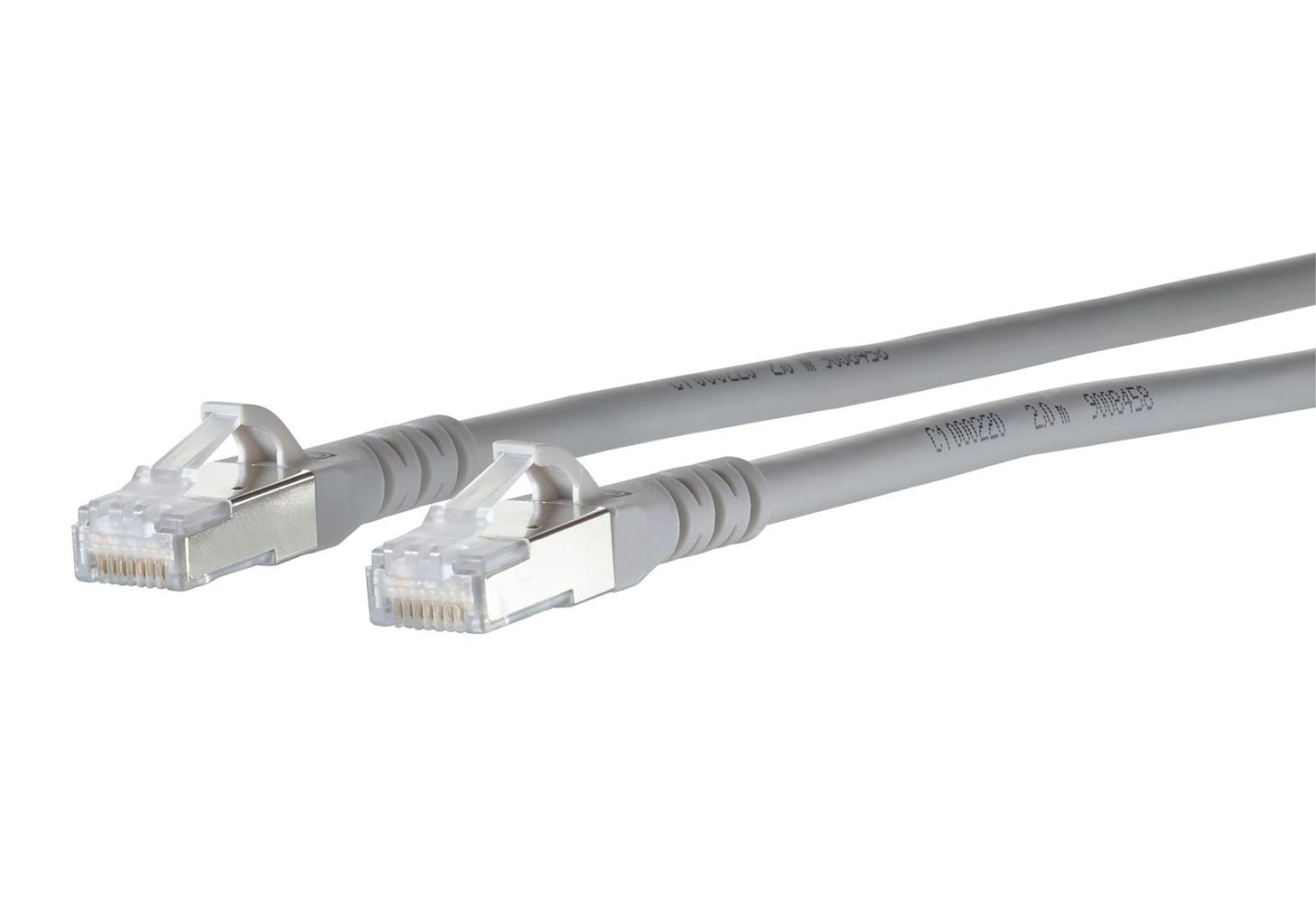

Metz Connect 1308451033-E Patch cable Cat.6A AWG 26 grey 1m content_copy

The Metz Connect patch cable type 1308451033-E is a fully shielded RJ45 network cable of category 6A, manufactured in AWG 26/7. It is designed for secure connection of network components and enables transmission of voice, data, audio/video, and PoE signals in bandwidth-intensive environments. The cable is specifically designed for integration into unshielded and shielded Class E, A systems and supports data transmission rates up to 10 GBit/s according to IEEE 802.3an. It is also suitable for remote powering, including PoE, PoE plus, and UPoE, as well as HDBaseT applications.

Applications
This patch cable is suitable for use in professional network infrastructures, particularly in environments with high requirements for signal integrity and electromagnetic compatibility. It is used in data centers, office buildings, industrial facilities, and other applications where reliable and high-speed data transmission is required. The use in shielded and unshielded systems of Class E and A is explicitly intended, increasing flexibility during installation.

Functions and Features in Detail
The cable features two shielded RJ45 connectors with wiring 1-1, ensuring standard network connectivity. The connectors are equipped with a molded strain relief boot that provides integrated latch protection. This protects the connection from mechanical stress and ensures a stable connection. The boot is designed to be the same width as the RJ45 connector, enabling a uniform appearance and improved handling. The cable is free of LaBS and halogen-free, enhancing safety in case of fire and improving environmental compatibility.

Technology Explained Simply
The fully shielded design (S/FTP) provides high protection against electromagnetic interference (EMI) and crosstalk, which is especially important at high transmission rates. Category 6A guarantees a bandwidth of up to 500 MHz, enabling 10 GBit Ethernet usage over short distances. The AWG 26/7 wiring refers to the wire gauge (26 AWG) and the number of wires per conductor (7), representing a balanced combination of flexibility and performance. Certification according to GHMT PVP confirms the product’s quality and reliability.

Compatibility and Accessories
The patch cable is compatible with unshielded and shielded Class E, A systems. It can be combined with other patch cables from the same series, available in various lengths (e.g. 0.5 m, 1.5 m, 2 m, 3 m, 4 m, 5 m, 7 m, 15 m) and colors (black, white, gray, red, blue, yellow, green, orange-black, violet-black, purple-black). Packaging units include either a single cable in a poly bag (ending -E) or ten pieces in a poly bag (ending -Z). The exact selection is made via a configurator.

Installation and Mounting
Installation is performed by simply plugging the RJ45 connectors into the corresponding sockets of the network components. The strain relief boot and integrated latch protection facilitate installation and ensure a secure connection. No special tools are required. The cables are intended for indoor use, although specific environments (e.g. outdoor, industrial applications) are not explicitly mentioned.

Operational Advantages
The fully shielded construction and high bandwidth ensure stable and interference-free data transmission. Support for PoE and HDBaseT expands application possibilities, as power supply and audio/video signals can also be transmitted via the network cable. The halogen-free and LaBS-free design increases safety in case of fire. The uniform width of connector and boot improves handling and appearance in cable management.

General
Cable type	Fully shielded RJ45 patch cable
Category	Cat.6A
AWG	26/7
Degree of protection	fully shielded (S/FTP)
Bandwidth	500 MHz
Data rate	10 GBit/s
Certification	GHMT PVP
Connector	two shielded RJ45 connectors
Circuitry	1 - 1
Bend protection	moulded sleeve with integrated latch protection
Material	LaBS-free, halogen-free
Compatibility	unshielded and shielded Class E, A systems
Application	10 GBit Ethernet (IEEE 802.3an), PoE, PoE plus, UPoE, HDBaseT
Colour	Grey

---
