Metz Connect 1105741306 BTR FAE4 two-wire transmission system, 0-10VDC or PT1000 35x70x65mm 4xNi1000

Your rating:
Average rating
Rating for Metz Connect 1105741306 BTR FAE4 two-wire transmission system, 0-10VDC or PT1000 35x70x65mm 4xNi1000
( 4.1 / 5 ) 8 ratings

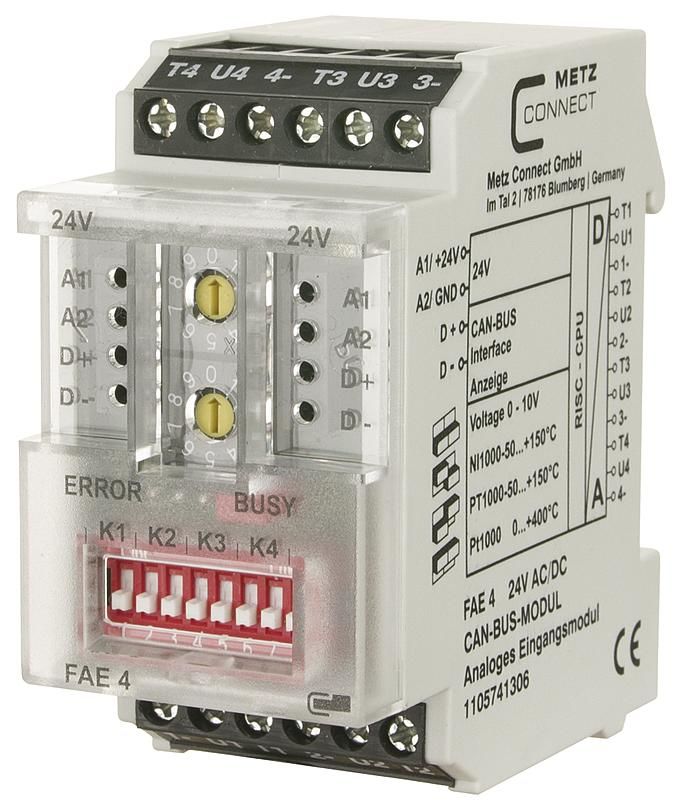

Metz Connect 1105741306
This image may differ from the desired article.
186,82 EUR
( 222,32 EUR incl. VAT )
2025-11-06Delivery time on requestinfo_outline
1x Metz Connect 1105741306 BTR FAE4 two-wire transmission system, 0-10VDC or PT1000 35x70x65mm 4xNi1000
Lieske Part No.:761278
Mfg Part No: 1105741306
UPC/EAN: 4250184122531
Weight:0.12 kg
Graduated prices net
From piecesPrice per pieces
5184,02 EUR
10181,22 EUR
15178,41 EUR
20175,61 EUR

Product information for Metz Connect 1105741306:

CAN module with 4 temperature and 4 voltage inputs. Suitable for recording temperatures with Ni1000 or PT1000 sensors and voltages from e.g. electric ventilation and mixing flaps, valve positions, etc. The field bus module is a universally applicable input module that is controlled via the CAN bus. The module is addressed via an adjustable address and the states of the inputs are transmitted in the data bytes. If one (or more) analog output modules with the same address are present in the system, the voltage at the corresponding output is simulated there. Each input can be set to 0 to 10 V DC, Ni1000 (-50 °C to 150 °C), PT1000 (-50 °C to 150 °C) or PT1000 (0 °C to 400 °C) using a DIP switch. Connection with screw terminals
Type: FAE4


Questions & answers

What is the delivery time of Metz Connect 1105741306 BTR FAE4 two-wire transmission system, 0-10VDC or PT1000 35x70x65mm 4xNi1000?

The article Metz Connect 1105741306 BTR FAE4 two-wire transmission system, 0-10VDC or PT1000 35x70x65mm 4xNi1000 is currently not in stock und muss auftragsbezogen bestellt werden.

According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Metz Connect 1105741306 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Metz Connect 1105741306 BTR FAE4 two-wire transmission system, 0-10VDC or PT1000 35x70x65mm 4xNi1000 always at the best possible price. We can give you a discount of 2% on Metz Connect 1105741306 BTR FAE4 two-wire transmission system, 0-10VDC or PT1000 35x70x65mm 4xNi1000 if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 5 pieces of Metz Connect 1105741306 BTR FAE4 two-wire transmission system, 0-10VDC or PT1000 35x70x65mm 4xNi1000 we can offer you a price of 184,02 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
