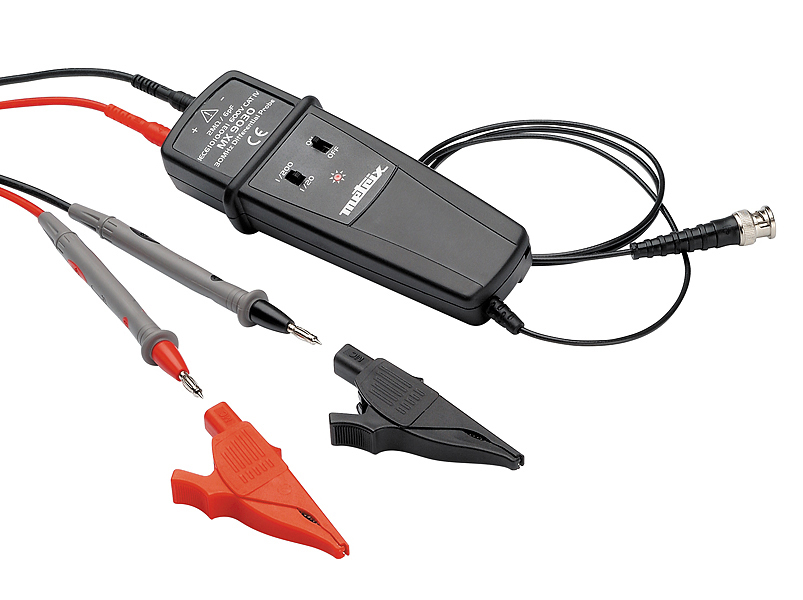

Metrix MX9030-Z MX 9030 differential voltage probe with BNC cable output
|
471,38 EUR |
|||||||||||
|
( 560,94 EUR incl. VAT ) ≈ £396.90 | ≈ $529.36 plus delivery charges: 53,00 € |
|||||||||||
| On order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 626204 | ||||||||||
| Mfg Part No: | MX9030-Z | ||||||||||
| UPC/EAN: | 3760171411797 | ||||||||||
| Weight: | 0.5 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Metrix MX9030-Z:
Highlights:
• Compliant with IEC 61010-1, CAT IV-2
• Enables the safe display of high differential voltages up to ± 600 V on an oscilloscope
• Bandwidth: 30 MHz
Description:
The MX 9030 differential voltage probe, which is standalone and connected to ground, is an essential accessory for Class 1 oscilloscopes to display signals without a ground reference. This probe attenuates and converts the input differential voltage into a low voltage available at the BNC output. It is powered by a 9 V battery and uses removable test leads with banana plugs connected at the rear of the device.
Technical Details:
• Bandwidth: 30 MHz• Attenuation ratio: 1/20 and 1/200
• Input: 1 differential channel / removable cables with banana plugs
• Differential input voltage ranges: ± 0.1 V to ± 600 V
• Input impedance: 2 MΩ – 6 pF
• Common mode rejection: 80 dB at 50 Hz, 50 dB at 1 MHz
• Oscilloscope output: ± 3 V with 1 MΩ load, approx. 1.10 m BNC cable
• Battery operation/life: 1 6LF22 9 V battery / 18 hours
• Installation category/EMC: IEC 61010-1 600 V CAT IV, EMC per DIN EN 61326-1
• Dimensions: 163 x 62 x 40 mm
• Weight: 195 g with battery
Questions & answers
What is the delivery time of Metrix MX9030-Z MX 9030 differential voltage probe with BNC cable output?
The article Metrix MX9030-Z MX 9030 differential voltage probe with BNC cable output is currently not in stock but has been backordered.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Metrix MX9030-Z to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Metrix MX9030-Z MX 9030 differential voltage probe with BNC cable output always at the best possible price. We can give you a discount of 2% on Metrix MX9030-Z MX 9030 differential voltage probe with BNC cable output if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of Metrix MX9030-Z MX 9030 differential voltage probe with BNC cable output we can offer you a price of 467,84 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
