Metrix HX0190 Connection card RJ 45 and SUBD 9-pin content_copy

The product HX0190 from Metrix is an interface card set as accessory or replacement part for SCOPIX BUS-oscilloscopes of the models OX 9302-BUS, OX 7202-BUS, and OX 7204-BUS. It serves to simplify connection to bus systems and enables flexible integration of the measuring devices into various measurement environments. The set consists of three different interface cards, each providing different connector types to facilitate connection to existing bus infrastructures.

Applications
This interface card set is specifically designed for users who employ SCOPIX BUS-oscilloscopes in industrial or technical measurement applications where a fast and reliable connection to a data bus is required. The cards act as adapters between the oscilloscopes and various bus systems, enabling integration into existing measurement networks without additional hardware or complex configurations. Their use is particularly beneficial in environments where multiple measuring devices communicate over a common bus, for example in production monitoring or electrical system diagnostics.

Functions and Equipment in Detail

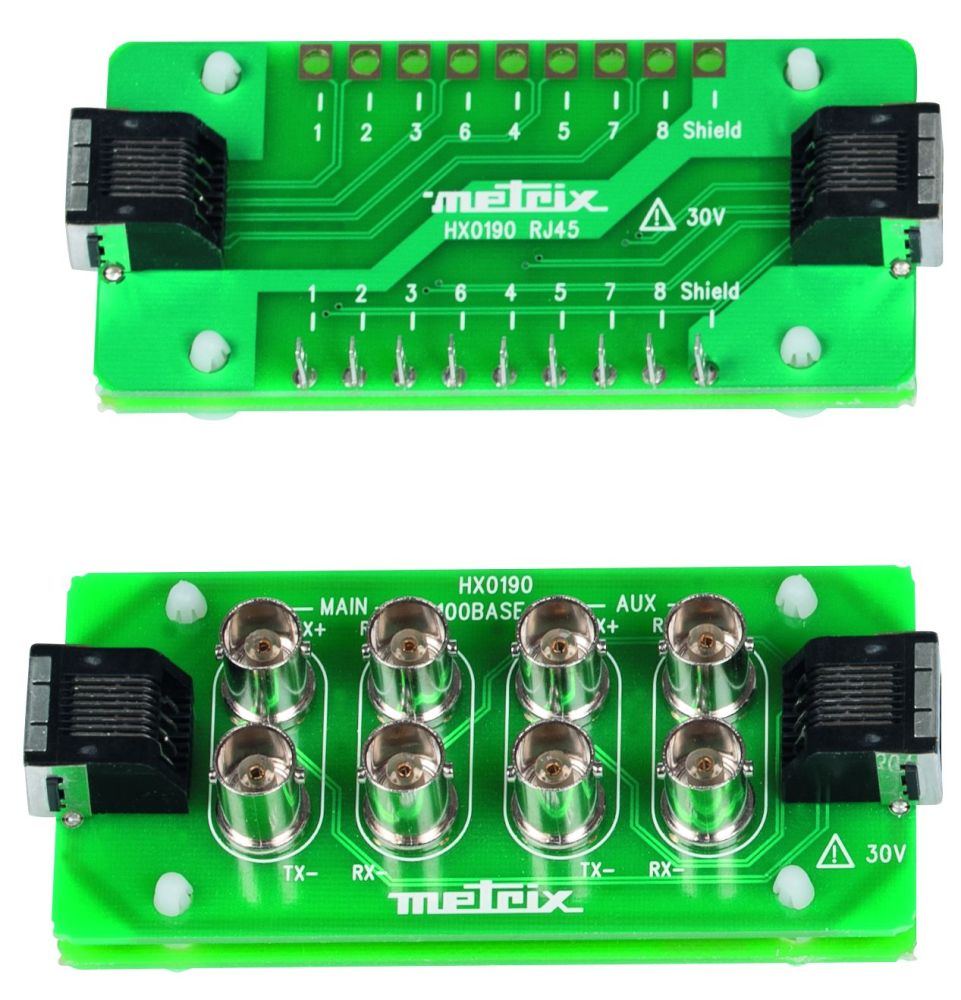

The set includes three interface cards with connector types RJ45, SUBD9, and 100NASE-T on BNC. These connectors enable direct connection to different bus systems, with RJ45 and SUBD9 connectors representing typical interfaces for data transmission. The 100NASE-T on BNC connector provides a specific interface designed for certain bus topologies. The cards are designed to ensure communication between the oscilloscope and the bus system, guaranteeing reliable data transmission.

Technology Explained Simply
The interface cards function as interface adapters, establishing the physical connection between the SCOPIX BUS-oscilloscope and the respective bus system. The connector types used – RJ45, SUBD9, and 100NASE-T on BNC – are standardized connection types used in various industrial and technical applications. The RJ45 interface, commonly used in networks, enables digital data transmission, while SUBD9 represents a serial interface often used in measurement and control systems. The 100NASE-T on BNC connector is a specific combination designed for certain bus systems. The cards are not responsible for power supply but are exclusively for data transmission.

Compatibility and Accessories
The interface card set is compatible with SCOPIX BUS-oscilloscopes of the models OX 9302-BUS, OX 7202-BUS, and OX 7204-BUS. It is intended as a replacement part or accessory to extend the connection options of these devices. The cards are not designed for other oscilloscope models or other devices. Installation is performed directly on the device without additional configuration or external power supply.

Installation and Mounting
Installation is carried out by directly inserting the respective interface card into the corresponding socket of the SCOPIX BUS-oscilloscope. The cards are designed for tool-free installation without additional aids. Connection to the bus system is made via the respective connectors (RJ45, SUBD9, 100NASE-T on BNC). The documentation included in the delivery contains instructions for correct installation and use.

Operational Advantages
Using the interface card set reduces complexity when integrating SCOPIX BUS-oscilloscopes into existing bus systems. The flexible selection of connector types allows adaptation to different infrastructures, reducing connection time and minimizing wiring errors. The reliable data transmission ensures stable communication between the measuring device and the bus system, which is essential for accurate measurement results. The cards are available as replacement parts, enabling quick restoration of functionality in case of wear or loss.

Scope of Delivery
The product is delivered as a set with three interface cards (RJ45, SUBD9, 100NASE-T on BNC). Additionally, documentation is included, describing installation and use.
