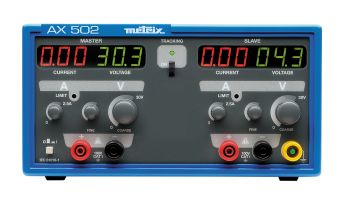

Metrix AX0502A AX 502 lab power supply 2 x 30 V content_copy

The Metrix AX0502A is a two-channel laboratory power supply designed for precise electronic applications. It provides two independently adjustable outputs, each delivering voltages from 0 to 30 V DC and currents up to 2.5 A. The linear technology ensures high signal stability and minimal noise generation, making it particularly suitable for sensitive measurement and development tasks. The device features a robust construction and low radiation emission, enabling its use in various technical working environments.

Applications
This power supply is intended for use in laboratory environments, electronic device development, and maintenance and testing processes in the field of measurement technology. The stable and noise-free power supply enables precise measurements and prevents interference in sensitive circuits. The two independent outputs allow simultaneous power supply to different modules with varying voltage and current values.

Functions and Equipment in Detail

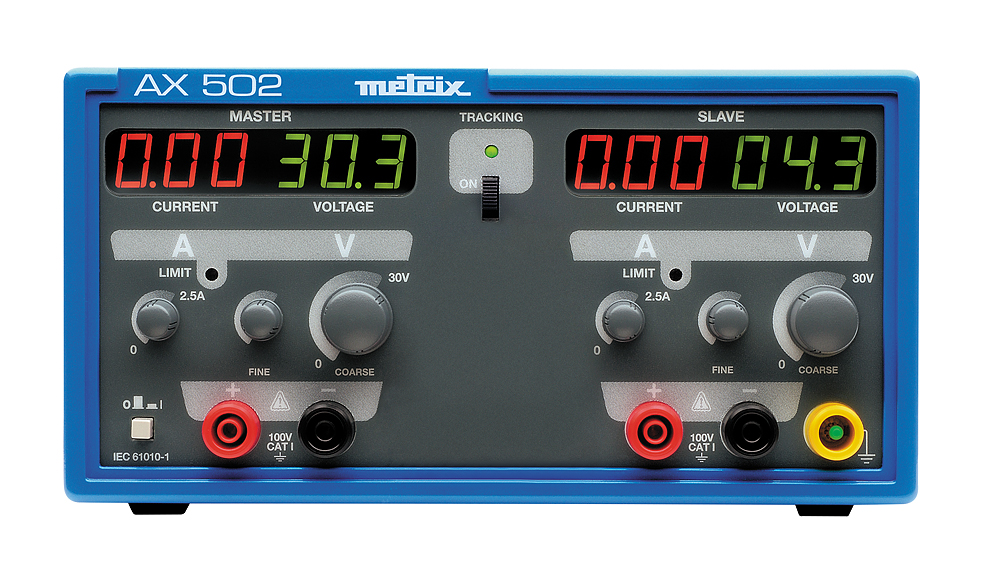

The voltage and current displays are color-coded for quick and safe reading. The outputs are fully protected and use double-insulated safety sockets, including a protected grounding terminal, to ensure operational safety. An integrated protection mechanism electronically limits current in case of short circuits and regulates temperature during overload and overheating, protecting the device and connected components.

Technology Explained Simply
The linear technology operates without a switching regulator, ensuring particularly stable and low-noise output voltage. This is crucial for applications where interference could affect measurement results. The use of a toroidal transformer with high efficiency enables a compact design, low weight, and quiet operation, as forced ventilation is not required. The low radiation emission reduces electromagnetic interference with other devices in the working environment.

Compatibility and Accessories
Compatible measurement leads, socket/socket, green/yellow (5 pieces), are available for use with the AX0502A. These are suitable for safe and reliable connection of the outputs to measuring instruments or modules. Combining the device with these leads enables efficient and interference-free power supply in laboratory and testing environments.

Mounting and Installation
The device is designed as a benchtop unit and requires no special mounting. It is directly connected to the mains power supply and operated via rotary controls. The safety sockets and protected grounding terminal facilitate secure connection to connected devices.

Operational Advantages
The combination of stable output voltage, noise-free power supply, and comprehensive protection mechanism ensures reliable and safe operation. Simple operation via rotary controls and color-coded displays reduces the risk of errors during adjustment. The quiet operation and low heat generation due to the fanless toroidal transformer enable continuous operation without additional cooling measures.
