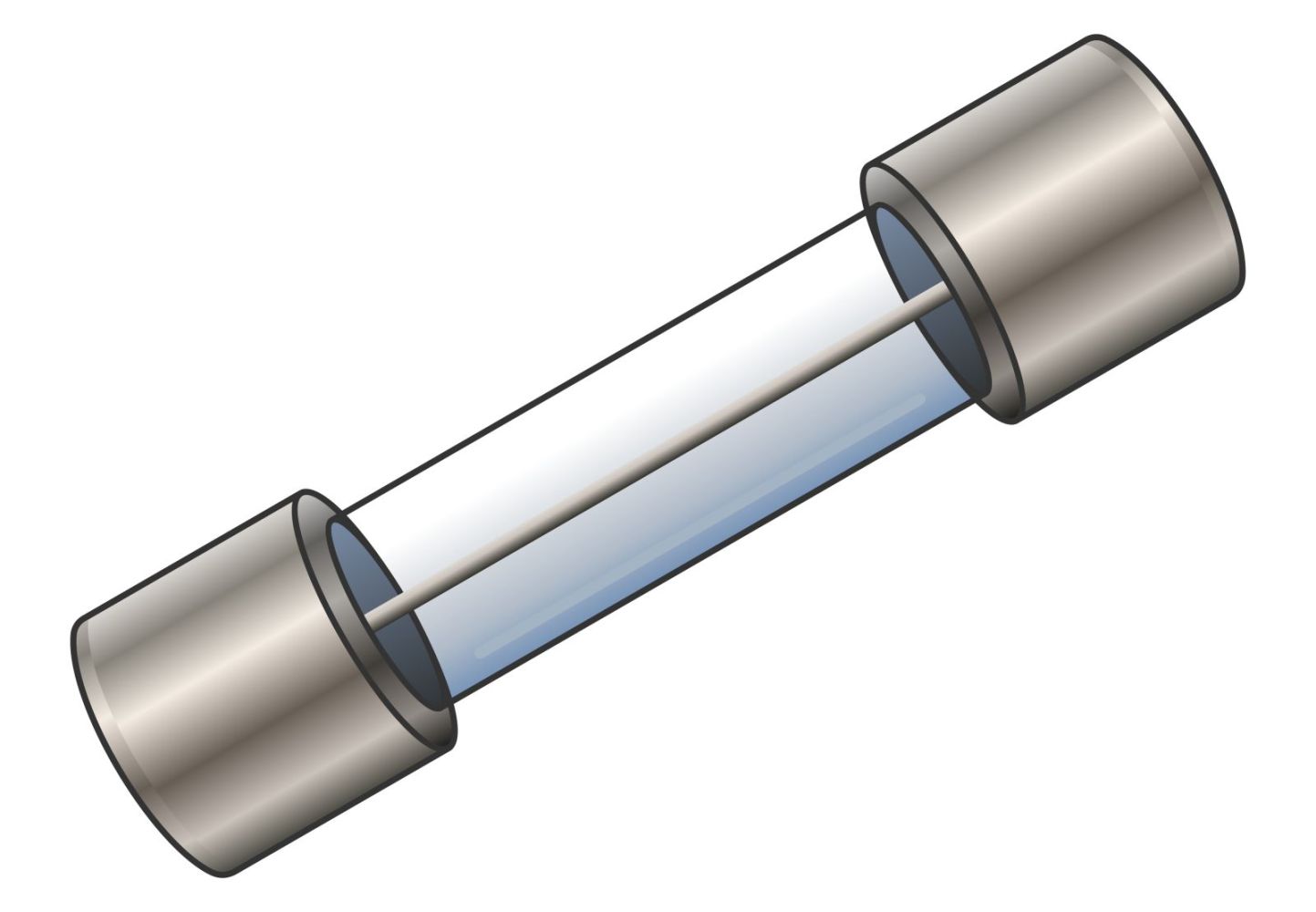

Metrix AT0071 1 pc fuse medium slow 1.6 A (600 V / 6x32 mm) content_copy

This replacement fuse from Metrix is specifically developed for use in measuring instruments and serves as a protective component against excessive current loads. The product is intended for use in the measuring instrument type MX 1 and features a compact design in the 6 x 32 mm format, allowing it to be mounted in standard fuse holders. The fuse features a medium-time delay tripping characteristic, which monitors current load evenly and interrupts the circuit only in case of sustained overload. This is particularly important in applications where short-term current surges may occur without triggering an unwanted shutdown. The rated voltage is 600 V, making the fuse suitable for use in environments with high electrical voltages. The rated current is defined as 1.6 A, indicating the maximum current strength the fuse can handle continuously without tripping. The product is supplied as a single unit.

Applications

The fuse is primarily intended for use in measuring instruments of type MX 1, particularly in multimeters, where it functions as a protective component for electronic circuits. It protects the device from damage caused by overvoltage or short circuits, which may result from external faults or incorrect operation. The application is in industrial, craft, or laboratory environments where precise measurements are required and devices may be subjected to high electrical loads.

Functions and Equipment in Detail

The fuse features a medium-time delay tripping characteristic, meaning it does not immediately trip during short-term current surges but only in case of sustained overload. This prevents unnecessary shutdowns under normal operating conditions. The rated voltage of 600 V ensures the fuse operates safely even in environments with high electrical voltages. The rated current of 1.6 A defines the maximum current strength the fuse can withstand continuously. The dimensions of 6 x 32 mm correspond to the standard fuse format used in many measuring instruments and electronic devices.

Technology Explained Simply

The medium-time delay tripping characteristic is an important feature that determines the fuse’s response to current overloads. Unlike fast-acting fuses, which react to every current surge, a medium-time delay fuse remains active during short-term loads to avoid disrupting device functionality. The rated voltage of 600 V indicates the fuse is designed for use in electrical systems operating up to this voltage. The dimensions 6 x 32 mm are a standard size used in many fuse holders, ensuring compatibility with various devices.

Compatibility and Accessories

The fuse is specifically developed for use in the measuring instrument type MX 1. There are no further compatibility details or accessory items mentioned in the text. The fuse is used exclusively as a replacement fuse for the specified device.

Installation and Mounting

Installation is performed by inserting the fuse into the designated fuse holder of the MX 1 measuring instrument. The compact design of 6 x 32 mm allows for easy and secure mounting. No additional tools or mounting aids are required. The fuse is directly inserted into the holder, ensuring correct alignment to guarantee safe current conduction.

Advantages in Operation

The fuse provides reliable protection for the MX 1 measuring instrument against electrical overloads. The medium-time delay tripping characteristic prevents unnecessary shutdowns during short-term current surges, enhancing operational safety. The high rated voltage of 600 V enables use in demanding electrical environments. The standard dimensions of 6 x 32 mm ensure universal compatibility with common fuse holders. The product is supplied as a single unit, making replacement installation simple and direct.

General
Rated voltage	600 V

---
