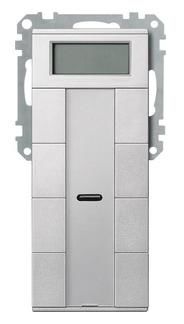

Merten MEG6214-0460 button 4-gang plus, m.RTR aluminum system M

In the design system M. Convenient control unit with 8 control buttons, operating and status display and label field. The operating display can also be used as an orientation light. With room temperature controller and display. With integrated piezo buzzer to display alarm states and IR receiver. All functions of the respective buttons can be controlled using the IR remote control. With 9 red LEDs. The room temperature controller can be used for heating and cooling with continuously adjustable KNX actuators or for controlling switching actuators and heating actuators. With white backlit display to show e.g. time, date, temperature and operating mode. Menu for setting standard operating modes, setpoint, working day/non-working day (external control), display mode, time, switching times and brightness of the display. The buttons can be freely parameterized as a pair of buttons (two-surface) or as individual buttons. With integrated bus coupler. The bus connection is made via a bus connection terminal. Software functions KNX functions Button switching, toggle, dimming, blinds (relative or absolute), edges trigger 1, 2, 4 or 8-bit telegrams (distinction between short/long operation). Edges with 2-byte telegrams (distinction between short/long operation), 8-bit slider, scene recall, scene storage, lock function. Time control with synchronization, reporting function, cyclical reading of external temperature value, fan control, operating modes, setpoint shift. Room temperature controller functions Controller type 2-point control, continuous PI control, switching PI control (PWM). Output Continuous in the range 0-100% or switching ON/OFF. Controller mode -Heating with one controller output. Cooling with one controller output. Heating and cooling with separate controller outputs. Heating and cooling with one controller output. 2-stage heating with 2 controller outputs. 2-stage cooling with 2 controller outputs. 2-stage heating and cooling with 4 controller outputs. Operating modes comfort, comfort extension, standby, night reduction, frost/heat protection. Shifting of all setpoints. Saving of all setpoint temperatures and operating modes on reset. Monitoring of external temperature. Additional output of the control variable as a 1-byte value with PWM. Reporting function for actual temperature, valve protection functionxx Scene function. Operation menu. To be completed with 1-M frame, 2-way without center bar 3898xx ATELIER-M frame, 2-way without center bar 3888xx M-SMART frame, 2-way without center bar 4788xx, 4848xx. M-PLAN frame, 2-way without center bar 4888xx, 5158xx M-PLAN real glass frame, 2-way without center bar 4878xx M-PLAN metal frame, 2-way without center bar 4758xx Transmitter IR universal remote control MEG5761-0000. Radio universal remote control CONNECT MEG5051-0000. Scope of delivery With bus connection terminal and support plate. With screw for dismantling protection. With plaster protection cover. Material Thermoplastic, matt. Color aluminum.
