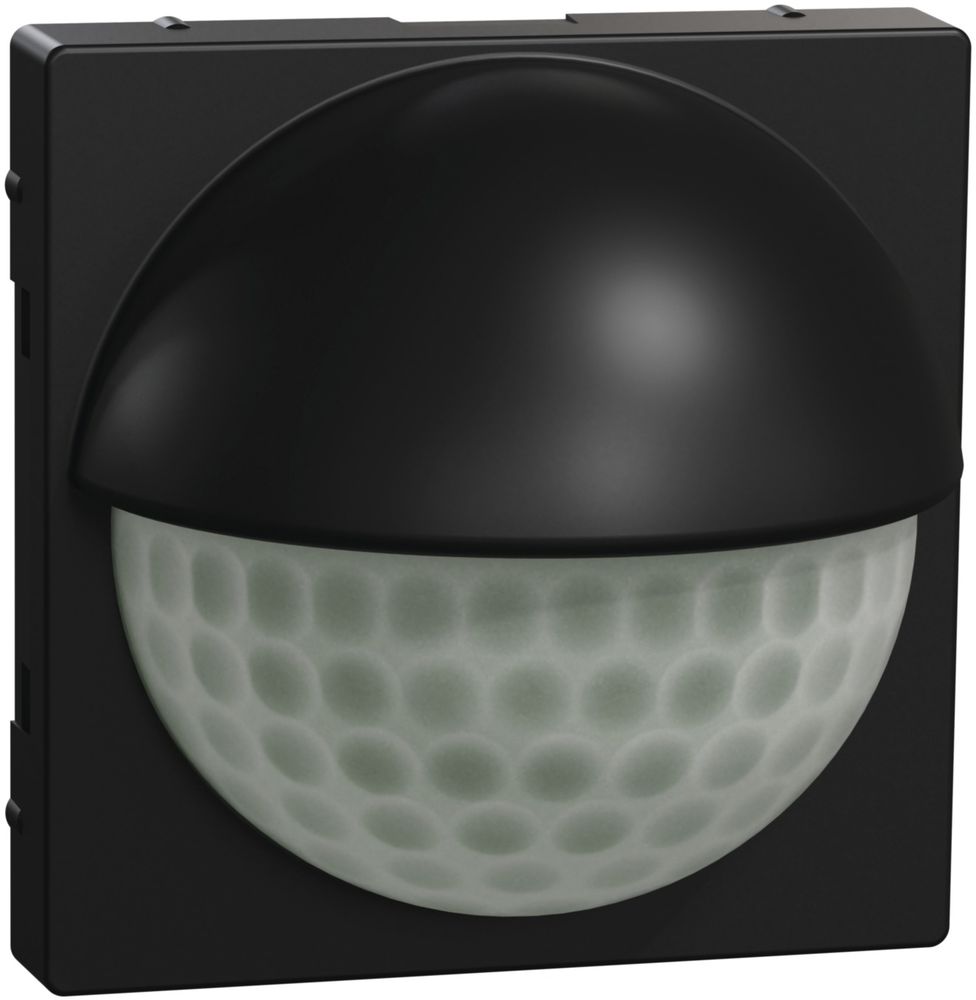

Merten MEG5710-0403 ARGUS 180 UP sensor module matt black System M

For System M. The cover is made from recycled material consisting of industrial waste. The color is black based on RAL9005 with a matt surface due to the paint. The product has been developed for use with IP20 for flush or surface mounting. Motion detector for indoor use with creep-under protection. The sensor module detects moving heat sources (e.g. people) in an adjustable detection area and starts a stairwell lighting time. The sensor module has a light sensor with an adjustable brightness threshold so that the lighting is only switched on below a certain brightness thresholdxx Switchable presence function. Functions Brightness-dependent stairwell lighting function -Electronic switching insert. Relay switching insert. Universal dimmer insert. Control insert 1-10 V. DALI control insert. Brightness-dependent stairwell lighting function with channel 1, brightness-independent stairwell lighting function with channel 2 -Electronic switching insert, 2-way. Relay switch insert, 2-way. Universal dimmer insert, 2-way. Detection range 180 degrees. Number of levels 6. Number of zones 46. Recommended installation height 1.1 m. Range 8 m right/left, 12 m forward. Sensitivity continuously adjustable. Light sensor continuously adjustable from approx. 10 to approx. 1000 lux. Time continuously adjustable from approx. 10 s to approx. 30 min. To be completed with central unit insert MEG5190-0000. Electronic switch insert MEG5151-0000. Electronic switch insert, 2-way MEG5152-0000. Relay switch insert MEG5161-0000. Relay switch insert, 2-way MEG5162-0000. Universal dimmer insert MEG5171-0000. Universal dimmer insert, 2-way MEG5172-0000. Control insert 1-10 V MEG5180-0000. DALI control insert MEG5185-0000. Material: matt thermoplastic. Color: matt black.
Type: MEG5710-0403
