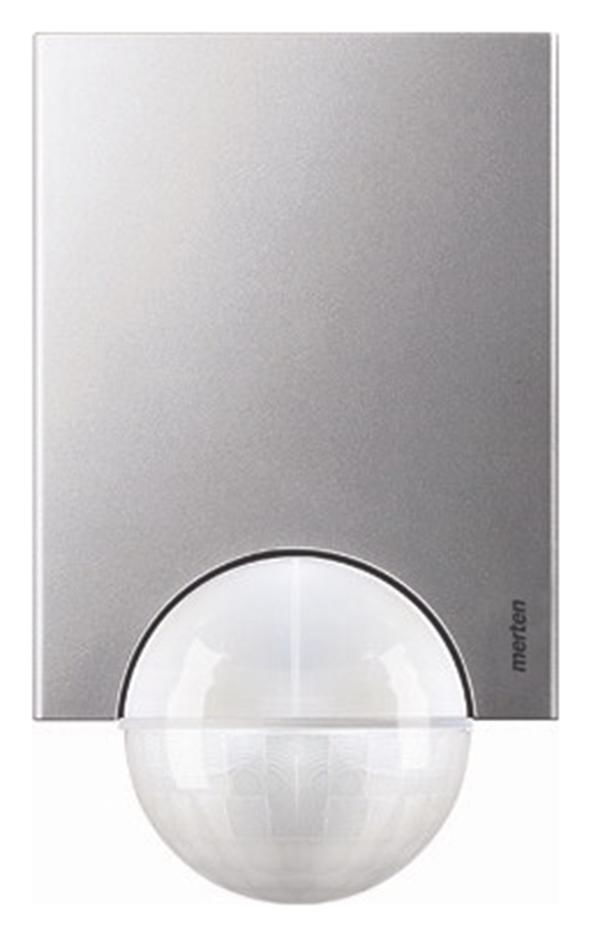

Motion detector for outdoor use. 220 degree area monitoring for larger house fronts and areas of the house. With integrated interface for expansion with a radio module (wireless connection of several devices). 360 degree close protection zone (approx. 4 m radius). Large connection space and plug-in system. Looping possible. LED function display for quick alignment at the installation location. Control elements are protected under the easily accessible cover plate. Flexibly adjustable sensor head. Hiding individual lens areas possible. Wall and ceiling mounting without additional accessories. Fastening to outside/inside corners and stationary pipes with a mounting bracket. Functions: With the integrated radio module, the following functions can be implemented via radio: Permanent ON, Permanent OFF and AUTOMATIC. Nominal voltage: AC 220/230V AC, 50 Hz. Nominal current: 10 AX, AC 230 V, cos Phi 0.6. Incandescent lamps: AC 230 V, max. 2200 W. HV halogen lamps: AC 230 V, max. 2000 W. NV halogen lamps: AC 230 V, 500 VA with wound transformer. AC 230 V, 1050 W with electronic transformers. Capacitive load: 10 A, max. 140 uF. Energy saving lamps: AC 230 V, max. 100 VA. Motor load: AC 230 V, max. 1000 VA. Own consumption: < 1 W. Detection angle: 220 degrees. Range: max. 16 m. Number of levels: 7. Number of zones: 112 with 448 switching segments. Light sensor: continuously variable from 3-1000 lux. Switching time: 1 s to approx. 8 min in 6 levels. Sensitivity: continuously adjustable. Neutral conductor: required. Sensor head adjustment for wall mounting: 9 degrees up, 24 degrees down, 12 degrees right/left, +/-12 degrees axial. Sensor head adjustment for ceiling mounting: 4 degrees up, 29 degrees down, 25 degrees right/left, +/-8.5 degrees axial. EC directives: Low Voltage Directive 2006/95/EC and EMC Directive 2004/108/EC. Protection class: IP 55. Dimensions: 151x93x71 mm (HxWxD). Accessories: Mounting bracket 565291/92/93. Capacitor 542895. Scope of delivery: With cover plate and segments to limit the detection area, screws and dowels. Color: aluminum.
Type: MEG5628-3160
Please note...
We have listed this article as 'end-of-life', which means that it will only be sold until it is completely sold out ! Please mind that we cannot guarantee you, you will receive the article, although it may be betokened as available. You can find the date from when the article was marked end-of-life to the top.
Questions & answers
What is the delivery time of Merten MEG5628-3160 ARGUS 220, aluminum, ARGUS 220, aluminum?
The article Merten MEG5628-3160 ARGUS 220, aluminum, ARGUS 220, aluminum is currently
not in stock but has been backordered.
According to our experience the article is ready for dispatch within 9 working days.
The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time.
Just send us an inquiry about the desired quantity of Merten MEG5628-3160 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Merten MEG5628-3160 ARGUS 220, aluminum, ARGUS 220, aluminum always at the best possible price. We can give you a discount of 2% on
Merten MEG5628-3160 ARGUS 220, aluminum, ARGUS 220, aluminum if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Merten MEG5628-3160 ARGUS 220, aluminum, ARGUS 220, aluminum we can offer you a price of 153,46 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
