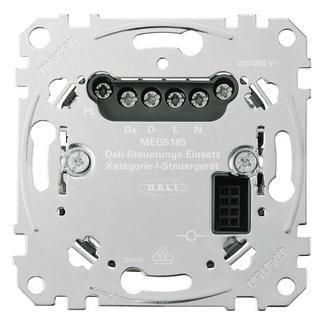

Merten MEG5185-0000 DALI control insert
|
159,60 EUR |
|
|
( 189,92 EUR incl. VAT ) ≈ £136.78 | ≈ $181.31 plus delivery charges: 83,00 € |
|
| Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline | |
| In Stock: >5 pieces | |
| End-Of-Life: | 29. Jul 2026 |
|---|---|
| Lieske Part No.: | 291818 |
| Mfg Part No: | MEG5185-0000 |
| UPC/EAN: | 4042811164683 |
| Weight: | 5.3 kg |
Further Electronic Ballast from MertenFurther products in category Electronic Ballast
All products of Merten
Product information for Merten MEG5185-0000:
For controlling up to 15 DALI electronic ballasts. With claw and screw fastening. With screw terminals. Functions: -Switching and dimming of DALI electronic ballasts. The module determines how the function of the insert is used. External control via a PlusLink input. Overload and short-circuit proof. Memory function. Up to 6 DALI control inserts can be connected to a DALI line, but the maximum number of 64 DALI electronic ballasts and 300 m cable length must not be exceeded. Nominal voltage: AC 220/230 V, 50/60 Hz. Type: Category I control device. Load type: max. 15 adjustable DALI electronic ballasts. DALI output current: max. 30 mA. DALI output voltage: DC 15 V. Neutral conductor: required (3-conductor system). Connection cross-section: max. 2x2.5 mm². To be completed with: Button module Basic, 1-way System M MEG5110-0300, System Design MEG5110-60xx Button module Basic, 2-way System M MEG5120-0300, System Design MEG5120-60xx. Button module Comfort, 1-way System M MEG5111-0300, System Design MEG5111-60xx Button module Comfort, 2-way System M MEG5121-0300, System Design MEG5121-60xx Button module Comfort Plus with IR, 1-way System M MEG5112-0300. Button module Comfort Plus, 2-way System M MEG5122-0300. Wiser button module, 1-way System M MEG5113-0300, System Design MEG5113-60xx Wiser button module, 2-way System M MEG5123-03xx, System Design MEG5123-60xx Rotary control module System M MEG5252-03xx/-04xx. ARGUS 180 UP sensor module System M MEG5710-03xx/-04xx, System Design MEG5710-60xx ARGUS 180 UP sensor module with switch System M MEG5711-03xx/-04xx, System Design MEG5711-60xx. ARGUS presence 180/2.20 m flush-mounted sensor module System M MEG5530-03xx/-04xx ARGUS presence sensor module with IR MEG5522-00xx Standard timer module System M MEG5754-03xx/-04xx. Timer module System M MEG5755-03xx/-04xx, System Design MEG5755-60xx. Transmitter: Extension unit Plus, 1-way System M MEG5119-0300, System Design MEG5119-60xx Extension unit Plus, 2-way System M MEG5129-0300, System Design MEG5129-60xx Central unit insert MEG5190-0000. Accessories: PlusLink distributor (3 phases) MEG5130-0001. PlusLink extension MEG5130-0000.
Please note...
We have listed this article as 'end-of-life', which means that it will only be sold until it is completely sold out ! Please mind that we cannot guarantee you, you will receive the article, although it may be betokened as available. You can find the date from when the article was marked end-of-life to the top.
Questions & answers
What is the delivery time of Merten MEG5185-0000 DALI control insert?
The article Merten MEG5185-0000 DALI control insert is currently in stock
According to our experience the article is ready for dispatch within 2 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Merten MEG5185-0000 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Merten MEG5185-0000 DALI control insert always at the best possible price. We can give you a discount of 2% on Merten MEG5185-0000 DALI control insert if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
