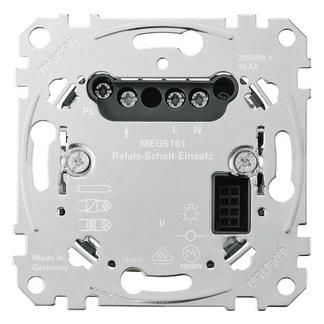

For ohmic, inductive and capacitive loads such as incandescent lamps, energy-saving lamps, low-voltage halogen lighting with conventional transformers, electronic transformers, fluorescent lamps. With claw and screw fastening. With screw terminals. Functions: -Switching from one output. The module determines how the function of the insert is used. External control via a PlusLink inputxx Nominal voltage: AC 220/230 V, 50/60 Hz. Nominal current: max. 10 AX, cos Phi 0.6. Outputs: 1x normally open contact. Max. switching capacity per channel: Incandescent lamps: 2200 W. HV halogen lamps: 2000 W. Low-voltage halogen lamps with wound transformer: 500 VA. Electronic transformers: 1050 W. Capacitive load: 10 A, 140 uF. Energy-saving lamps: 100 VA. Motor load: 1000 VA. Neutral conductor: required (3-conductor system). Connection cross-section: max. 2x2.5 mm². To be completed with: Basic button module, 1-way System M MEG5110-0300, System Design MEG5110-60xx Basic button module, 2-way System M MEG5120-0300, System Design MEG5120-60xx. Comfort button module, 1-way System M MEG5111-0300, System Design MEG5111-60xx Comfort button module, 2-way System M MEG5121-0300, System Design MEG5121-60xx Comfort Plus button module with IR, 1-way System M MEG5112-0300. Comfort Plus button module, 2-way System M MEG5122-0300. Wiser button module, 1-way System M MEG5113-0300, System Design MEG5113-60xx Wiser button module, 2-way System M MEG5123-03xx, System Design MEG5123-60xx Rotary control module System M MEG5252-03xx/-04xx. ARGUS 180 UP sensor module System M MEG5710-03xx/-04xx, System Design MEG5710-60xx ARGUS 180 UP sensor module with switch System M MEG5711-03xx/-04xx, System Design MEG5711-60xx. ARGUS presence 180/2.20 m flush-mounted sensor module System M MEG5530-03xx/-04xx ARGUS presence sensor module with IR MEG5522-00xx Standard timer module System M MEG5754-03xx/-04xx. Timer module System M MEG5755-03xx/-04xx, System Design MEG5755-60xx. Transmitter: Extension unit Plus, 1-way System M MEG5119-0300, System Design MEG5119-60xx Extension unit Plus, 2-way System M MEG5129-0300, System Design MEG5129-60xx Central unit insert MEG5190-0000. Accessories: PlusLink distributor (3 phases) MEG5130-0001. PlusLink extension MEG5130-0000.
Questions & answers
What is the delivery time of Merten MEG5161-0000 relay switching, application?
The article Merten MEG5161-0000 relay switching, application is currently
in stock
According to our experience the article is ready for dispatch within 1 working days.
The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time.
Just send us an inquiry about the desired quantity of Merten MEG5161-0000 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Merten MEG5161-0000 relay switching, application always at the best possible price. We can give you a discount of 2% on
Merten MEG5161-0000 relay switching, application if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 6 pieces of Merten MEG5161-0000 relay switching, application we can offer you a price of 83,85 EUR per piece. The more you buy, the cheaper the article will be.
You can also send us a price proposal for your desired quantity of Merten MEG5161-0000 relay switching, application via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
