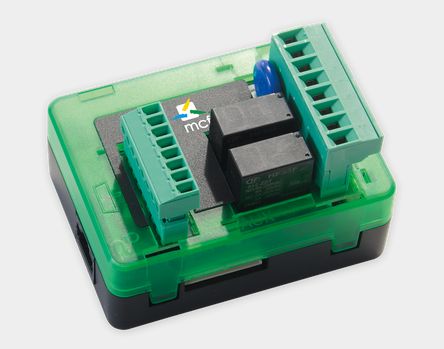

MCF88 LoRa LoRaWAN Serial to LoRaWAN® interface with Input/Output capability
|
229,60 EUR |
|
|
( 273,22 EUR incl. VAT ) ≈ £198.37 | ≈ $266.34 plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 1788914 |
|---|---|
| Mfg Part No: | MCF-LW06KIO |
| Weight: | 0.3 kg |
Product information for MCF88 MCF-LW06KIO:
This interface can be connected via RS232 serial port to send and receive data through the LoRaWAN® platform. The device has a serial proprietary mcf168 protocol (available on request).
The interface has five opto isolated inputs (4 working with low voltage, one working at 230VAC) and 2 relay outputs.
Applications:
Remote industrial interface Remote process supervisor Datalogger
Technical Data:
CPU Cortex M4 RTC EEProm 32KB Flash 1MB Encryption AES 128 bit LiPo rechargeable battery Class C LoRaWAN® stack @868MHz Serial interfaces: RS232 USB On The Go IoT node setup ad firmware upgrade via USB interface 4 opto-isolated inputs working range 5-24Vac/dc 1 opto-isolated input working at 230Vac 2 relay output with COM, NO, NC contacts carrying 5Amp@230Vac External power supply 10-36Vdc Storage temperature range -20 + 80 °C Working temperature range -10 + 70 °C Dimensions L x HXP: 81 x 60 x 24mm
Questions & answers
What is the delivery time of MCF88 LoRa LoRaWAN Serial to LoRaWAN® interface with Input/Output capability?
The article MCF88 LoRa LoRaWAN Serial to LoRaWAN® interface with Input/Output capability is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 11 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of MCF88 MCF-LW06KIO to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you MCF88 LoRa LoRaWAN Serial to LoRaWAN® interface with Input/Output capability always at the best possible price. We can give you a discount of 2% on MCF88 LoRa LoRaWAN Serial to LoRaWAN® interface with Input/Output capability if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
