MASCOT power supply 9623 198-264VAC to 13,2VDC / 7A / 95W cable connection secondary side content_copy

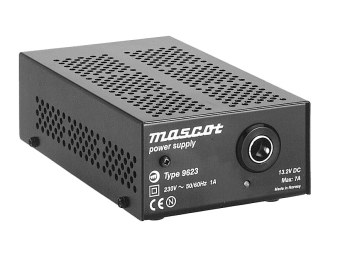

The MASCOT power supply 9623-120000 is a desktop power supply designed for use in professional radio equipment and fixed installations. It belongs to the 9623 series by manufacturer MASCOT and serves as a power supply unit with a fixed output voltage. The device converts an input voltage of 230 V AC into a constant DC voltage, with the output voltage varying by model variant at 12 V, 16 V, or 24 V. The maximum output power is 96 W, making it suitable for a wide range of devices in the field of radio communication and fixed systems. The power supply is equipped with a power cord and features a cable connection on the secondary side, enabling flexible integration into existing systems.

Applications
This power supply is intended for use in professional radio systems, particularly in fixed or vehicle-integrated systems. It is suitable for powering radio devices, repeater systems, or other electronic devices requiring a stable DC voltage. Its robust construction and availability of mounting brackets allow for secure installation in enclosures or on workstations. Use in professional environments requires a reliable power supply, which the device provides through its short-circuit-proof design and constant output voltage.

Features and Equipment in Detail
The device features an LED indicator on the front panel, visually signaling the operating status. This indicator serves as a status display, allowing quick recognition of whether the power supply is active. The power cord is already integrated, simplifying installation. The output side is equipped with a cable connection, enabling flexible linking to connected devices. The power supply is short-circuit proof, meaning it will not be damaged in the event of a short circuit at the output, thereby enhancing the safety of the entire system.

Technology Explained Simply
The MASCOT 9623-120000 is a switch-mode power supply (switching regulator) that efficiently converts electrical energy. Unlike linear power supplies, which often generate more heat, a switching regulator operates with higher efficiency and lower power loss. The 230 V AC input voltage is converted into a constant DC voltage that remains stable for connected devices. The maximum output power of 96 W allows powering multiple devices or a single device with higher current demand. The fixed output voltage ensures that connected devices always receive the required voltage, regardless of fluctuations in the mains supply.

Compatibility and Accessories
The power supply is available in various versions with different output voltages, including 12 V, 16 V, and 24 V. These variants allow adaptation to different device requirements. Optional mounting brackets facilitate installation in enclosures or on workstations. The integrated power cord simplifies cabling. The use of Hella connectors is also available within the product family, although not explicitly confirmed for the 9623-120000 model. Compatibility with other devices in the 9623 series is ensured, as the technical foundations are identical.

Mounting and Installation
Installation is performed using the integrated power cord and the cable connection on the secondary side. Optional mounting brackets allow secure fixation in enclosures or on workstations. The LED indicator on the front panel facilitates checking the operating status. The power supply is intended for indoor use, with no specific environmental conditions such as temperature or humidity limits mentioned in the sources. Installation requires no special tools, as cabling is standardized.

Operational Advantages
The short-circuit-proof design increases safety and prevents damage in case of incorrect connections. The stable output voltage ensures reliable power supply to connected devices. The integrated power cord and cable connection reduce the number of required connections and simplify installation. The LED indicator enables quick visual verification of the operating status. The high output power of 96 W makes the device suitable for a wide range of applications, especially in professional radio systems.
