Manhattan 460255
Magnetic Card Reader USB, three-track reader
|
-11% 76,26 EUR 86,09 EUR |
|
|
( 90,75 EUR incl. VAT ) ≈ £63.60 | ≈ $85.18 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |
| End-Of-Life: | 13. May 2026 |
|---|---|
| Datasheet: | file_download Download |
| Lieske Part No.: | 670672 |
| Mfg Part No: | 460255 |
| UPC/EAN: | 766623460255 |
| Weight: | 0.39 kg |
Further Card Reader from ManhattanFurther products in category Card Reader
All products of Manhattan
Product information for Manhattan 460255:

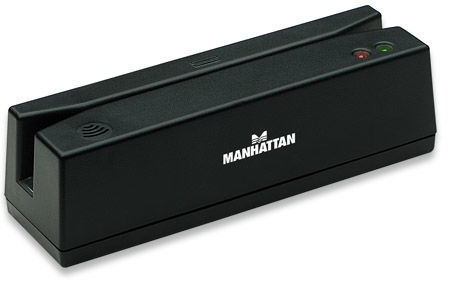

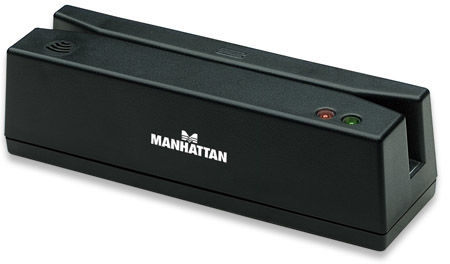

MANHATTAN magnetic card reader Provide a high quality tool for a wide range of applications. The default read-slot high-and low-Coercitivity magnetic stripe and Provides maximum stability for bi-directional reading of up to 3-track magnetic stripe. A sound and on LED to confirm a good read. ideal for many applications: such as shops and access controls. MANHATTAN magnetic card readers were Especially designed for easy installation and use. A built-in keyboard wedge decoder sends data to the application as if on active They had Directly been entered from the keyboard. - Provides for quick data entry, reduce errors and Improve efficiency - ideal for retail stores, access control and identification
Generally
Technical Details
- Dimensions: 150 x 43 x 43 mm
- Weight: 145 g
Electrical Specifications
- Voltage: DC +5 V + / - 5%
- Power consumption: 130 mA
Scope of delivery
- Keyboard Wedge Decoder displays data as, as if theywere entered from the keyboard Standards and Certifications - FCC
- ISO 7810-7813
- JISII
- CE
- USB
Generally
- Read: High Coercivity" - and "low coercivity strips
- Reading direction: bidirectional
- read receipt: Audible and LED
- Scan rate: 100 - 1000 mm per second
- Interface: USB
- Supported Interfaces: USB, PS / 2, RS232, TTL (cables can be changed for different interfaces) trace information - single track (track 1,2 or 3) - dual track (tracks 1 and 2, 2 and 3) - Triple track (tracks 1, 2 and 3) - JIS II
Technical Details
- Dimensions: 150 x 43 x 43 mm
- Weight: 145 g
- Cable length: 150 cm
- Operating temperature: 0 - 50 ° C
- Storage temperature: -20 - 70 ° C
- Humidity: 20 - 95% (non-condensing)
- Housing: ABS plastic and polycarbonate
Electrical Specifications
- Voltage: DC +5 V + / - 5%
- Power consumption: 130 mA
Scope of delivery
- Magnetic card reader
- Software CD (for optional equipment) Color: Black Product dimensions: 150 x 43 x 43 mm
| Features | |
| Interface | USB |
| Product colour | Black |
| Cable length | 1.5 m |
| Scan speed (min) | 100 mm/sec |
| Scan speed (max) | 1000 mm/sec |
| Compliance certificates | CE, Federal Communications Commission (FCC) |
| Certification | FCC CE ISO 7810-7813 JISII |
| LED indicators | |
| Logistics data | |
| Harmonized System (HS) code | 84719000 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 20 - 95% |
| Power | |
| Power consumption | 130 mA |
| Operating voltage | 5 V |
| Weight & dimensions | |
| Width | 43 mm |
| Depth | 150 mm |
| Height | 43 mm |
| Weight | 390 g |
Please note...
We have listed this article as 'end-of-life', which means that it will only be sold until it is completely sold out ! Please mind that we cannot guarantee you, you will receive the article, although it may be betokened as available. You can find the date from when the article was marked end-of-life to the top.
Questions & answers
What is the delivery time of Manhattan 460255 Magnetic Card Reader USB, three-track reader?
The article Manhattan 460255 Magnetic Card Reader USB, three-track reader is currently in stock
According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Manhattan 460255 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Manhattan 460255 Magnetic Card Reader USB, three-track reader always at the best possible price. We can give you a discount of 2% on Manhattan 460255 Magnetic Card Reader USB, three-track reader if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
