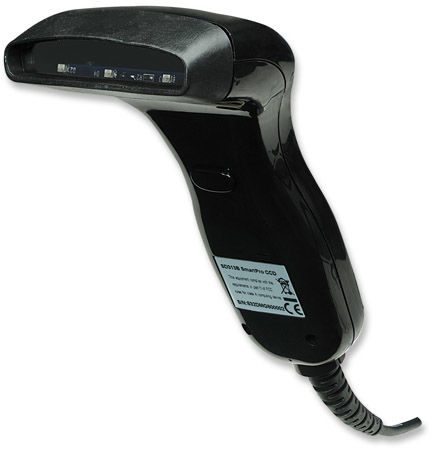

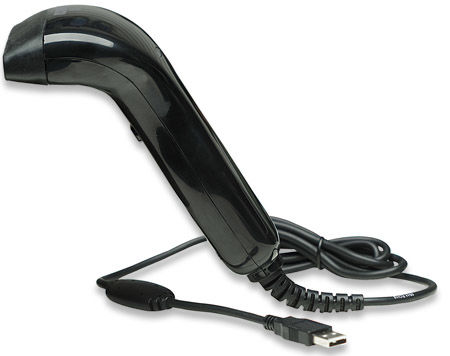

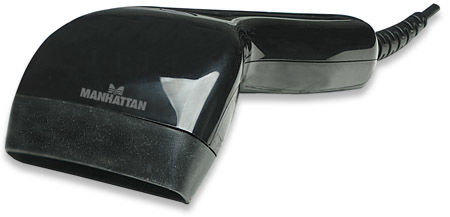

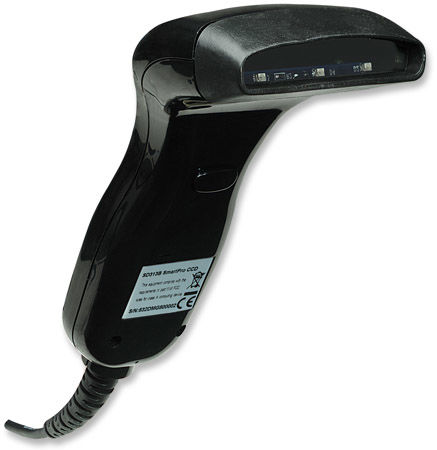

Manhattan Handheld Barcode Scanner - Cable Connectivity - Black - 120 scan/s - 20 mm Scan Distance content_copy

Higher speed, accuracy and productivity
MANHATTAN CCD Contact Barcode Scanner allows high-quality scanning for a wide range of applications to improve routine transactions, automate paper-based processes and increase productivity. The device CCD (charged-coupled device) with no moving parts, which guarantees reliable operation over many years. It handles many popular symbologies including UPC, EAN and GS1 DataBar. The barcode scanner is as easy to install as applicable, an integrated keyboard wedge decoder sends scanned data to an active application, where they appear as if they had been manually entered directly from the keyboard. Powered via the USB or PS2 format this device does not require external power supply. With a scan rate of 50 scans per second and an accurate reading range of 20 mm is a practical scanning solution for daily use in shops, post offices, restaurants, travel and transport companies, warehouses and other commercial and industrial applications - Increases speed data entry, reduce errors and improves efficiency - ideal for retail transactions and automated processes
- Keyboard Wedge Decoder displays data as if they had been entered directly from the keyboard

• Wide range scanning for fast and reliable reading with up to 50 scans per second
• Detects many popular symbologies such as UPC, EAN and GS1 DataBar
• Various connectivity options through replaceable cable
• Easy to install and use without software or special training
- 10 year guarantee Standards and Certifications
- FCC
- CE
- USB


General:

• Supports editing characters and ISP function
• Light source: Red LED
- Scanner width: 80 mm
- Scanner range: 20 mm
- Resolution: 0.1 mm (4 mil) @ PCS 0.9

• Read receipt: Acoustic and LED
• lighting environment: Max 3,000 lux (daylight)
• Scan Speed: 50 scan / sec
• Interface: USB
- Button: Trigger


Barcode support:

- UPC / EAN / JA
N & Addon 2/5, Code 39, Code 39 Full ASCII, Code 11, Matrix 25, Code 128, Code 93, Interleave 25, Industrial 25, Codabar/MW7, MSI / Plessey China Postage, Code2 of 6, LCD25, Telepen, GS1 DataBar (RSS code)

Technical Details
- Dimensions: 17.78 x 8.9 x 6.35 cm
- Weight: 190 g
- Cable length: 152.4 cm
- Operating temperature: 0 ° C to 50 ° C
- Storage temperature: -20 ° C to 60 ° C
- Humidity: 20% to 85% (non-condensing)
- Housing: ABS and rubber

Electrical Details
- Voltage: DC +5 V + / - 5%
- Power consumption: 130 mA

Scope of delivery

• Contact CCD Barcode Scanner
• Manual Color: Black Product dimensions: 17.78 x 8.9 x 6.35 cm

Logistics data
Harmonized System (HS) code	84716070
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 85%
Performance
Housing material	Acrylonitrile butadiene styrene (ABS), Rubber
Product colour	Black
Certification	FCC, CE
Ports & interfaces
Connectivity technology	Wired
Standard interfaces	USB
Cable length	1.524 m
Power
Power source type	USB
Input voltage	5 V
Power consumption	124 mA
Scanning
Type	Handheld bar code reader
Scanner type	1D
Sensor type	CCD
Linear (1D) barcodes supported	Codabar, Code 11, Code 128, Code 39, Code 93, Industrial 2 of 5, Interleaved 2 of 5, JAN, MSI, Plessey, Telepen
2D (matrix & stacked) barcodes supported	Not supported
Scanner resolution	0.1 mm
Read rate (max)	120 reads/s
Light levels (direct sunlight)	0 - 3000 lx
Maximum scan width	8 cm
Technical details
Compliance certificates	CE, Federal Communications Commission (FCC)
Weight & dimensions
Width	90 mm
Depth	173.5 mm
Height	56.2 mm
Weight	390 g

---
