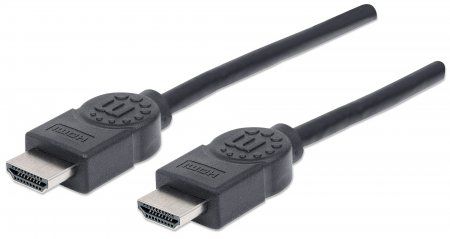

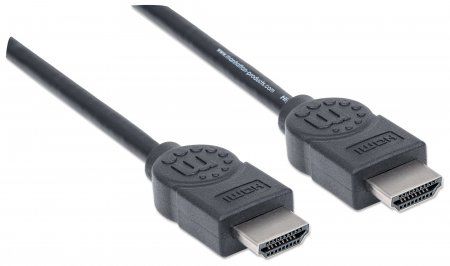

Manhattan 323239
High Speed HDMI Cable with Ethernet Channel HEC, ARC, 3D, 4K, HDMI Male to HDMI Male, Shielded, Black, 5 m
|
7,20 EUR |
|
|
( 8,57 EUR incl. VAT ) ≈ £6.00 | ≈ $8.04 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline | |
| End-Of-Life: | 13. May 2026 |
|---|---|
| Lieske Part No.: | 787184 |
| Mfg Part No: | 323239 |
| UPC/EAN: | 766623323239 |
| Weight: | 0.2 kg |
Product information for Manhattan 323239:
HDMI has become the standard for digital connections, because it provides the highest quality video and audio over a single cable. MANHATTAN High Speed ​​HDMI cables are specially designed to meet the high demands of the high-definition market. They provide the highest possible resolution of 4000 x 2000, an audio return channel and a bandwidth of 10.2 Gbit / s at 340 MHz. These high quality cables provide high-definition images and multi-channel audio with increased performance, accuracy and advanced features such as Internet access for home entertainment devices - all with a single HDMI connection. - Supports HDMI Ethernet Channel, Audio Return Channel, 3D video, 4K resolution and Deep Color
- High-speed Ethernet, bi-directional network connection with up to 100 Mbit / s
- ARC enables communication with your audio systems - no extra audio cable needed
- 4K support to resolutions beyond 1080p, 3D, Deep Color up to 1080p
- Suitable for any HDMI device such as Blu-ray players, game consoles, stereos and PCs
- Complies with High Speed ​​HDMI specifications
- Up to 10.2 Gbit / s at 340 MHz bandwidth
- Double shielded against electromagnetic interference and other disturbances
- Molded PVC jacket
- 10 year guarantee Standards and Certifications
- UL 20276
- ISO 9002
Generally
- Bandwidth: 10.2 Gbit / s
- 340 MHz
- HEC-support
- Meets or exceeds current HDMI standards
- Length: 5 m
Connections

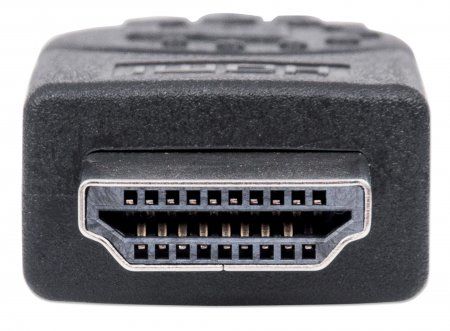

- 2 x HDMI 19-pin. Plug
- Vernickete Contacts
- Molded PVC jacket
- Double shielded
- 28 AWG Cable
Electrical Specifications:
- Rated current: 0.5 A DC- Dielectric strength: 300VDC
- Insulation resistance: 50 Mohm
- Line resistance: 2 Ohms
- Plastic casing
Scope of delivery:
- High Speed ​​HDMI Cable with Ethernet Channel Colour: Black Product Dimensions: 5 m| Certificates | |
| Certification | UL 20276 ISO 9002 |
| Features | |
| Cable length | 5 m |
| Connector 1 | HDMI Type A (Standard) |
| Connector 2 | HDMI Type A (Standard) |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Product colour | Black |
| Supported graphics resolutions | 3840 x 2160 |
| Data transfer rate | 10.2 Gbit/s |
| Bandwidth | 340 MHz |
| Maximum refresh rate | 30 Hz |
| AWG wire size | 30 |
| Connector contacts plating | Nickel |
| Cable jacket material | Polyvinyl chloride (PVC) |
| 3D | |
| Audio Return Channel (ARC) | |
| HDMI Ethernet channel | |
| Magnetically shielded | |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| Packaging data | |
| Package type | Polybag |
| Quantity per pack | 1 pc(s) |
| Weight & dimensions | |
| Weight | 368 g |
