Manhattan 179768

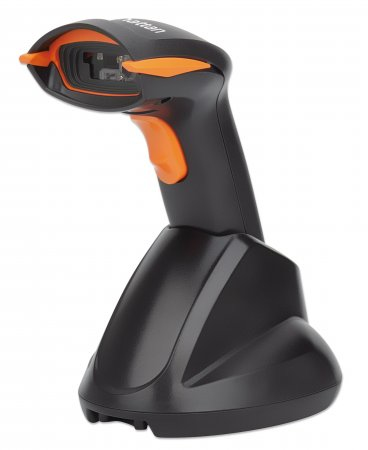

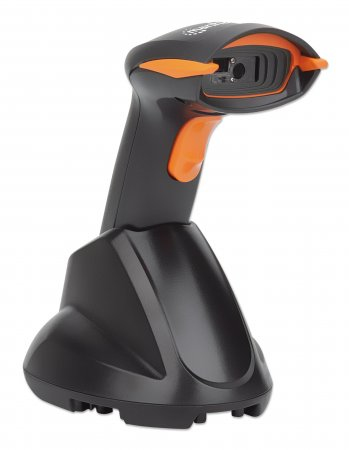

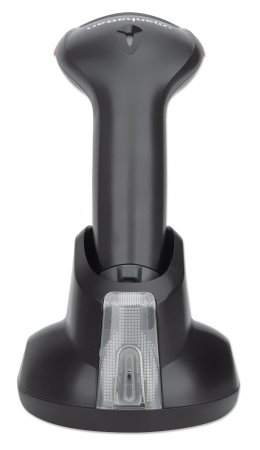

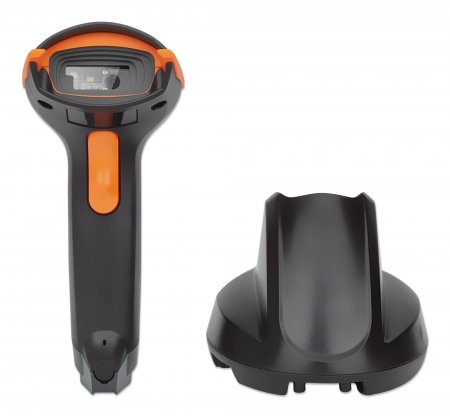

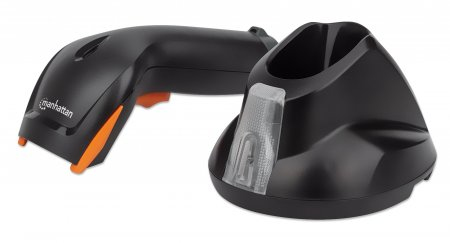

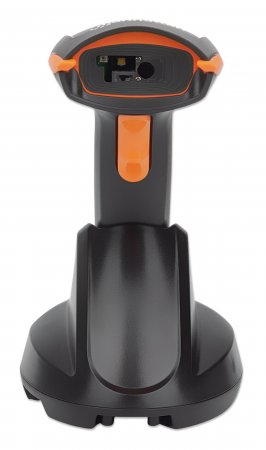

Wireless 2D CCD barcode scanner 250 mm scanning range, USB port, wireless range up to 80 m, protection class IP42
|
-8% 378,69 EUR 411,49 EUR |
|
|
( 450,64 EUR incl. VAT ) ≈ £316.96 | ≈ $423.75 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |
| End-Of-Life: | 13. May 2026 |
|---|---|
| Datasheet: | file_download Download |
| Lieske Part No.: | 1600336 |
| Mfg Part No: | 179768 |
| UPC/EAN: | 766623179768 |
| Weight: | 0.332 kg |
Product information for Manhattan 179768:
2D barcode scanner for increased speed, accuracy and productivity with wireless freedom
This Manhattan wireless barcode scanner enables high-quality scanning for a wide range of applications and increases the productivity in your company. The CCD sensor scans many common 1D and 2D barcodes such as UPC, EAN, ASCII, GS1 DataBar and more quickly and reliably with high tolerance. Scanned data appears on the PC as if it had been entered manually using a keyboard. The radio technology enables operation at a distance of up to 80 m from the charging station. Without an external power supply and with connection options via USB, the scanner allows you to conveniently use it on your PC, without additional software or special training. With a scanning depth (range) of up to 250 mm, this device is ideal for everyday use in shops, warehouses or offices. The shockproof and IP42 sealed housing also makes this scanner particularly suitable for industrial environments. - Increases data entry speed, reduces errors and improves efficiency - ideal in shops and automated systems processes
This Manhattan wireless barcode scanner enables high-quality scanning for a wide range of applications and increases the productivity in your company. The CCD sensor scans many common 1D and 2D barcodes such as UPC, EAN, ASCII, GS1 DataBar and more quickly and reliably with high tolerance. Scanned data appears on the PC as if it had been entered manually using a keyboard. The radio technology enables operation at a distance of up to 80 m from the charging station. Without an external power supply and with connection options via USB, the scanner allows you to conveniently use it on your PC, without additional software or special training. With a scanning depth (range) of up to 250 mm, this device is ideal for everyday use in shops, warehouses or offices. The shockproof and IP42 sealed housing also makes this scanner particularly suitable for industrial environments. - Increases data entry speed, reduces errors and improves efficiency - ideal in shops and automated systems processes
- Wireless technology offers effective wireless range up to 80 m
- Keyboard Wedge Decoder displays data as if it had been entered directly via the keyboard
- The wide scanning range enables fast, accurate scanning at a distance of up to 250 mm
- Detects many common 1D and 2D symbologies such as UPC, EAN and more
- Protected against splash water and dust according to protection class IP42
- Easy to install and use without software or special training
- 3 year warranty Standards and certificates
- FCC
- CE
- RoHS
- USB General:
- Supports 1D- and 2D barcodes
- Light source: white LED
- Scanning light type: CCD
- Scanning range: 250 mm
- Scan rate: 60 fps
- Resolution: 1280 horizontal x 800 vertical pixels
- Read confirmation: beep and LED
- Light conditions: up to 100,000 lux (sunlight)
- Interface (Base): USB-A to RJ50, 10-pin.
- Button: Trigger Wireless
- HID and SPP profiles
- 80 m range (line of sight) Supported codes
- 1D: UPC/EAN, UPC-A, UPC-E, EAN-8/JA N-8, EAN-13/JA
- 2D: Aztec, Data Matrix, PDF 417, Micro PDF 417, QR Code, Micro QR Code, GM Code , Han : 0 - 50°C - Storage temperature: -20 - 70°C - Humidity: 20 - 95% (non-condensing) - Housing: ABS plastic with protection class IP42 (protection against splash water and dust) Electrical specifications - Battery: Lithium-ion , 3.7 V / 2600 mAh - Input voltage: 5 V @ 2 A on the scanner / 110 - 240 V on the base - Scans per battery charge: approx. 20,000, continuous - Charging time: 5 hours - Power consumption: 445 mA Scope of delivery - Wireless 2D Barcode scanner - Receiver/charging station - Power supply - Interchangeable plug attachments: EU, US, UK, AU - RJ50 to USB cable - Programming guide - Quick guide Color: Black Product dimensions: 173 (H) x 76 (W) x 74 (H) [mm]
N-13, Code 39, Code 128, Codabar/NW7, Interleaved 25, Industrial 25, Matrix 25, Code 93, China Post, Code 11, MSI/Plessey, Telepen, GS1 Databar Omni-directional, GS1 Databar Limited, GS1 Databar Expended
| Battery | |
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery capacity | 2600 mAh |
| Logistics data | |
| Harmonized System (HS) code | 84716070 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 20 - 95% |
| Packaging data | |
| Charging base | |
| Performance | |
| International Protection (IP) code | IP42 |
| Product colour | Black |
| Certification | FCC CE |
| LED indicators | |
| Ports & interfaces | |
| Connectivity technology | Wired & Wireless |
| Standard interfaces | USB |
| Wireless range | 80 m |
| Power | |
| Power source type | Battery |
| Battery type | Built-in battery |
| Number of batteries supported | 1 |
| Battery voltage | 3.7 V |
| Charging time | 5 h |
| Input voltage | 5/110-240 V |
| Power consumption | 445 mA |
| Scanning | |
| Type | Handheld bar code reader |
| Scanner type | 1D/2D |
| Sensor type | CCD |
| Linear (1D) barcodes supported | Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, EAN-8, GS1 DataBar Expanded, GS1 DataBar Omnidirectional, GS1 Databar Limited, Industrial 2 of 5, Interleaved 2 of 5, JAN, MSI, Matrix 2 of 5, Plessey, Telepen, U.P.C., UPC-A, UPC-E |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Data Matrix, Han Xin, Micro QR Code, MicroPDF417, PDF417, QR Code |
| Optical sensor resolution (W x H) | 1280 x 800 pixels |
| Working distance | 25 cm |
| Technical details | |
| Compliance certificates | CE, RoHS, Federal Communications Commission (FCC) |
| Weight & dimensions | |
| Width | 173 mm |
| Depth | 76 mm |
| Height | 74 mm |
| Weight | 160 g |
| Base weight | 172 g |
| Base dimensions (WxDxH) | 131 x 102 x 90 mm |
Please note...
We have listed this article as 'end-of-life', which means that it will only be sold until it is completely sold out ! Please mind that we cannot guarantee you, you will receive the article, although it may be betokened as available. You can find the date from when the article was marked end-of-life to the top.
Questions & answers
What is the delivery time of Manhattan 179768 Wireless 2D CCD barcode scanner 250 mm scanning range, USB port, wireless range up to 80 m, protection class IP42?
The article Manhattan 179768 Wireless 2D CCD barcode scanner 250 mm scanning range, USB port, wireless range up to 80 m, protection class IP42 is currently in stock
According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Manhattan 179768 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Manhattan 179768 Wireless 2D CCD barcode scanner 250 mm scanning range, USB port, wireless range up to 80 m, protection class IP42 always at the best possible price. We can give you a discount of 2% on Manhattan 179768 Wireless 2D CCD barcode scanner 250 mm scanning range, USB port, wireless range up to 80 m, protection class IP42 if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
