Manhattan 178495
CCD Bluetooth Barcode Scanner Bluetooth, 500 mm scanning range content_copy

Higher speed, accuracy and productivity with wireless freedom MANHATTAN CCD Bluetooth barcode scanner enable high-quality scanning for a wide range of applications and increase productivity in your company. The CCD sensor scans quickly and reliably, with high tolerance, many popular symbologies including UPC, EAN, ASCII and GS1 DataBar. Scanned data appears on the PC, as if they had been entered manually via a keyboard. The Bluetooth technology enables the operation away from the charging station at a distance up to 80 m. Without external power supply and connectivity with USB scanner allows a comfortable use on your PC without additional software or special training. With a rate of 500 scans per second and a range up to 500 mm, this device is ideal for everyday use in shops, warehouses and offices. - Increases speed data entry, reduce errors and increase efficiency - ideal for retail transactions and automated processes - Bluetooth technology provides effective wireless range up to 80 m - Keyboard Wedge Decoder displays data as if they were directly entered from the keyboard - The wide scan area allows up to 500 scans per second at a range of up to 500 mm - Detects many popular symbologies including UPC, EAN, 1D bar codes, ASCII, GS1 DataBar group and many more. - Plug & Play via USB port, other interfaces optional - Easy to install and use without software or special training - 3 years Warranty Standards and Certifications: - FCC - CE

• RoHS
General:

• Light source: red LED, 632 nm
• Scanning range: 500 mm
• Resolution: 0.1 mm @ PCS 0.9
• read receipt: Beep and LED
• light conditions: up to 100,000 lux (sunlight)
• Scan rate: Smart Detection, up to 500 scans / second
• Interface: Bluetooth, KBW / RS232 / USB (HID or Virtual Comport)
• button: Shutter
Radio:

• Bluetooth V2.1, Class I
• HID and SPP profiles
• 80 m range (line of sight) Supported barcodes: - UPC / EAN / Jan, EAN128 code, Code 39, Code 39 Full ASCII, Code 32 / Italian Pharmacy , Code 128, Codabar / MW7, Interleave 25, Industrial 25, Matrix25, MSI / PLESSEY, Telepan, Code 93, Code 11, China Postage, Code26, LCD25, GS1 DataBar (RSS code)
Dimensions and weight

• Dimensions scanner: 18.3 x 9 x 7 cm; Base: 19 x 9.5 x 4 cm
• Weight Scanner: 0.2kg; Base: 0.1 Kg
• Operating Temperature: 0 ° C to 50 ° C
• Storage temperature: -20 ° C to 60 ° C
• Humidity: 20 - 95% (non-condensing)
• Housing: ABS plastic and rubber Electrical Details (Scanner ): - Power supply: rechargeable battery, 3.7V - Battery: Lithium-Ion battery 1100 mAh - scans per charge: about 8000 - Charging time: 3,5 hours - Power consumption: 150 mA Electrical Details (Receiver) - Voltage: DC + 5V +/- 5% - Power consumption: 70 mA
Delivery

• Bluetooth CCD Barcode Scanner

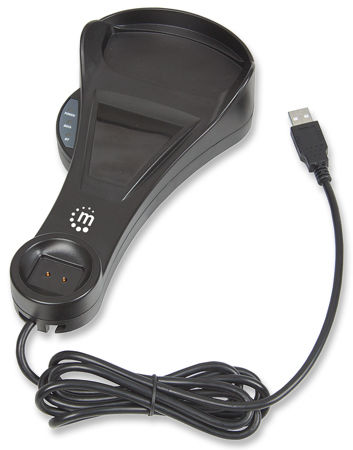

• receiver / charger
• power cable, RJ50 to USB cable
• Manual Colour: Black Product Dimensions: 18.3 x 9 x 7 cm

Battery
Battery technology	Lithium-Ion (Li-Ion)
Battery capacity	1100 mAh
Logistics data
Harmonized System (HS) code	84716070
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 95%
Packaging data
Charging base
Performance
Housing material	Acrylonitrile butadiene styrene (ABS), Rubber
Product colour	Black
Certification	FCC CE
Ports & interfaces
Connectivity technology	Wired & Wireless
Standard interfaces	Bluetooth, Keyboard wedge, RS-232, USB
Wireless range	80 m
Bluetooth version	2.1+EDR
Power
Power source type	Battery
Battery voltage	3.7 V
Charging time	3.5 h
Input voltage	5 V
Power consumption	70 mA
Scanning
Type	Handheld bar code reader
Scanner type	1D
Sensor type	CCD
Linear (1D) barcodes supported	Code 11, Code 32, Code 39, Code 93, GS1-128 (UCC/EAN-128), JAN
2D (matrix & stacked) barcodes supported	Not supported
Scanner resolution	0.1 mm
Working distance	50 cm
Read rate (max)	500 reads/s
Light levels (direct sunlight)	0 - 100000 lx
Wavelength	632 nm
Maximum scan width	50 cm
Technical details
Compliance certificates	RoHS
Weight & dimensions
Width	90 mm
Depth	183 mm
Height	70 mm
Weight	160 g

---
