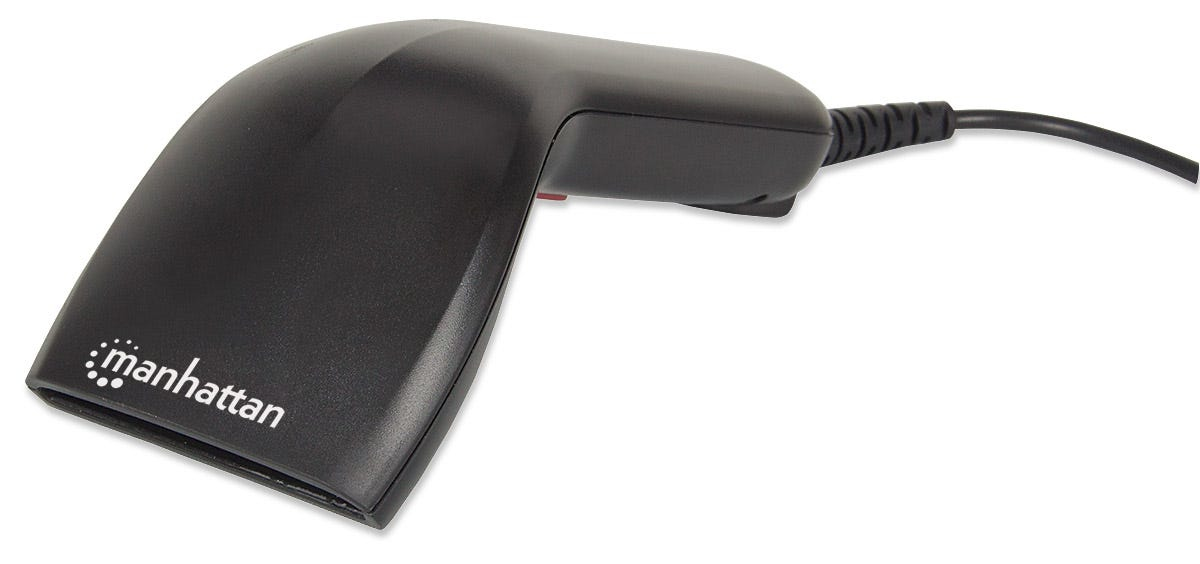

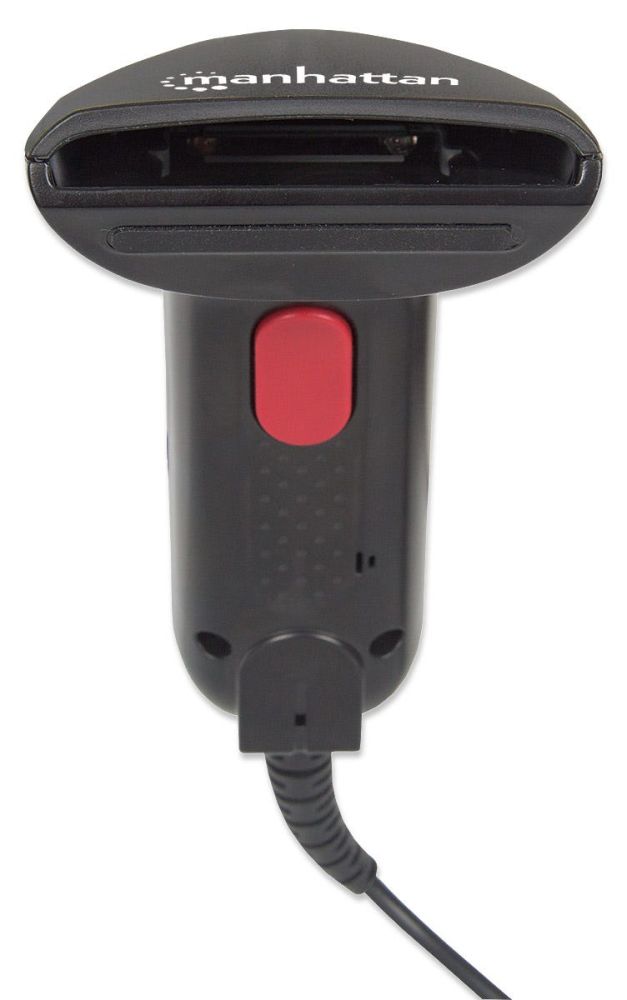

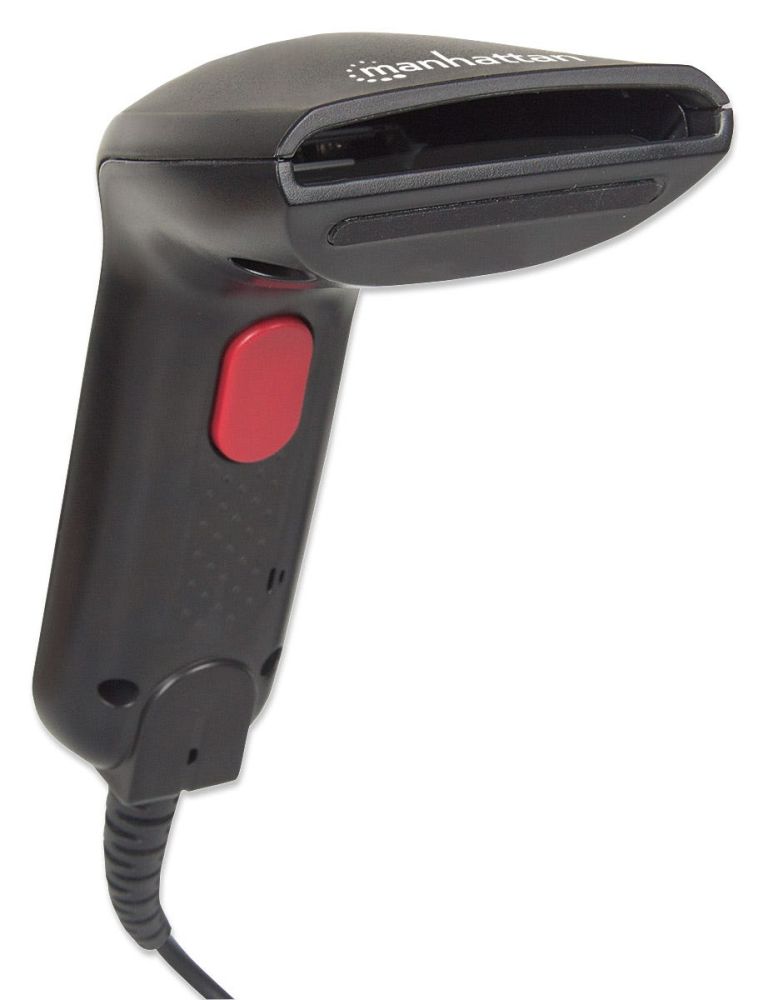

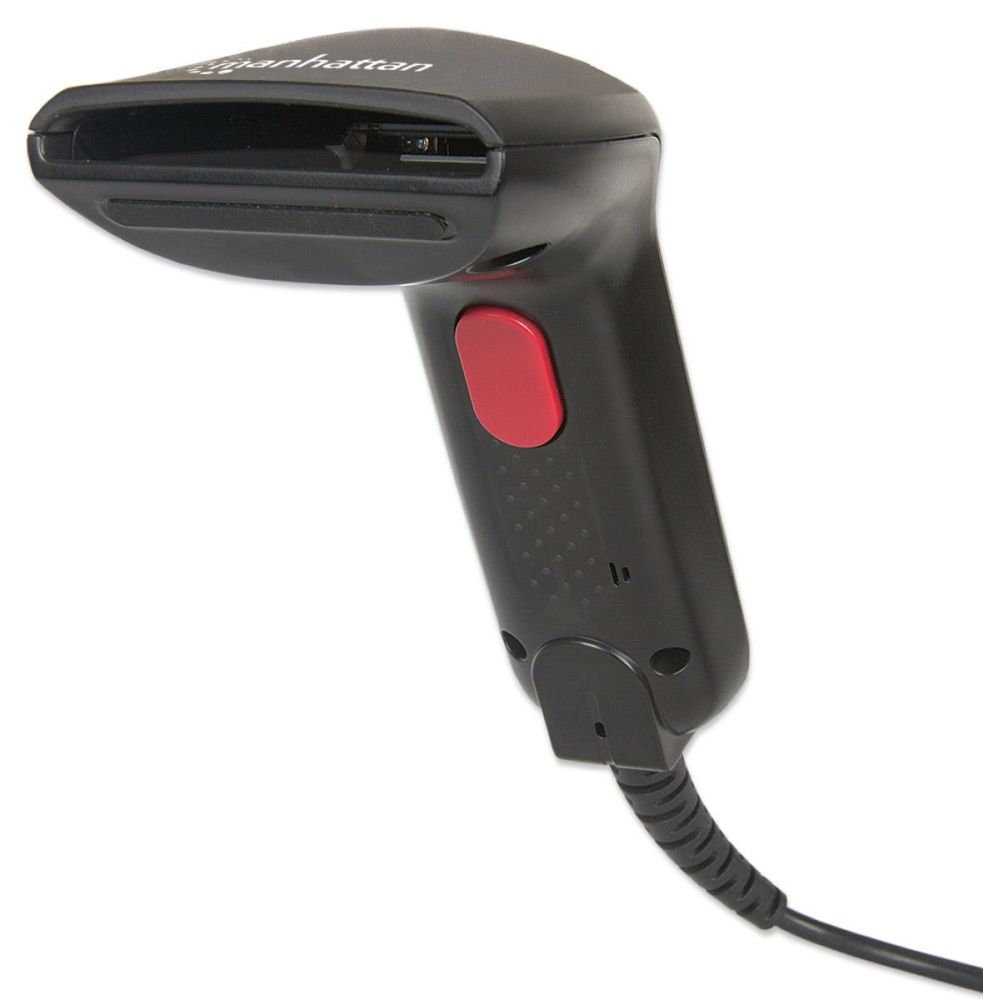

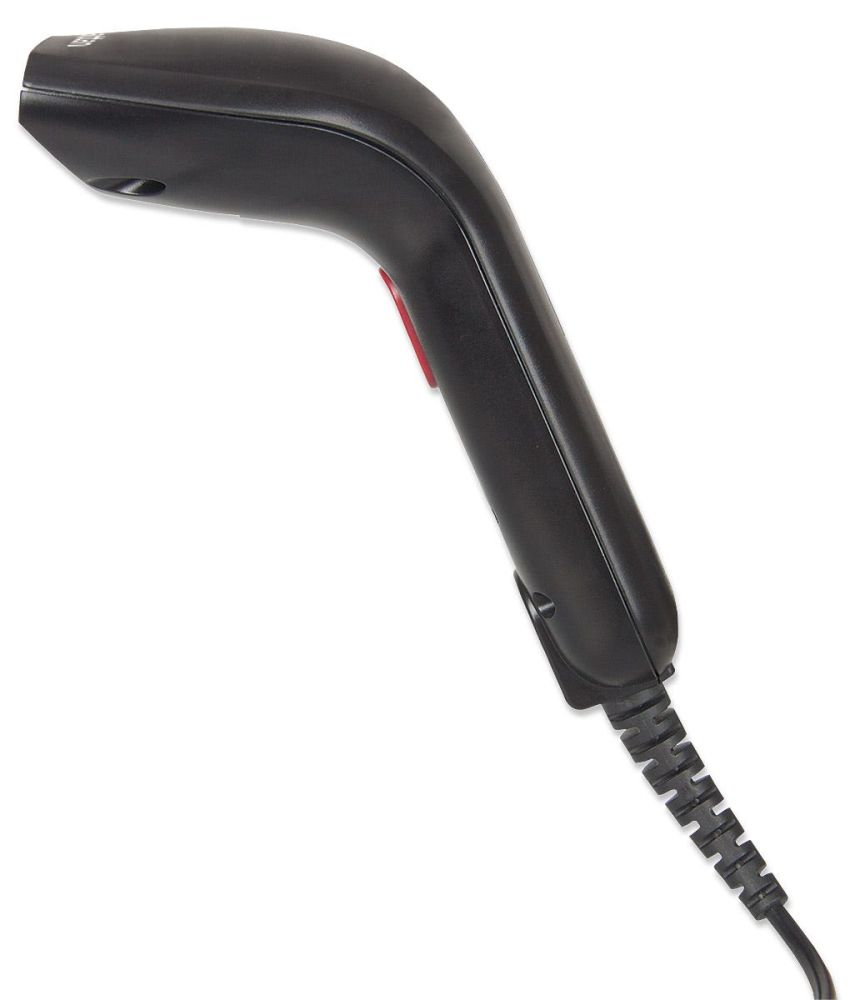

MANHATTAN Contact CCD Barcode Scanner 60mm Scan Width USB with up to 100 scans per second popular symbologies including UPC EAN
|
39,61 EUR |
|
|
( 47,14 EUR incl. VAT ) ≈ £33.15 | ≈ $44.32 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: 1 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 652318 |
| Mfg Part No: | 178488 |
| UPC/EAN: | 0766623178488 |
| Weight: | 0.285 kg |
| Logistics data | |
| Harmonized System (HS) code | 84716070 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 20 - 95% |
| Performance | |
| Housing material | Acrylonitrile butadiene styrene (ABS) |
| Product colour | Black |
| Certification | • FCC • CE • RoHS |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Standard interfaces | Keyboard wedge, RS-232, USB |
| Cable length | 1.524 m |
| Power | |
| Input voltage | 5 V |
| Power consumption | 80 mA |
| Scanning | |
| Type | Handheld bar code reader |
| Scanner type | 1D |
| Sensor type | CCD |
| Linear (1D) barcodes supported | Codabar, Code 11, Code 128, Code 39, Code 93, JAN, MSI, U.P.C. |
| 2D (matrix & stacked) barcodes supported | Not supported |
| Scanner resolution | 0.127 mm |
| Working distance | 6 cm |
| Read rate (max) | 100 reads/s |
| Light levels (direct sunlight) | 0 - 5000 lx |
| Wavelength | 632 nm |
| Maximum scan width | 6 cm |
| Technical details | |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Width | 80 mm |
| Depth | 180 mm |
| Height | 63.5 mm |
| Weight | 180 g |
