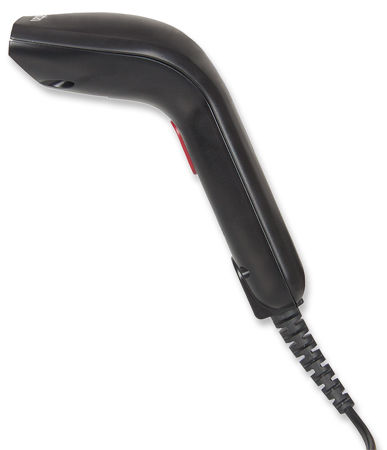

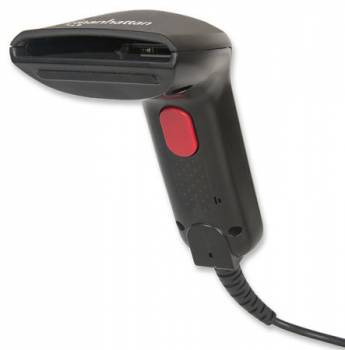

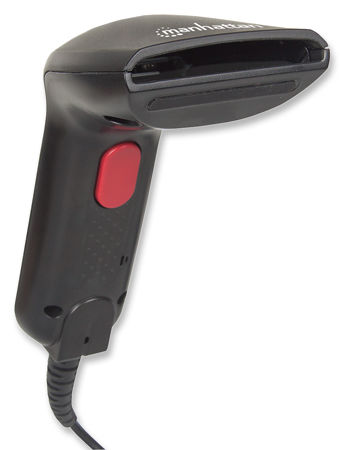

Manhattan 178488
Contact CCD Barcode Scanner 60 mm scan width, USB content_copy

Higher speed, accuracy and productivity

Manhattan CCD Contact Barcode Scanner allows high-quality scanning for a wide range of applications and increase productivity in your business. The CCD sensor scans quickly and reliably, with high tolerance, many popular symbologies including UPC, EAN, GS1 DataBar and ASCII. Scanned data appears on the PC, as it were entered manually via a keyboard. Without external power supply and connectivity with USB scanner allows comfortable use on your PC without additional software or special training. With a rate of 100 scans per second and a range up to 60 mm, this device is ideal for everyday use in stores, warehouses or offices. - Increases speed data entry, reduce errors and increase efficiency - ideal for retail transactions and automated processes
- Keyboard Wedge Decoder displays data as if they were directly entered from the keyboard
- Wide scan field provides quick, accurate reads with up to 100 scans per second
- Detects many popular symbologies including UPC, EAN, 1D bar codes, ASCII, GS1 DataBar group and many more.
- Plug & Play via USB port, other interfaces optional
- Easy to install and use without software or special training
- 3 years Warranty Standards and Certifications:
- FCC
- CE
- RoHS

General:

- Supports character processing and ISP function
- Light source: Red LED, 632 nm
- Scan width: 60 mm
- Scan range: contact to 60 mm at 20 mil / 0.5 mm, 90% PCS, Code39
- Resolution: 0.127 mm (5 mil) in PCS 90%
- Read reply: beep
- Light: 5,000 lux max. (Sunlight)
- Scan rate: 100 scans / sec. +/- 10%
- Interface: KBW / RS232 / USB (HID or Virtual Comport)
- Button: Shutter

Barcode support:

- UPC / EAN / JA
N, Code 39, Code 39 Full ASCII, Code 11, Matrix 25, Code 128, Code 93, Interleave 25, Codabar / NW7, MSI / PLESSEY, China Postage, GS1 DataBar (RSS code)

Dimensions and weight
- Dimensions: 18 x 8 x 6.35 cm
- Weight without cable: 0.12 kg
- Cable length: 152.4 cm
- Operating temperature: 0 - 50 ° C
- Storage temperature: -20 - 70 ° C
- Humidity: 20-95% (non-condensing)
- Housing: ABS

Electrical Specifications:

- Voltage: DC +5 V +/- 5%
- Current consumption: 80 mA

Scope of delivery:

- Contact CCD Barcode Scanner
- Manual Color: Black Product dimensions: 18 x 8 x 6:35 cm

Logistics data
Harmonized System (HS) code	84716070
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	20 - 95%
Performance
Housing material	Acrylonitrile butadiene styrene (ABS)
Product colour	Black
Certification	• FCC • CE • RoHS
Ports & interfaces
Connectivity technology	Wired
Standard interfaces	Keyboard wedge, RS-232, USB
Cable length	1.524 m
Power
Input voltage	5 V
Power consumption	80 mA
Scanning
Type	Handheld bar code reader
Scanner type	1D
Sensor type	CCD
Linear (1D) barcodes supported	Codabar, Code 11, Code 128, Code 39, Code 93, JAN, MSI, U.P.C.
2D (matrix & stacked) barcodes supported	Not supported
Scanner resolution	0.127 mm
Working distance	6 cm
Read rate (max)	100 reads/s
Light levels (direct sunlight)	0 - 5000 lx
Wavelength	632 nm
Maximum scan width	6 cm
Technical details
Compliance certificates	RoHS
Weight & dimensions
Width	80 mm
Depth	180 mm
Height	63.5 mm
Weight	180 g

---
