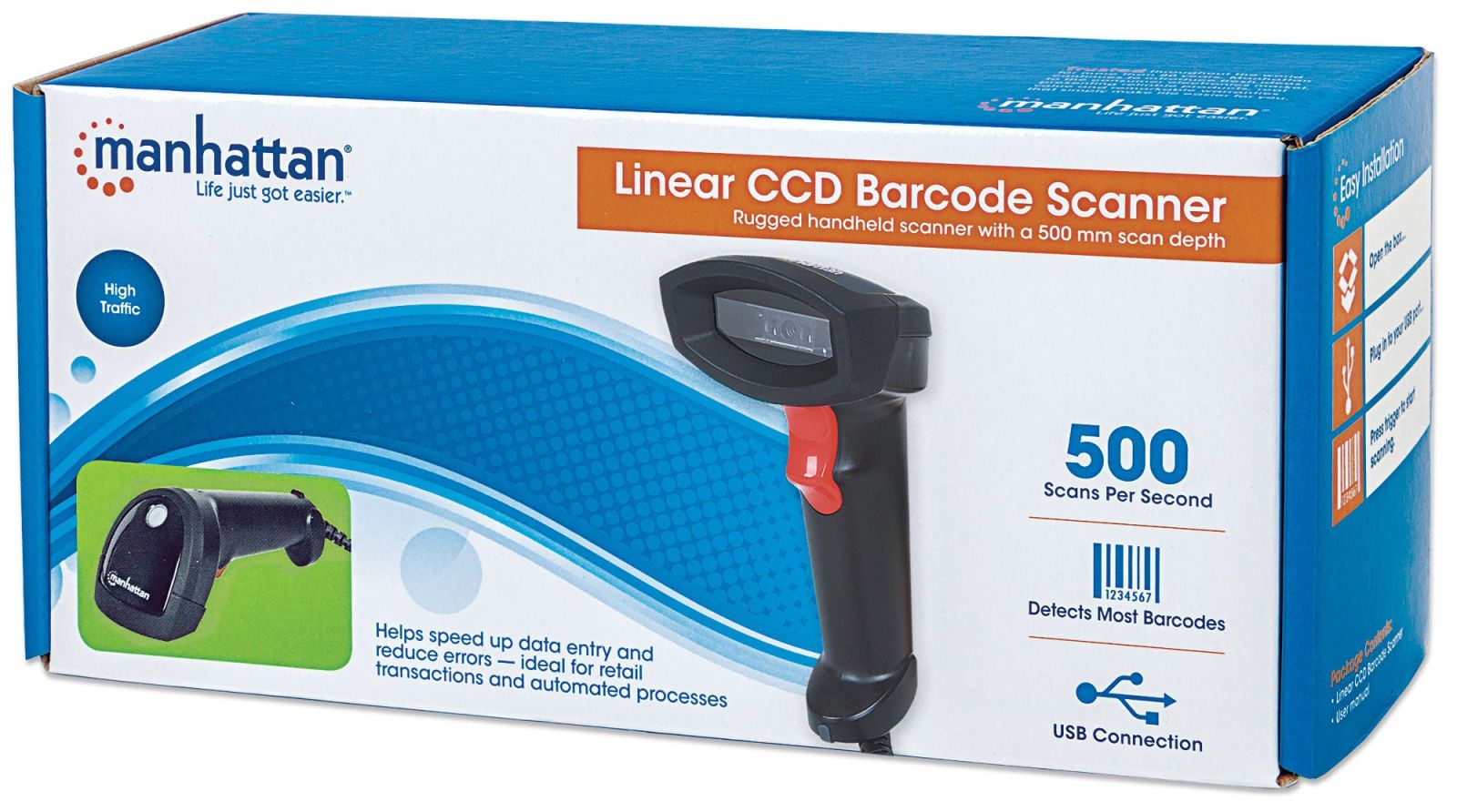

MANHATTAN CCD Barcode Scanner 500mm Scan Depth up to 500 scans per second IP54 Detects many popular symbologies content_copy

Higher speed, accuracy and productivity in particularly robust housing

Manhattan CCD Barcode Scanner allows high-quality scanning for a wide range of applications and increase productivity in your business. The CCD sensor scans quickly and reliably, with high tolerance, many popular symbologies including UPC, EAN, GS1 DataBar and ASCII. Scanned data appears on the PC, as it were entered manually via a keyboard. Without external power supply and connectivity with USB scanner allows comfortable use on your PC without additional software or special training. With a rate of 500 scans per second and a range up to 500 mm, this device is ideal for everyday use in stores, warehouses or offices. By shockproof and protection class IP54 sealed housing, this scanner also particularly suitable for industrial environments. - Increases speed data entry, reduce errors and increase efficiency - ideal for retail transactions and automated processes
- Keyboard Wedge Decoder displays data as if they were directly entered from the keyboard
- The wide scan area allows up to 500 scans per second at a range of up to 500 mm
- Detects many popular symbologies including UPC, EAN, 1D bar codes, ASCII, GS1 DataBar group and many more.
- Plug & Play via USB port, other interfaces optional
- Easy to install and use without software or special training
- 3 years Warranty Standards and Certifications:
- FCC
- CE
- RoHS

General:

- Light source: red LED, 632 nm
- Scan range: 500 mm
- Resolution: 0.1 mm @ PCS 0.9
- Read reply: beep and LED
- Light: up to 100,000 lux (sunlight)
- Scan rate: Smart Detection, up to 500 scans / second
- Interface: KBW / RS232 / USB (HID or Virtual Comport)
- Button: Shutter

Supported barcodes:

- UPC / EAN / JA
N, EAN 128 code, Code 39, Code 39 Full ASCII, Code 32 / Italian Pharmacy, Code 128, Codabar / MW7, Interleave 25, Industrial 25, Matrix25, MSI / PLESSEY, Telepan, Code 93, Code 11 , China Postage, Code26, LCD25, GS1 DataBar (RSS code)

Dimensions and weight
- Dimensions: 18 x 7 x 7 cm
- Weight 0.15 kg
- Operating temperature: 0 - 50 ° C
- Storage temperature: -20 - 60 ° C
- Humidity: 20-95% (non-condensing)
- Housing: ABS plastic and rubber
- Sealing according to IP54

Electrical Specifications:

- Voltage: DC +5 V +/- 5%
- Power consumption: 70 mA

Scope of delivery
- CCD Barcode Scanner for Industrial Applications
- Manual Color: Black Product Dimensions: 18 x 7 x 7 cm

Logistics data
Harmonized System (HS) code	84716070
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 95%
Performance
Housing material	Acrylonitrile butadiene styrene (ABS), Rubber
International Protection (IP) code	IP54
Product colour	Black
Certification	FCC, CE, RoHS
LED indicators
Ports & interfaces
Connectivity technology	Wired
Standard interfaces	Keyboard wedge, RS-232, USB
Power
Input voltage	5 V
Power consumption	70 mA
Scanning
Type	Handheld bar code reader
Scanner type	1D
Sensor type	CCD
Linear (1D) barcodes supported	Code 11, Code 128, Code 32, Code 39, Code 93, GS1-128 (UCC/EAN-128), JAN
2D (matrix & stacked) barcodes supported	Not supported
Working distance	50 cm
Read rate (max)	500 reads/s
Light levels (direct sunlight)	0 - 10000 lx
Wavelength	632 nm
Maximum scan width	50 cm
Weight & dimensions
Width	70 mm
Depth	180 mm
Height	70 mm
Weight	150 g

---
