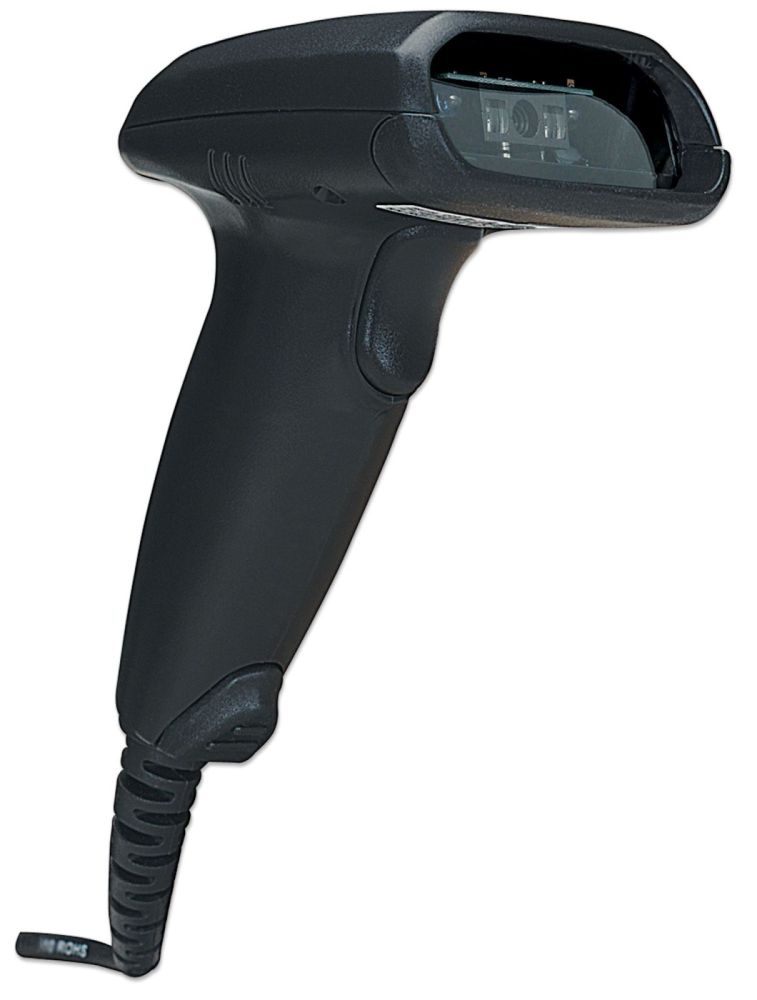

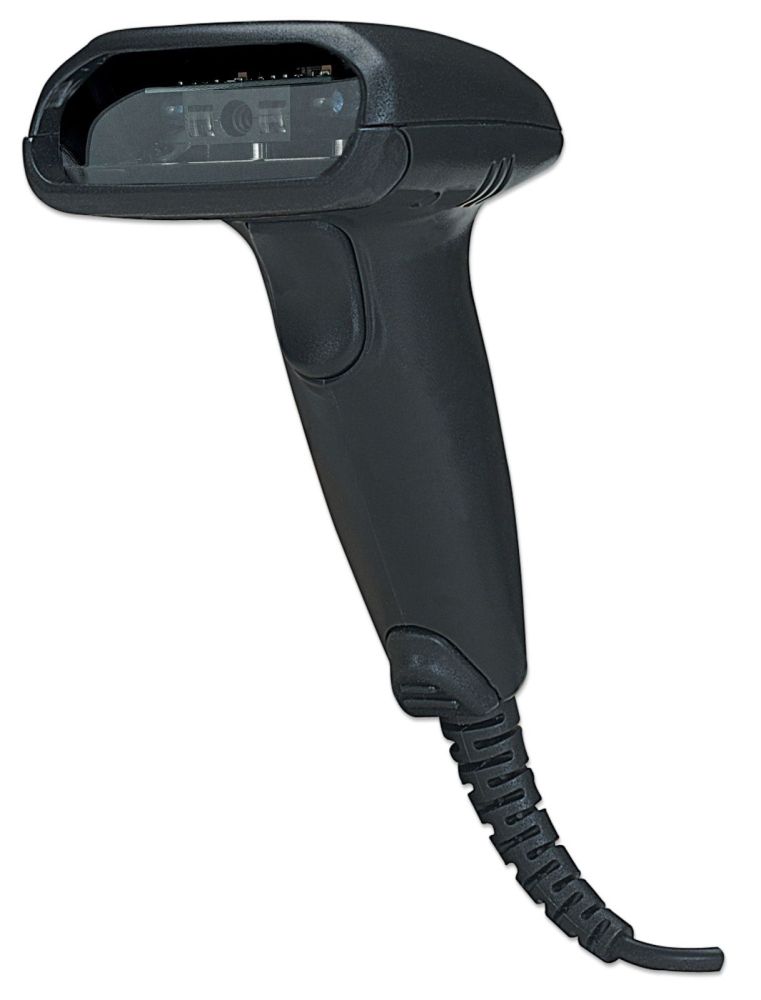

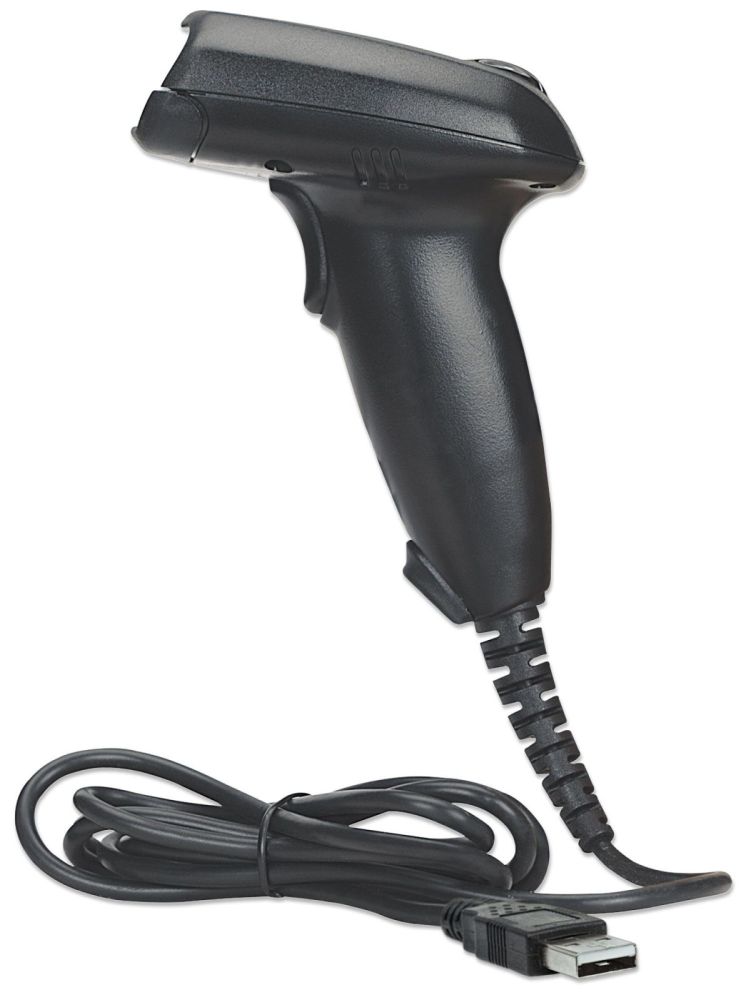

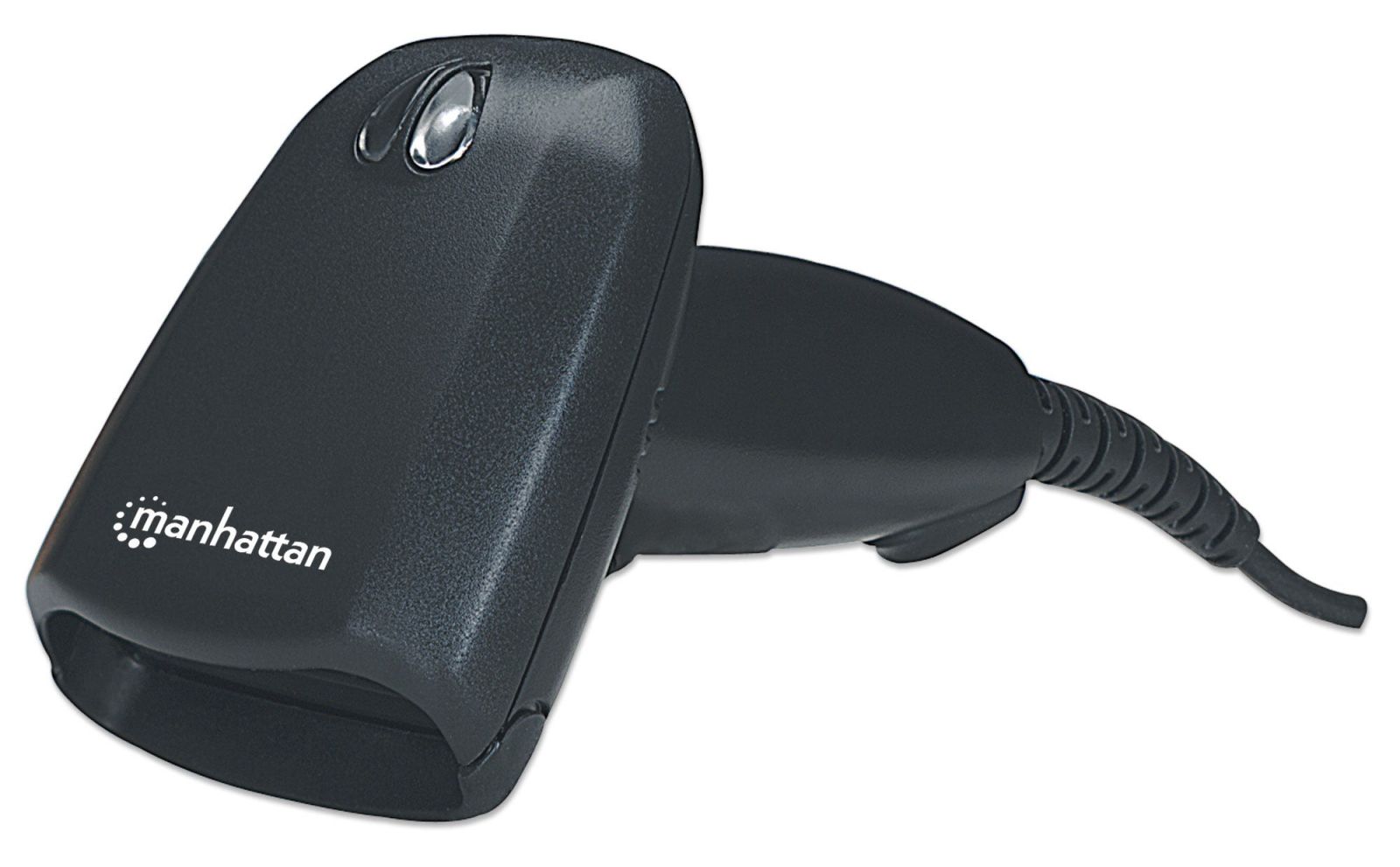

Manhattan CCD Long Range Barcodescanner 500 mm scan range 1D 1.5 m USB-A cable 10000 Lux black content_copy

Higher speed, accuracy and productivity
MANHATTAN CCD Long Range Barcode Scanner Allows high-quality scanning for a wide range of applications to Improve routine transactions, automate paper-based processes and increase enlarge productivity. The device CCD (charged-coupled device) with no moving parts, which guarantees reliable operation over many years.It handles many popular symbologies including UPC, EAN, ASCII, MSI / Plessey GS1 DataBar and many more. The barcode scanner is as easy to install as applicable, to integrated keyboard wedge decoder sends scanned data to application of active, where as if They Appear They had been manually entered Directly from the keyboard. Powered via the USB interface of this device requires no external power supply, a connection via PS / 2 is possibleness. With a scan rate of 150 scans per second and a scan range of 260 mm MANHATTAN Long Range CCD barcode scanner is ideal for daily use in shops, post offices, restaurants, travel and transportation companies, warehouses and other commercial and industrial applications - Increases data input speed, reduce errors and Improve efficiency - ideal for retail transactions and automated processes

• Keyboard Wedge Decoder displays data as if They had been entered Directly from the keyboard
• The wide scanrange Allows up to 150 scans per second at a distance of up to 260 mm
• Detects many popular symbologies including UPC, EAN and GS1 DataBar
• Various connectivity options through replaceable cable
• Easy to install and use without software or special workout
- 10 year guarantee Standards and Certifications
- FCC
- CE
- USB

Generally
- Supports editing characters and ISP function
- Light source: LED, red

• Scanner Width: 60 mm
• Field Width: 100 mm
• Scan angle: 35 °
• scanner range: 260 mm @ 20 mil / 0.5 mm, PCS 90%
• Resolution: 0.127 mm (5 mil) @ PCS 0.9
• Read report: acoustic and LED
• Ambient lighting: max. 10,000 lux
• Scan speed: 150 scans / sec
• Connection: USB
- Button: Trigger


Barcode support:

- UPC / EAN / Jan & Addon 2/5, Code 39, Code 39 Full ASCII, Code 11, Matrix 25, Code 128, Code 93, Interleave 25, Industrial 25, Codabar/MW7, MSI / Plessey China Postage, Code2 of 6, LCD25, Telepen, GS1 DataBar (RSS code)


Technical details:

- Dimensions: 14 x 7 x 9 cm
- Weight: 115 g

• Cable length: 1.5 cm
• Operating temperature: 0 ° C to 50 ° C
• Storage temperature: -20 to 70 ° C
• Humidity: 20% to 95% (non-condensing)
- Housing: ABS and rubber

Electrical Details

• Voltage: DC +5 V ± 5%
• Power consumption: 140 mA

Scope of delivery

• Long Range CCD Barcode Scanner
• Manual Color: Black Product dimensions: 17.75 x 8.9 x 1.9 cm

Logistics data
Harmonized System (HS) code	84716070
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	20 - 95%
Performance
Housing material	Acrylonitrile butadiene styrene (ABS), Rubber
Product colour	Black
Certification	FCC, CE, USB
Ports & interfaces
Connectivity technology	Wired
Standard interfaces	USB
Cable length	1.5 m
Power
Power source type	USB
Input voltage	5 V
Power consumption	150 mA
Scanning
Type	Handheld bar code reader
Scanner type	1D
Sensor type	CCD
Linear (1D) barcodes supported	Codabar, Code 11, Code 128, Code 39, Code 93, Industrial 2 of 5, Interleaved 2 of 5, JAN, MSI, Plessey, Telepen
2D (matrix & stacked) barcodes supported	Not supported
Working distance	50 cm
Read rate (max)	500 reads/s
Light levels (direct sunlight)	0 - 10000 lx
Maximum scan width	10 cm
Technical details
Compliance certificates	CE, Federal Communications Commission (FCC)
Weight & dimensions
Width	89 mm
Depth	177.5 mm
Height	19 mm
Weight	440 g

---
