Manhattan 168427

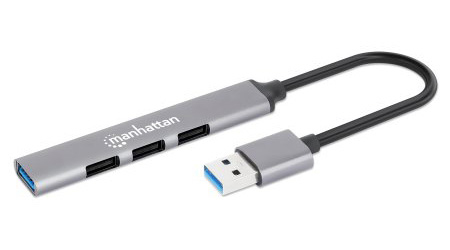

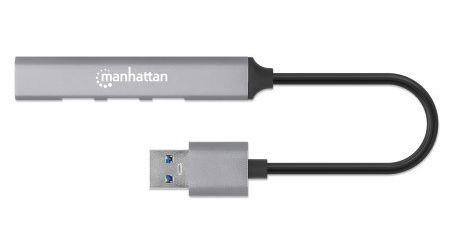

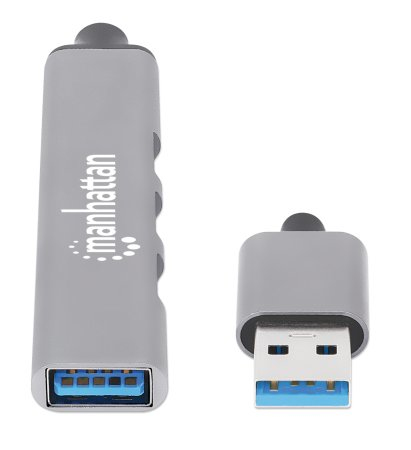

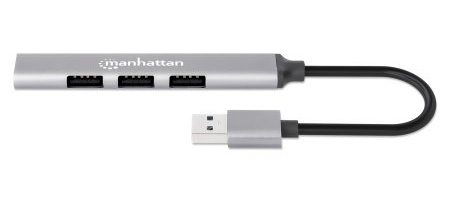

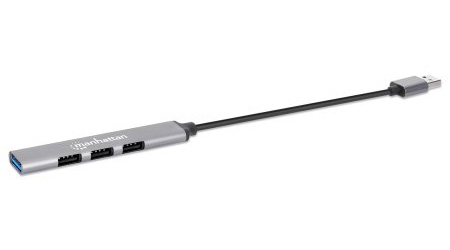

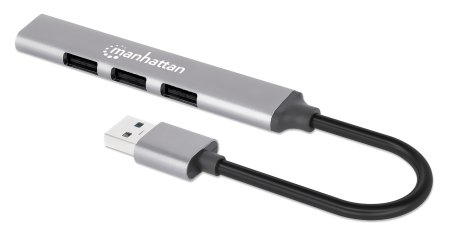

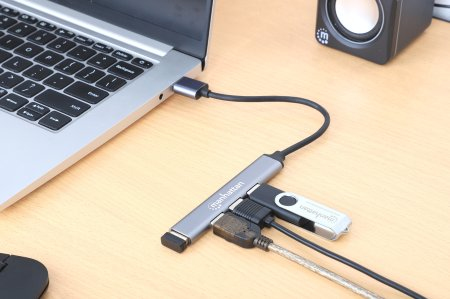

4-port USB 3.0 / 2.0 combo hub USB-A plug to four USB-A sockets, one 5 Gbit/s USB 3.2 Gen 1 port (previously USB 3.0), three 480 Mbit/s USB 2.0 ports, powered by USB, aluminum, space gray
|
10,26 EUR |
|
|
( 12,21 EUR incl. VAT ) ≈ £8.59 | ≈ $11.48 plus delivery charges: 55,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 2135148 |
| Mfg Part No: | 168427 |
| UPC/EAN: | 766623168427 |
| Weight: | 0.025 kg |
Product information for Manhattan 168427:
The Manhattan 4-port USB 3.0 / 2.0 combo hub converts a single USB-A port into four A ports. Devices that support the USB 3.2 Gen 1 standard (previously known as USB 3.0) transfer data to the blue port on the front at up to 5 Gbit/s, ideal for external hard drives, USB sticks and other storage media. Thanks to backward compatibility, the SuperSpeed port can also be used with USB 2.0 or USB 1.1 devices without any problems. Your smartphone or tablet is charged with up to 4.5 W / 0.9 A. The three USB 2.0 ports with a transfer rate of 480 Mbit/s are ideal for peripheral devices such as a keyboard, mouse and USB headset.
Variety of interfaces for on the go
With its extremely slim, robust aluminum housing and power supply via USB, this hub is particularly suitable for on the go.
Universally compatible with easy installation
This multiport hub supports a particularly large number of platforms because it does not require any additional software or drivers. The plug < play installation is automatic and quick on any laptop or PC. It is suitable for Windows®, macOS®, Linux and Chrome OS. - Four additional USB-A ports for connecting a mouse, keyboard, USB stick and more or for charging and synchronizing mobile devices
- One USB 3.2 Gen 1 Type A port (USB 3.0) with SuperSpeed transfer rates of up to 5 Gbit/s and device charging of up to 4.5 W (5 V / 0.9 A)
- Three USB 2.0 Type A ports with transfer rates of up to 480 Mbit/s and device charging of up to 2.5 W (5 V / 0.5 A)
- Power supply via USB; no external power supply required
- Ideal for desktop PCs, Ultrabooks™, laptops, Chromebooks™, MacBooks®, Surface® devices and more
- Integrated, durable 18 cm connection cable
- Slim, space-saving aluminum housing, ideal for the desk or on the go
- Mobile, compact and lightweight design fits easily into the outside compartments of notebook bags
- Plug < Play installation; compatible with Windows®, macOS®, Linux® and Chrome OS™
- Supports hot swapping (connecting the device while it is running)
- 3 year warranty Standards and certificates
- USB 3.2 Gen 1 (USB 3.0)
- USB 2.0
- CE
- FCC
- RoHS
- REACH
- UKCA General
- Data transfer rates
- USB 3.0 port: 5 Gbit/s
- USB 2.0 port: 480 Mbit/s
- Charging power
- USB 3.0 port: 4.5 W (5.0 V / 0.9 A)
- USB 2.0 port: 2.5 W (5.0 V / 0.5 A) Connectors
- 1 x 9-pin USB-A male
- 1 x 9-pin USB-A female
- 3 x 4-pin USB-A socket Physical details
- Dimensions (L x W x H): 101 x 17 x 7 mm
- Net weight: 25 g
- Gross weight: 65 g
- Cable length: 18 cm
- Cable diameter: AWG 28
- Housing: aluminum Environmental conditions
- Ambient temperature during operation: 0 - 60°C
- Ambient temperature during storage -10 - 90°C
- Humidity (non-condensing): 10 - 90% RH System requirements:
- Windows 7/8.1/10/11, Linux, Chrome OS or macOS Scope of delivery
- 4-port USB 3.0 / 2.0 combo hub
- Quick start guide Color: Space Gray Product dimensions: 101 (L) x 17 (W) x 7 (H) [mm]
| Features | |
| Data transfer rate | 5000 Mbit/s |
| Product colour | Grey |
| Housing material | Aluminium |
| AWG wire size | 28 |
| Cable length | 0.18 m |
| Certification | USB 2.0 CE FCC RoHS REACH UKCA |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | -10 - 90 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Packaging content | |
| Manual | |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width | 17 mm |
| Package depth | 101 mm |
| Package height | 7 mm |
| Package weight | 55 g |
| Ports & interfaces | |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-A |
| Hub interfaces | USB 2.0 |
| USB 2.0 Type-C ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Ports quantity | 4 |
| Power | |
| Output voltage | 5 V |
| Output current | 0.9 A |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 11, Windows 7, Windows 8.1 |
| Other operating systems supported | ChromeOS |
| Mac operating systems supported | |
| Linux operating systems supported | |
| Technical details | |
| Compliance certificates | CE, REACH, RoHS, UKCA, Federal Communications Commission (FCC) |
| Weight & dimensions | |
| Width | 17 mm |
| Depth | 101 mm |
| Height | 7 mm |
| Weight | 35 g |
