Manhattan 168397
4K@30Hz HDMI over Ethernet Extender Set HDMI signal extension with 4K@30Hz up to 40 m or 1080p@60Hz up to 70 m via a single Cat6 network cable content_copy

Transmitter and receiver module, Power over Cable (PoC), black
4K HDMI extender / signal extension - extends a UHD signal via Ethernet LAN cable to long distances:
This Manhattan 4K HDMI over Ethernet extender set transmits an HDMI audio/video signal via a single RJ45 Cat6 network cable, either in 4K@30Hz (3840 < 2160) up to 40 m or 1080p@60Hz up to 70 m. The set delivers high-quality video and multichannel audio from streaming devices, game consoles (PS4, PS4 Pro, PS5, Xbox Series -Cable alone could. The transmitter and receiver modules also have 3.5 mm jack sockets as infrared (IR) inputs for remote controls, with which you can control the source device or the display at the respective end.
Flexible solution for many A/V applications:
Ideal for trade fairs, classrooms, home cinema, conference rooms, offices and retail, this HDMI extender is a cost-effective solution that extends and amplifies the HDMI signal. Ethernet cabling < shielded or unshielded < has a greater range than HDMI cables with in-line signal repeaters.
Quality Construction and Easy Installation:
This set has been tested for performance and reliability. It delivers the clear, sharp image you've come to expect from HDMI cables. It can be set up quickly and easily with Plug < Play, no software or additional hardware is required. Mounting brackets are integrated into both modules with which you can attach the metal housing to the wall or ceiling.
Only one power supply is required thanks to Power over Cable (PoC):

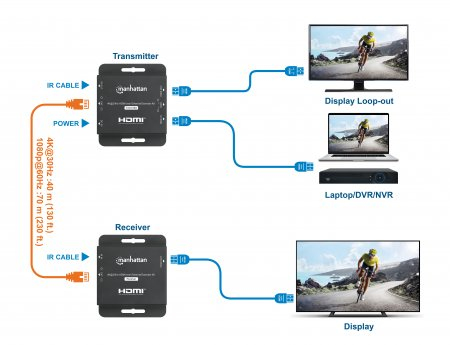

Extend your HDMI signals even in areas without free sockets. All you have to do is connect the included power supply to the transmitter module, which then supplies the receiver with power via the Ethernet cable. - Extends an HDMI signal up to 70 m from an HDMI player to a display via Cat6 Ethernet cable

• Resolutions up to 4K@30Hz at 40 m or up to 1080p@60Hz at 70 m
• Enables power supply for transmitter and receiver modules with a single power supply (connected to the transmitter module) through Power over Cable (PoC)
• Additional HDMI output on the transmitter module enables image checking and simplifies setup
• Includes infrared transmitter and receiver (IR) for remote control of the playback device
• Plug < Play - required no software installation or configuration
• Up to 10.2 Gbit/s at 340 MHz bandwidth
• EDID switch for automatic image optimization based on the display on the receiver module or the loop-out display on the transmitter module
• Supports 4:4:4 chroma subsampling
• Supports MJPEG video compression protocol
• Lossless, uncompressed LPCM 8-channel audio format and 7.1 surround sound
• Supports 3D video
• Suitable for gaming consoles such as PlayStation®, Xbox® and Blu-ray Players, set-top boxes, satellite receivers and more
• Gold-plated contacts for corrosion-free connections
• Robust, durable metal housing
• ESD protection up to 8 kV (air) and 6 kV (contact)
• Integrated mounting brackets for orderly attachment to the wall or ceiling
• HDCP 1.4 Compliant
• For additional range, use up to 15m HDMI cables with Ethernet channel on transmitter and receiver module; sold separately from Manhattan
• 3 year warranty Standards and certificates
• HDCP 1.4
• HDMI 1.4
• CE
• FCC
• RoHS
• UKCA
General:

• Supported resolutions: 480p/720p/1080i/1080p/4K (Ethernet cable with Cat6 or higher recommended for maximum range and resolution)
• Max. video bandwidth: 10.2 Gbit/s / 340 MHz

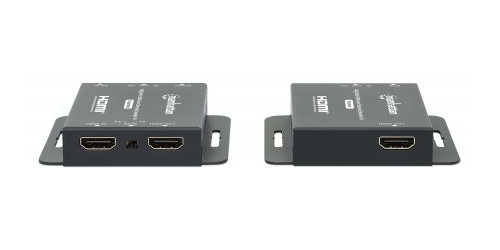

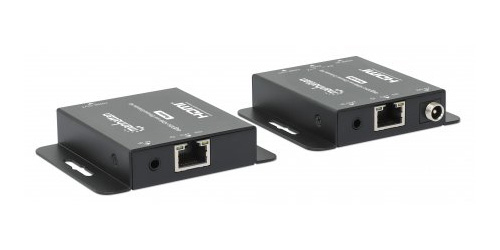

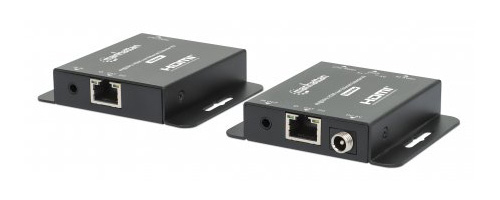

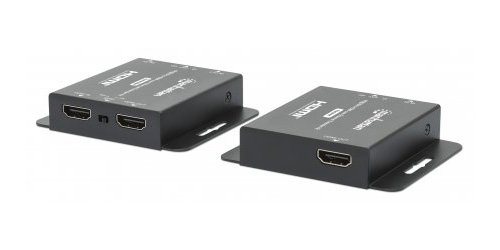

Ports/buttons

• Transmitter
• 2 x HDMI socket, 19-pin. (a loop-out output for local display)
• 1 x power socket, DC 12.0 V
• 1 x RJ45 socket
• 1 x 3.5 mm IR socket
• 1 x EDID switch
• Receiver
• 1 x HDMI socket, 19-pin
• 1 x power socket, DC 5.0 V
• 1 x RJ45 socket
• 1 x 3.5 mm IR socket
Electrical details

• One power supply, 1.2 m cable
• Input: 100.0 - 240.0 V AC, 50 - 60 Hz
• Output: 12.0 V DC; 1.0A
• Power consumption max.: 1.86W
Signal input/output

• Video input signal: 3.3V pp
• DDC input signal: 5.0V pp
• Output video signal: HDCP 1.4
Physical details

• Dimensions (L x W x H ): 80 x 69 x 17 mm
• Net weight: 262 g
• Gross weight: 510 g
• Housing: metal
Ambient conditions

• Ambient temperature during operation: 0 - 40°C
• Ambient temperature during operation: -20 - 60°C
• Humidity (non-condensing ): 20 - 90%

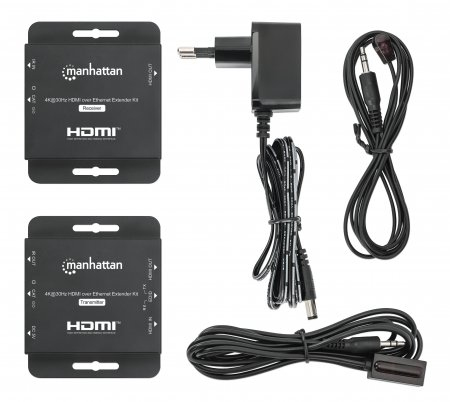

Scope of delivery:

• 4K@30Hz HDMI over Ethernet Extender Set
• power supply, 1.2 m cable
• Two IR connection cables, each 1.5 m long
• Instructions Color: Black Product dimensions: 80 (L) x 69 (W) x 17 (H) [mm]

Features
Type	AV transmitter & receiver
Maximum resolution	3840 x 2160 pixels
Cable types supported	Cat6
Maximum transfer distance	70 m
Supported video modes	480p, 720p, 1080i, 1080p
Bandwidth	10.2 Gbit/s
Material	Metal
HDCP version	1.4
Certification	CE FCC RoHS UKCA
EDID management
HDCP
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 90%
Packaging content
Cables included	AC, IR
Manual
Packaging data
Package width	69 mm
Package depth	80 mm
Package height	17 mm
Package weight	390 g
Package type	Box
Ports & interfaces
Connectivity technology	Wired
RJ-45 output ports	2
Number of HDMI outputs	3
HDMI version	1.4
Power
Power source type	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Output current	1 A
Power consumption (max)	1.86 W
Technical details
Compliance certificates	CE, RoHS, UKCA, Federal Communications Commission (FCC)
Weight & dimensions
Width	69 mm
Depth	80 mm
Height	17 mm
Weight	262 g

---
