Manhattan 158176 Parallel PCI Express card, 1 port, x1 lane
|
17,98 EUR |
|
|
( 21,40 EUR incl. VAT ) ≈ £15.00 | ≈ $20.08 plus delivery charges: 55,00 € |
|
| in stockinfo_outline | |
| End-Of-Life: | 12. Sep 2026 |
|---|---|
| Datasheet: | file_download Download |
| Lieske Part No.: | 332021 |
| Mfg Part No: | 158176 |
| Weight: | 0.15 kg |
Further Serial/Parallel from ManhattanFurther products in category Serial/Parallel
All products of Manhattan
Product information for Manhattan 158176:

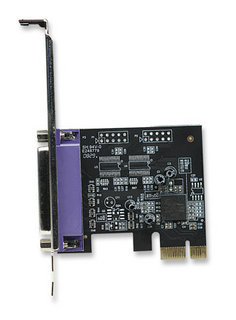

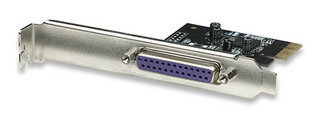

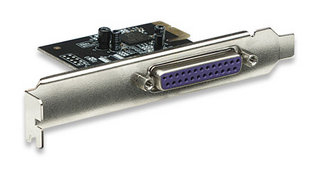

The Manhattan Parallel PCI Express card (manufacturer number 158176) is an interface card for expanding desktop computers with a parallel port. It enables the connection of devices communicating via a DB25 connector, such as older printers or industrial peripheral devices. The card uses the PCIe interface and is designed for use in standard and low-profile slots.
Applications
The card is suitable for work environments where parallel devices are still in use, for example in manufacturing, laboratories, or maintenance of older systems. It serves as a bridge between modern computers with PCIe interface and legacy devices communicating via a parallel port. Support for EPP and ECP modes extends application possibilities, especially for devices requiring higher data rates or bidirectional communication.
Functions and equipment in detail
The card features a DB25 connector as the parallel interface and supports the standards SPP, EPP, and ECP. The data transfer rate is up to 2.5 Mbit/s, which is sufficient for most parallel applications. The Plug & Play function simplifies installation, as no manual configuration is required. The card is compatible with PCI Express x1, x2, x4, x8, and x16 lanes, enabling flexible installation in various systems.
Technology explained simply
The card uses the PCI Express 1.1 specification, which allows a maximum bus speed of 2.5 Gbps. Although the card utilizes this bandwidth, the actual data rate on the parallel interface is limited to 2.5 Mbit/s, as this is the maximum rate of the parallel protocol. The card operates with a single 3.3 V supply, ensuring efficient power delivery. The use of an Oxford Serial chipset ensures stable and reliable data transmission.
Compatibility and accessories
The card is compatible with operating systems Windows 2000, XP, Server 2003, Vista, 7 (32- and 64-bit), and Windows 8. Mac compatibility is not provided. The card is designed for use in desktop computers equipped with a free PCI Express slot. Installation requires a CD drive, as drivers and manual are delivered on a CD.
Mounting and installation
The card is inserted into a free PCI Express slot of the computer and is suitable for standard and low-profile slots. The Plug & Play function enables easy installation without manual configuration. The delivery includes the Parallel PCI Express card, a low-profile and a standard slot bracket, a manual, and a driver CD.
Advantages in operation
The card offers a reliable and simple way to connect parallel devices to modern computers. Support for multiple parallel modes (SPP, EPP, ECP) increases flexibility. The Plug & Play function and compatibility with various PCI Express lanes simplify integration into existing systems. The card is suitable for use in office environments and industrial applications where parallel interfaces are still required.
Applications
The card is suitable for work environments where parallel devices are still in use, for example in manufacturing, laboratories, or maintenance of older systems. It serves as a bridge between modern computers with PCIe interface and legacy devices communicating via a parallel port. Support for EPP and ECP modes extends application possibilities, especially for devices requiring higher data rates or bidirectional communication.
Functions and equipment in detail
The card features a DB25 connector as the parallel interface and supports the standards SPP, EPP, and ECP. The data transfer rate is up to 2.5 Mbit/s, which is sufficient for most parallel applications. The Plug & Play function simplifies installation, as no manual configuration is required. The card is compatible with PCI Express x1, x2, x4, x8, and x16 lanes, enabling flexible installation in various systems.
Technology explained simply
The card uses the PCI Express 1.1 specification, which allows a maximum bus speed of 2.5 Gbps. Although the card utilizes this bandwidth, the actual data rate on the parallel interface is limited to 2.5 Mbit/s, as this is the maximum rate of the parallel protocol. The card operates with a single 3.3 V supply, ensuring efficient power delivery. The use of an Oxford Serial chipset ensures stable and reliable data transmission.
Compatibility and accessories
The card is compatible with operating systems Windows 2000, XP, Server 2003, Vista, 7 (32- and 64-bit), and Windows 8. Mac compatibility is not provided. The card is designed for use in desktop computers equipped with a free PCI Express slot. Installation requires a CD drive, as drivers and manual are delivered on a CD.
Mounting and installation
The card is inserted into a free PCI Express slot of the computer and is suitable for standard and low-profile slots. The Plug & Play function enables easy installation without manual configuration. The delivery includes the Parallel PCI Express card, a low-profile and a standard slot bracket, a manual, and a driver CD.
Advantages in operation
The card offers a reliable and simple way to connect parallel devices to modern computers. Support for multiple parallel modes (SPP, EPP, ECP) increases flexibility. The Plug & Play function and compatibility with various PCI Express lanes simplify integration into existing systems. The card is suitable for use in office environments and industrial applications where parallel interfaces are still required.
| Features | |
| Supports EPP and ECP | |
| Plug and Play | |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
| Other features | |
| Data transfer rate | 2.5 Mbit/s |
| Connectivity technology | Wired |
| Compatible operating systems | Windows 2000/XP/2003/Vista/7 32/64 bit |
| Mac compatibility | |
| Ports & interfaces | |
| Host interface | PCIe |
| Parallel ports quantity | 1 |
