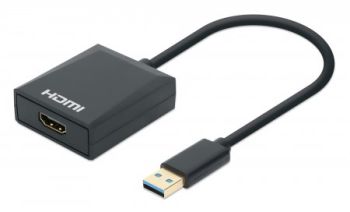

Manhattan 153690
1080p USB-A to HDMI adapter converter with USB 3.0 (USB 3.2 Gen 1) Type A male to HDMI female, 1080p@60Hz, black
|
-21% 35,40 EUR 44,72 EUR |
|
|
( 42,13 EUR incl. VAT ) ≈ £29.63 | ≈ $39.61 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline | |
| End-Of-Life: | 13. May 2026 |
|---|---|
| Datasheet: | file_download Download |
| Lieske Part No.: | 2026355 |
| Mfg Part No: | 153690 |
| UPC/EAN: | 766623153690 |
| Weight: | 0.036 kg |
Product information for Manhattan 153690:
USB 3.0 to HDMI adapter / converter for connecting a laptop, MacBook, Ultrabook or desktop PC to an HDMI monitor, TV or projector
This active Manhattan HDMI adapter connects notebook or computer to a monitor, television or projector with HDMI interface via their USB-A port. Replace your notebook display with a larger screen or expand it to a second display for multitasking. An affordable and convenient solution to expand your Mac's video output capabilities® or PCs. The adapter works like an external graphics card, meaning you can connect multiple adapters to your USB-A ports and add more displays.
An HDMI adapter for on the go< h3>
The very compact housing makes this USB to HDMI adapter the ideal travel companion. With dimensions of just 52 x 45 x 16 mm, it fits easily into the outer compartments of notebook bags. This means you have your mini workstation at hand anywhere and at any time. - For easily connecting a USB-A device to an HDMI display
This active Manhattan HDMI adapter connects notebook or computer to a monitor, television or projector with HDMI interface via their USB-A port. Replace your notebook display with a larger screen or expand it to a second display for multitasking. An affordable and convenient solution to expand your Mac's video output capabilities® or PCs. The adapter works like an external graphics card, meaning you can connect multiple adapters to your USB-A ports and add more displays.
An HDMI adapter for on the go< h3>
The very compact housing makes this USB to HDMI adapter the ideal travel companion. With dimensions of just 52 x 45 x 16 mm, it fits easily into the outer compartments of notebook bags. This means you have your mini workstation at hand anywhere and at any time. - For easily connecting a USB-A device to an HDMI display
- Resolutions up to Full HD 1080p@60Hz (1980×1080)
- Converts a USB 3.2 Gen 1 signal (formerly USB 3.0) into an HDMI signal with video and audio
- Ideal for connecting an HDMI display to a PC or laptop without an HDMI port, or for an additional HDMI monitor if the HDMI port already in use
- Supports Extended or Duplicated display modes on Windows® and Duplicated on Mac®
- Functions as an external graphics card, allowing the connection of up to two external displays to your system (requires one adapter per display)
- Integrated, durable 15 cm Connection cable
- powered via USB; no external power supply required
- Backwards compatible with USB 2.0
- Mobile, compact and lightweight design, fits comfortably in accessory compartments of notebook cases
- HDCP 1.4 compliant
- Plug < Play installation; Compatible with Windows® and macOS®
- 3 year warranty Standards and certificates
- USB 3.2 Gen 1
- HDCP 1.4
- CE
- FCC
- RoHS
- REACH
- UKCA connectors
- 1 x 9-pin. USB-A connector
- 1 x 19-pin HDMI socket Physical details
- Dimensions (L x W x H): 234 x 45 x 16 mm
- Net weight: 36 g
- Gross weight:64 g
- Cable length: 15 cm
- Cable diameter: AWG 28
- Plastic housing Ambient conditions
- Ambient temperature during operation: -20 - 45°C
- Ambient temperature during storage: -20 - 80°C
- Humidity (non-condensing): 5 - 90% RH System requirements:
- Windows 10 and higher, macOS 10.14 and higher or Android 5.1 and higher Scope of delivery:
- 1080p USB-A to HDMI adapter
- Instructions This product is available in the following versions:
- #153690 - USB-A to HDMI
- #151788 - USB-C to HDMI, 4K@30Hz
- #153416 - USB-C to HDMI, 4K@60Hz, PD port Color: Black Product dimensions: 234 (L) x 45 (W) x 16 (H) [mm]
| Design | |
| Product colour | Black |
| Housing material | Plastic |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 45 °C |
| Storage temperature (T-T) | -20 - 80 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Packaging data | |
| Package weight | 64 g |
| Performance | |
| HDMI ports quantity | 1 |
| HDCP version | 1.4 |
| Certification | CE FCC RoHS REACH UKCA |
| HDCP | |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 11, Windows 7, Windows 8.1 |
| Mac operating systems supported | MacOS |
| Weight & dimensions | |
| Width | 45 mm |
| Depth | 234 mm |
| Height | 16 mm |
| Weight | 36 g |
| USB cable length | 0.15 m |
Please note...
We have listed this article as 'end-of-life', which means that it will only be sold until it is completely sold out ! Please mind that we cannot guarantee you, you will receive the article, although it may be betokened as available. You can find the date from when the article was marked end-of-life to the top.
Questions & answers
What is the delivery time of Manhattan 153690 1080p USB-A to HDMI adapter converter with USB 3.0 (USB 3.2 Gen 1) Type A male to HDMI female, 1080p@60Hz, black?
The article Manhattan 153690 1080p USB-A to HDMI adapter converter with USB 3.0 (USB 3.2 Gen 1) Type A male to HDMI female, 1080p@60Hz, black is currently in stock
According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Manhattan 153690 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Manhattan 153690 1080p USB-A to HDMI adapter converter with USB 3.0 (USB 3.2 Gen 1) Type A male to HDMI female, 1080p@60Hz, black always at the best possible price. We can give you a discount of 2% on Manhattan 153690 1080p USB-A to HDMI adapter converter with USB 3.0 (USB 3.2 Gen 1) Type A male to HDMI female, 1080p@60Hz, black if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
