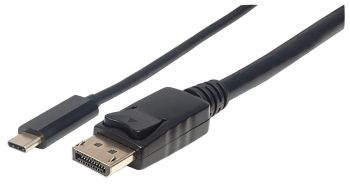

Manhattan 152471
USB-C to DisplayPort adapter cable Converts the DP Alt Mode signal to a DisplayPort 4K@60Hz output signal, 1 m, black
|
18,00 EUR 18,37 EUR |
|
|
( 21,42 EUR incl. VAT ) ≈ £15.07 | ≈ $20.14 plus delivery charges: 55,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| End-Of-Life: | 13. May 2026 |
|---|---|
| Datasheet: | file_download Download |
| Lieske Part No.: | 1435358 |
| Mfg Part No: | 152471 |
| UPC/EAN: | 766623152471 |
| Weight: | 0.047 kg |
Product information for Manhattan 152471:
The Manhattan USB-C to DisplayPort adapter cable converts an AV signal from USB-C to DisplayPort format, enabling the Connection to flat screens and projectors. The playback device is not limited to PCs and notebooks: If your smartphone or tablet supports DP Alt Mode, you can also use this as a playback device, ideal for example. B. Show photos, videos and presentations from your cell phone on a large display. Visually, you don't have to make any compromises - Razor-sharp 4K UHD at 60 Hz is possible. - For connecting a device with USB Type C DP Alternate Mode to a display, monitor or projector with a DisplayPort interface
- Delivers a clear, sharp image in a resolution of up to 3840x2160 (4K/UHD) at 60Hz and a widescreen ratio of 21:9
- Ideal for connecting DisplayPort displays to DP Alt Mode-enabled smartphones, tablets, ultrabooks, laptops and more
- Only suitable for USB Type C devices with DP Alt Fashion; Thunderbolt 3 compatible
- Slim design for less cable clutter on the desk and the compact format makes it ideal for on the go
- Also available as a variant with a 2 m cable length, item number 152464, further information on manhattanproducts.com
- Power supply via USB – no external power supply required
- Unidirectional design, can only connect from a USB-C source to a DP screen
- 3 year warranty Standards and certificates
- CE
- FCC
- RoHS
- USB 3.2
- HDCP
- DP Alt Mode
- DisplayPort 1.2 General
- Supports lane transfer rates of 5.4 Gbit/s (HBR2), 2.7 Gbit/s High Bit Rate (HBR) and 1.62 Gbit/s Reduced Bit Rate (RBR)
- Resolution: up to 3840x2160 at 60Hz
- Audio and video output via DP
- Powered by USB; no external power supply required
- Supports HDCP pass-through ports
- Input: USB 3.2 Type C plug
- Output: DP plug Physical details
- Adapter cable: 2 m
- Weight: 0.09 kg Ambient conditions
- Operating temperatures: 0 – 40°C
- Storage temperature: -20 – 60°C
- Humidity (non-condensing): 0 – 96% System requirements:
- DP Alt Mode capable devices Scope of delivery:
- USB Type C to DisplayPort adapter cable Color: Black Product dimensions: 1000 (L) x 20 (W) x 10 (H) [mm]
| Certificates | |
| Compliance certificates | RoHS |
| Certification | CE FCC USB 3.1 DP Alt Mode |
| Features | |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Cable length | 1 m |
| Connector 1 | USB Type-C |
| Connector 2 | DisplayPort |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Maximum resolution | 3840 x 2160 pixels |
| Data transfer rate | 5.4 Gbit/s |
| Maximum refresh rate | 60 Hz |
| Product colour | Black |
| HDCP | |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 96% |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Packaging data | |
| Package type | Polybag |
| Weight & dimensions | |
| Weight | 90 g |
Questions & answers
What is the delivery time of Manhattan 152471 USB-C to DisplayPort adapter cable Converts the DP Alt Mode signal to a DisplayPort 4K@60Hz output signal, 1 m, black?
The article Manhattan 152471 USB-C to DisplayPort adapter cable Converts the DP Alt Mode signal to a DisplayPort 4K@60Hz output signal, 1 m, black is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Manhattan 152471 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Manhattan 152471 USB-C to DisplayPort adapter cable Converts the DP Alt Mode signal to a DisplayPort 4K@60Hz output signal, 1 m, black always at the best possible price. We can give you a discount of 2% on Manhattan 152471 USB-C to DisplayPort adapter cable Converts the DP Alt Mode signal to a DisplayPort 4K@60Hz output signal, 1 m, black if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
