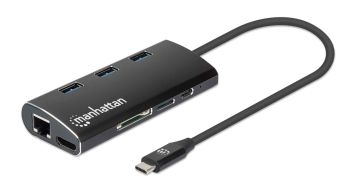

Manhattan 152440
USB 3.2 Gen 1 USB-C multiport adapter
|
-17% 44,91 EUR 54,18 EUR |
|
|
( 53,44 EUR incl. VAT ) ≈ £37.59 | ≈ $50.25 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline | |
| End-Of-Life: | 13. May 2026 |
|---|---|
| Datasheet: | file_download Download |
| Lieske Part No.: | 1531309 |
| Mfg Part No: | 152440 |
| UPC/EAN: | 766623152440 |
| Weight: | 0.08 kg |
Product information for Manhattan 152440:
USB-C male to HDMI female (4K@30Hz), three USB-A ports on the top, USB-C Power Delivery port (PD 3.0), Gigabit RJ45 port and SD/MicroSD card reader, aluminum, black
- Rugged, portable and versatile USB-C hub with connections for network, display, multiple USB devices and memory cards
- One 4K/UHD HDMI port, three USB 3.2 Gen 1 Type-A ports on the top, USB -C Power Delivery port (PD 3.0) with up to 100W (20V / 5A), Gigabit Ethernet port and SD/MicroSD card reader
- Supports 4K@30Hz resolution and Mirrored and Extended display modes
- Up to 5 Gbit/s transfer rate on the USB ports according to USB 3.2 Gen 1 specification
- Gigabit speed (10/100/1000 Mbit/s) on the Ethernet port
- Up to 80 Mbit/s transfer rate and automatic card recognition on the SD - and MicroSD ports
- Supports Power Delivery up to 100W (20V/5A) for all connected devices
- Supports USB Power Delivery (PD) feature up to 100W; requires external PD charger - available from Manhattan
- Robust aluminum housing ideal for the desk and on the go
- Compatible with all USB-C DP Alt Mode devices
- Plug & Play
- Flexible use with integrated 30 cm cable
- 3 year guarantee Standards and Certificates:
- USB 3.1 Gen 1
- HDMI 1.4
- HDCP 1.4
- CE
- FCC
- RoHS2
- WEEE General
- Video resolutions:
- 640 x 480
- 800 x 600
- 1024 x 768
- 1920 x 1080 (1080p@60Hz)
- 1920 x 1200
- 3840 x 2160p at 30 Hz (4K@30Hz)
- USB-A ports: 5 Gbit/s
- Ethernet port: 10/100/1000 Mbit/s
- Supported memory cards: SD / MicroSD / SDHC / SDXC / EXTREME SD / EXTREME II SD / EXTREME III SD / ULTRA SD / ULTRA II SD / ULTRA II SD P PLUS / SD-ULTRA-X / ULTRA SPEED SD / SD PRO / SD ELITE PRO / HS SD / MMC / MMC 4.0 / HS MMC / HS RS MMC / RS MMC / RS MMC 4.0 / MMC Mobile; up to 128 GB
- Transfer rate: up to 80 Mbit/s
- AWG 34
- Power supply via USB
- USB-C PD charging socket: 100 W (20 V at 5 A)
- Mylar and aluminum shielding
- Voltage strength: 300 V DC
- Insulation resistance: 10 Mohm
- Line resistance: 5 O Connections
- 1 x USB-C 24-pin. Plug outputs:
- 1 x 19-pin HDMI socket
- 1 x RJ45 socket 10/100/1000 Mbit/s
- 3 x USB-A 4-pin. Socket
- 1 x SD card slot
- 1 x MicroSD card slot
- 1 x 24-pin. USB Type C Power Delivery socket Physical details
- Dimensions: 105 x 45 x 18 mm
- Cable length: 30 cm
- Weight: 80 g
- Housing: Aluminum Environmental conditions
- Operating temperature: 0 - 45°C
- Storage temperature: -10 - 70°C
- Humidity (non-condensing): 10 - 90% System requirements:
- USB-C DP Alt Mode capable devices
- Windows XP/Vista/7/8.1/10
- Linux
- Mac OS 10.7.1 or higher Scope of delivery
- USB 3.2 Gen 1 USB-C Multiport Adapter Quick Guide Color: Black Product dimensions: 105 (L) x 45 (W) x 18 (H) [mm]
input:
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
| Network | |
| Ethernet LAN (RJ-45) ports | 1 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Packaging content | |
| Manual | |
| Performance | |
| Compatible memory cards | MicroSD (TransFlash), SD |
| Product colour | Black |
| Housing material | Aluminium |
| Certification | CE, FCC, RoHS2, WEEE |
| Card reader integrated | |
| LED indicators | |
| Plug and Play | |
| Ports & interfaces | |
| Host interface | USB Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB Power Delivery up to | 100 W |
| HDMI ports quantity | 1 |
| USB Power Delivery (USB PD) | |
| Power | |
| Power supply type | USB |
| Output voltage | 20 V |
| Output current | 5 A |
| Software | |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8.1, Windows Vista, Windows XP |
| Mac operating systems supported | Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Linux operating systems supported | |
| Technical details | |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Width | 45 mm |
| Depth | 105 mm |
| Height | 15 mm |
| Weight | 80 g |
